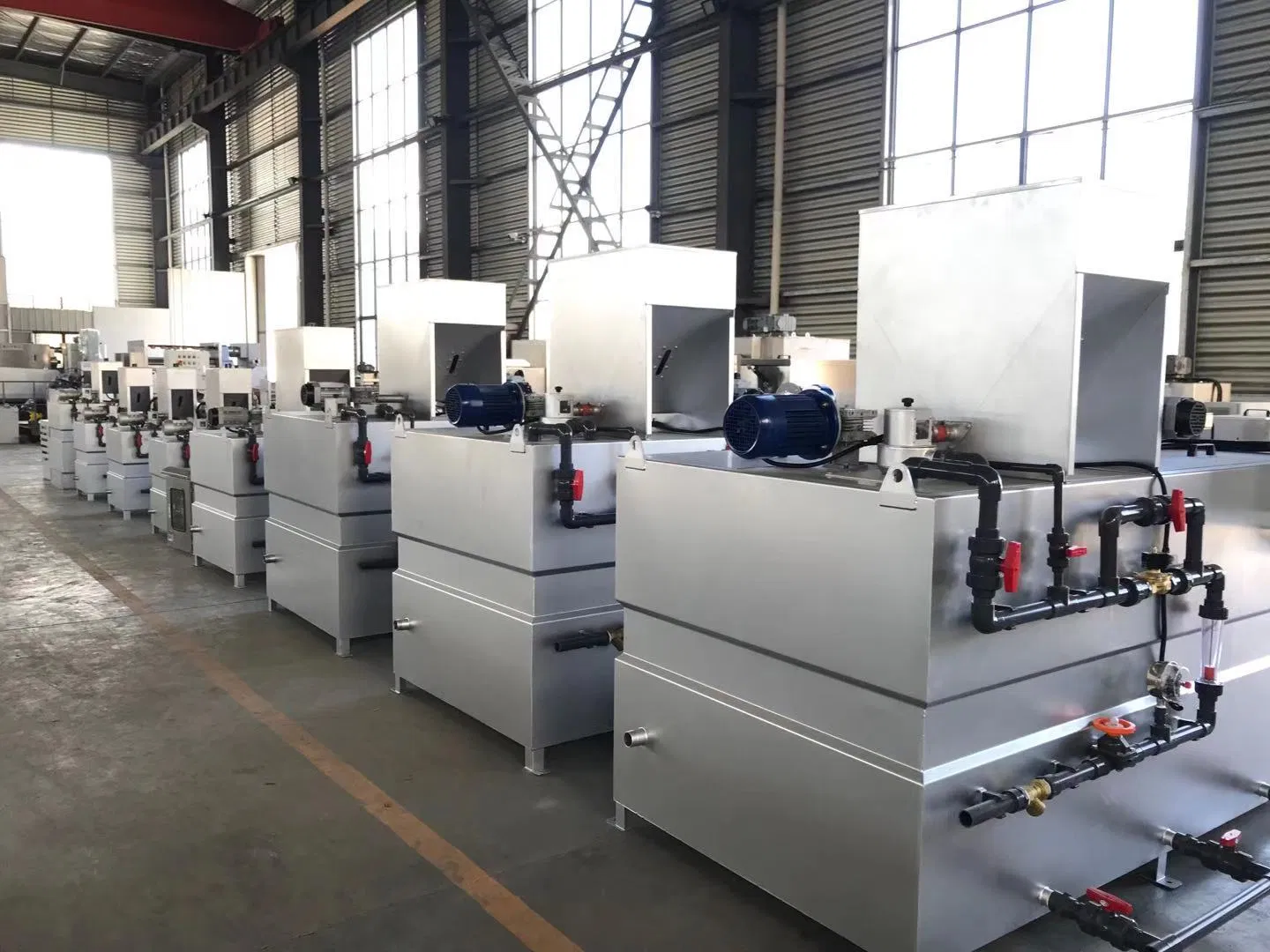

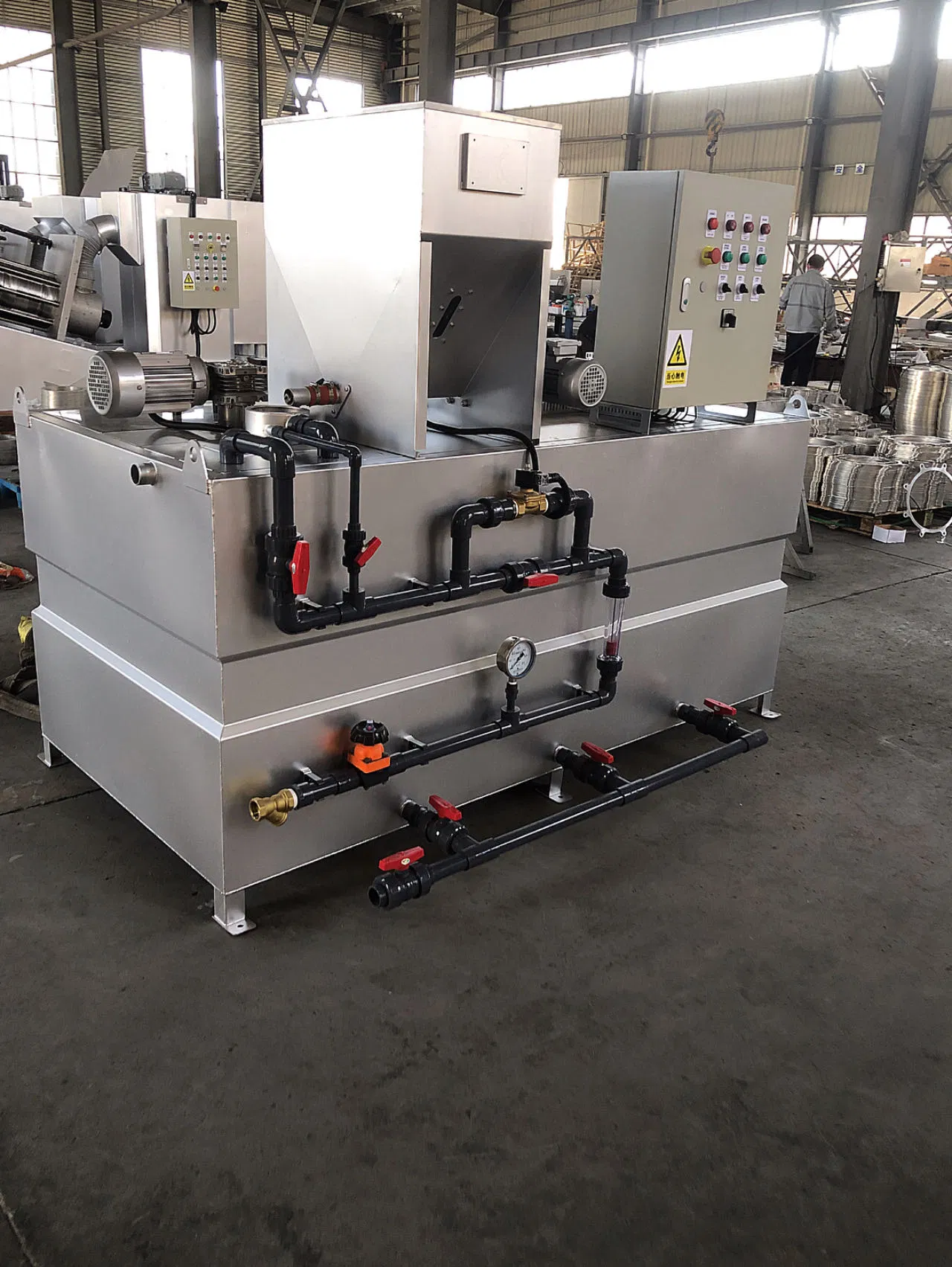

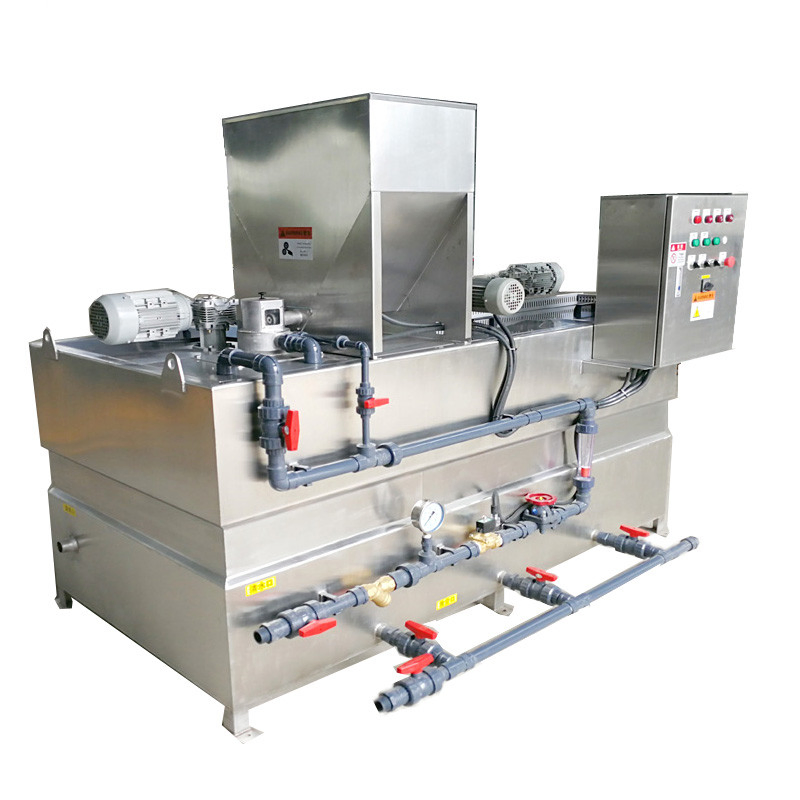

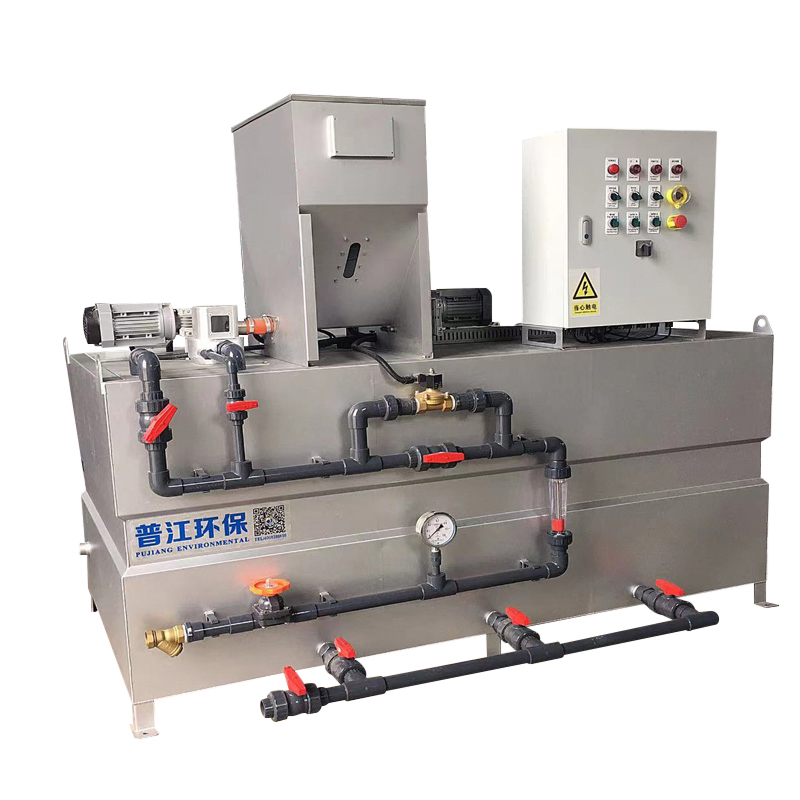

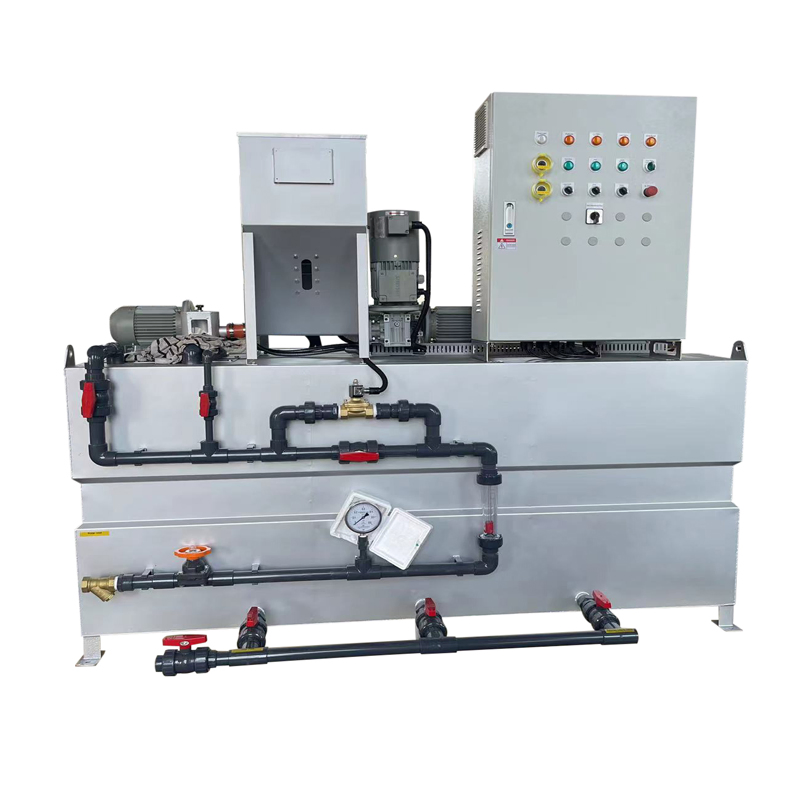

The automatic polymer dosing machine is widely used in waste water treatment. It can mix compounds continuously and effectively, ensuring the production of a reactive polymer solution.

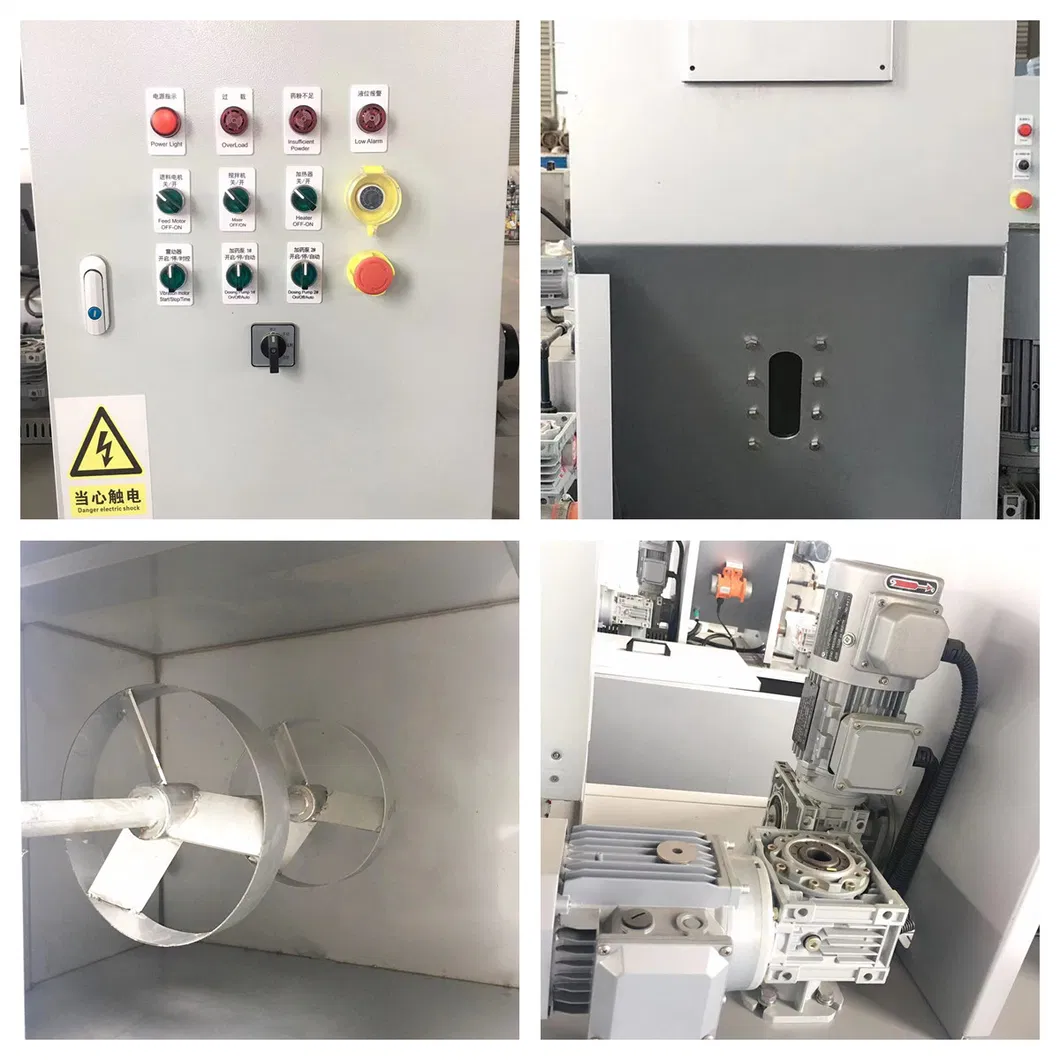

The system integrates several key components: a dry powder hopper, infiltration device, tank, level controller, mixer, water inlet pipe, and electric cabinet.
| Model Item | YTH 500 | YTH 1000 | YTH 1500 | YTH 2000 | YTH 3000 | YTH 4000 | YTH 5000 | YTH 6000 |
|---|---|---|---|---|---|---|---|---|
| Capacity (L/h) | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Power (kw) | 0.94 | 2.45 | 2.45 | 2.62 | 4.89 | 4.89 | 4.89 | 4.89 |
| PAM dosage (kg/h) | 1~5 | 2~10 | 2~10 | 3~15 | 3.5~20 | 3.5~20 | 4.5~25 | 4.5~25 |
| Water inlet (m³/h) | 0.3~1.5 | 0.6~3 | 0.9~4 | 1.2~6 | 2.0~10 | 2.4~12 | 2.4~12 | 2.4~12 |
| Length (L) mm | 1370 | 2000 | 2130 | 2200 | 2400 | 2720 | 2700 | 2970 |
| Width (B) mm | 680 | 1000 | 1070 | 1200 | 1300 | 1400 | 1500 | 1600 |
| Height (H) mm | 1485 | 1770 | 1810 | 1970 | 2270 | 2355 | 2222 | 2322 |
| N.W. (kg) | 250 | 400 | 490 | 550 | 700 | 770 | 960 | 1050 |
Our facility maintains a strong manufacturing capacity with first-class workshops and advanced processing equipment. We enforce a complete process control and management system, from research and development to raw material procurement, manufacturing, and final quality inspection.
We focus on environmental protection equipment, including sludge treatment and sewage treatment solutions. Our product range includes screw press sludge dewatering machines, polymer dosing units, screw conveyors, and solid-liquid separators. These solutions are widely applied in municipal sewage, petrochemical, food and beverage, aquaculture, and chemical pharmacy industries worldwide.
