The pig manure dryer can transform fresh manure with a moisture content of approximately 65% (or other slag) into an odorless granular product with a moisture content of less than 13% through a systematic process of feeding, high-temperature drying, dust removal, and cooling. This end product serves as a vital raw material for organic fertilizers or animal feed.
Key advantages include exceptional operational flexibility, low drying costs, strong adaptability, and high reliability. The system handles large capacities with low fuel consumption, featuring high resistance to overload and a smooth-running cylinder for rapid drying via high-temperature hot air.

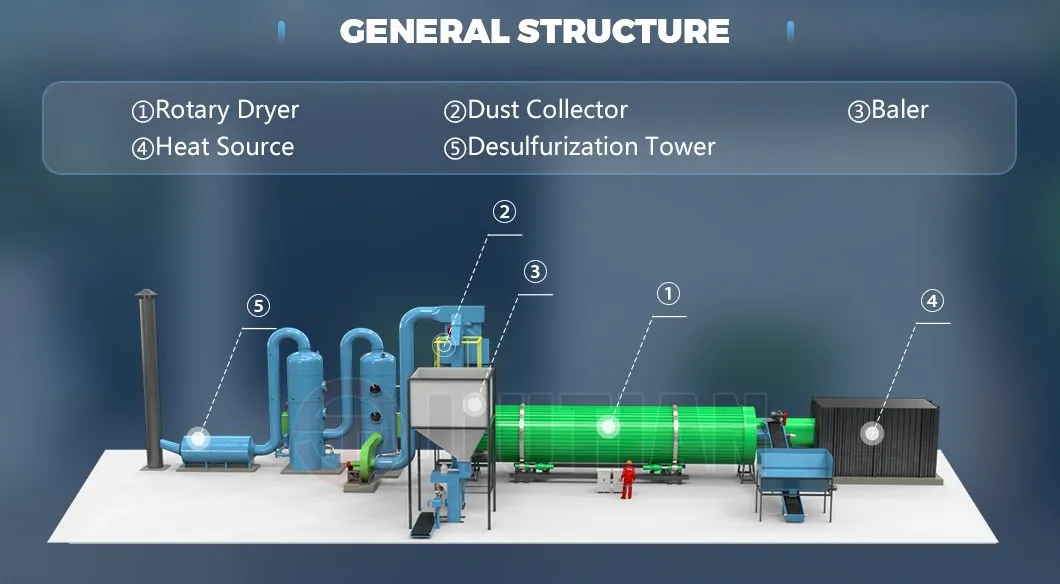

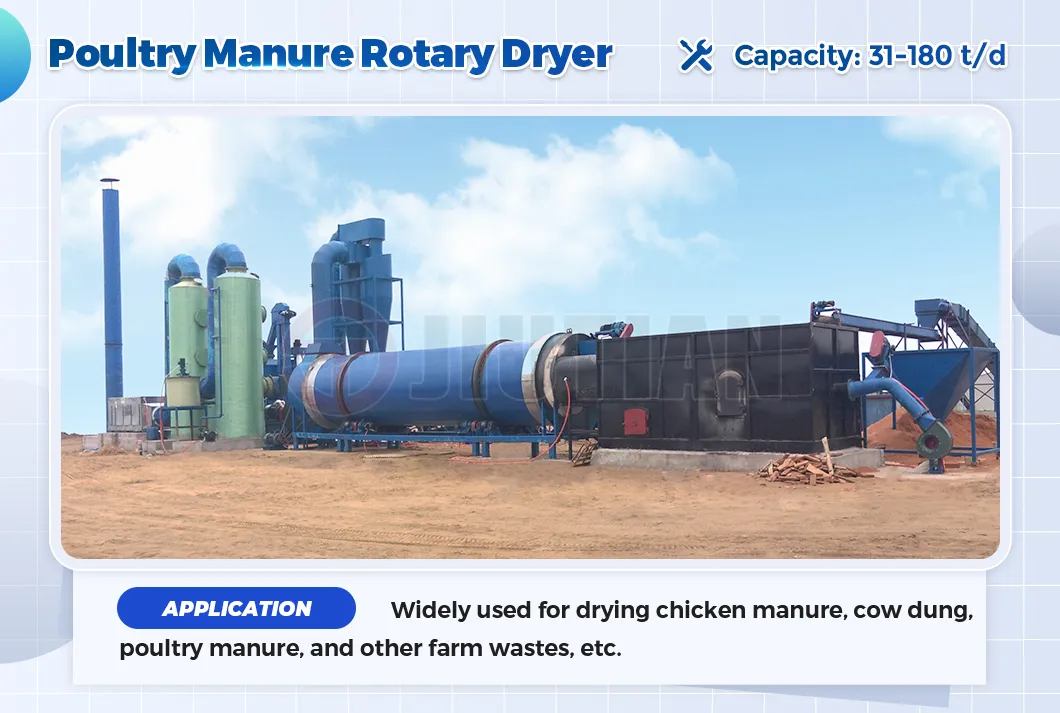

The system consists of a heat source, feeder, rotary drum, discharger, material crushing device, induced draft fan, and unloader.

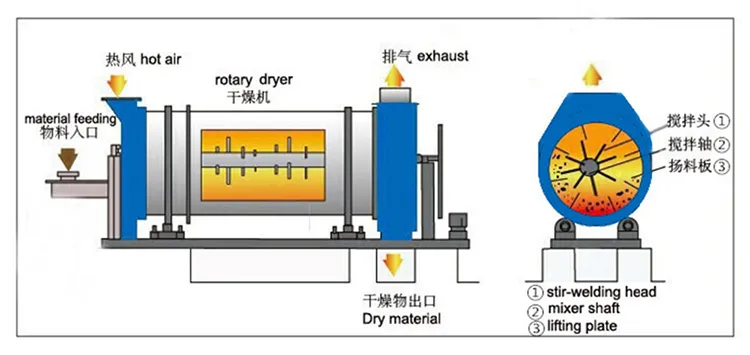

Material Flow: Wet material is dehydrated to 65% then fed into the mixing drum. Internal flights shower the material through hot air streams to maximize heat transfer efficiency. A specialized cleaning device prevents material from sticking to the drum walls.
Air Stream: Air is heated in a furnace to 600-850ºC. This hot air evaporates moisture as it flows through the drum, eventually discharging at 55-65ºC after triple-layer heat transfer. Dust and moisture are purified via cyclone and wet collectors.
| Model (JTJG) | 1208 | 1408 | 1610 | 2010 | 2210/3 | 2510/3 | 2512/3 |
|---|---|---|---|---|---|---|---|
| Input Capacity (t/h) | 1.82 | 2.18 | 3.15 | 3.81 | 5.51 | 6.33 | 7.60 |
| Output Capacity (t/h) | 1.07 | 1.28 | 1.85 | 2.24 | 3.24 | 3.72 | 4.47 |
| Vaporization (t/h) | 0.75 | 0.8 | 1.3 | 1.57 | 2.27 | 2.61 | 3.13 |
| Total Power (KW) | 32 | 40 | 55 | 95 | 100 | 125 | 145 |
| Plant Area (M) | 5*15 | 5*15 | 6*16 | 8*18 | 8*20 | 10*20 | 10*22 |

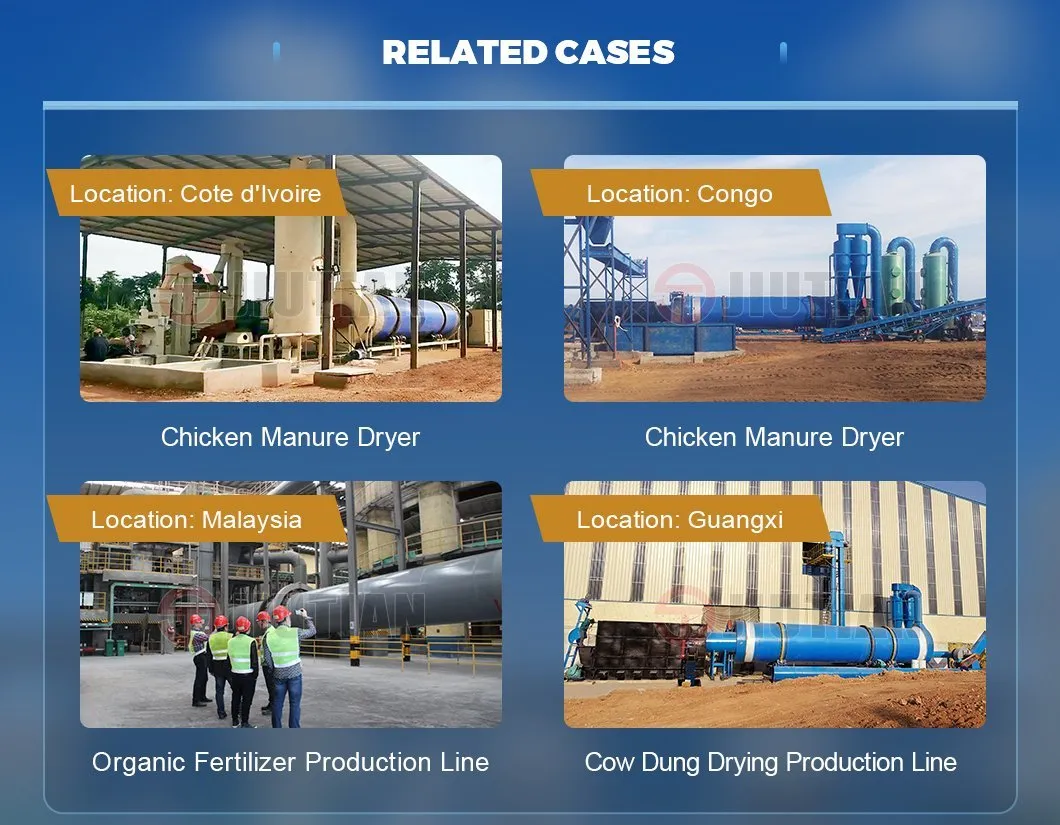

Our drying solutions cover a wide range of materials including coal slime, biomass, organic fertilizer, sludge, and coconut fiber. With international projects established in the UK, Russia, Greece, Italy, Israel, Morocco, Australia, India, Vietnam, and the United States, our technology meets rigorous international standards.
A1: The system can reduce moisture from approximately 65% down to less than 13%, making it suitable for granular fertilizer production or animal feed.
A2: Yes. The high-temperature drying process includes disinfection, sterilization, and decomposition, resulting in an odorless and safe organic product.
A3: Yes, the final moisture content is typically around 15% but can be adjusted according to your specific requirements.
A4: The dryer can be equipped with various heat sources, including hot air furnaces reaching temperatures of 600-850ºC to ensure rapid evaporation.
A5: Absolutely. It is highly versatile and suitable for chicken manure, cow dung, sludge, bean dregs, starch residue, cassava residue, and other biomass materials.
A6: The dryer is equipped with a specialized drum cleaning device and internal flights that keep the material moving and prevent buildup near the wet material discharge.
