Sludge Drying Equipment, Sludge Dryer, Sludge Dewatering Machine, Sludge Drying System

1 / 5

Sludge Drying Equipment, Sludge Dryer, Sludge Dewatering Machine, Sludge Drying System

Customization:	Available
After-sales Service:	Engineers Available for Technology Assistence
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO.:

SC/KC

Type:

Sludge Dryer

Method:

Physical Treatment

Usage:

Industrial, Agriculture, Hospital, Municipal Sewage, Petrolchemical, Slaughter

Certificate:

ISO9001

Transport Package:

Wooden Case

Trademark:

PJEP

Production Capacity:

3000 Sets/Year

Package Size:

690.00cm * 150.00cm * 140.00cm

Gross Weight:

1500.000kg

Product Description

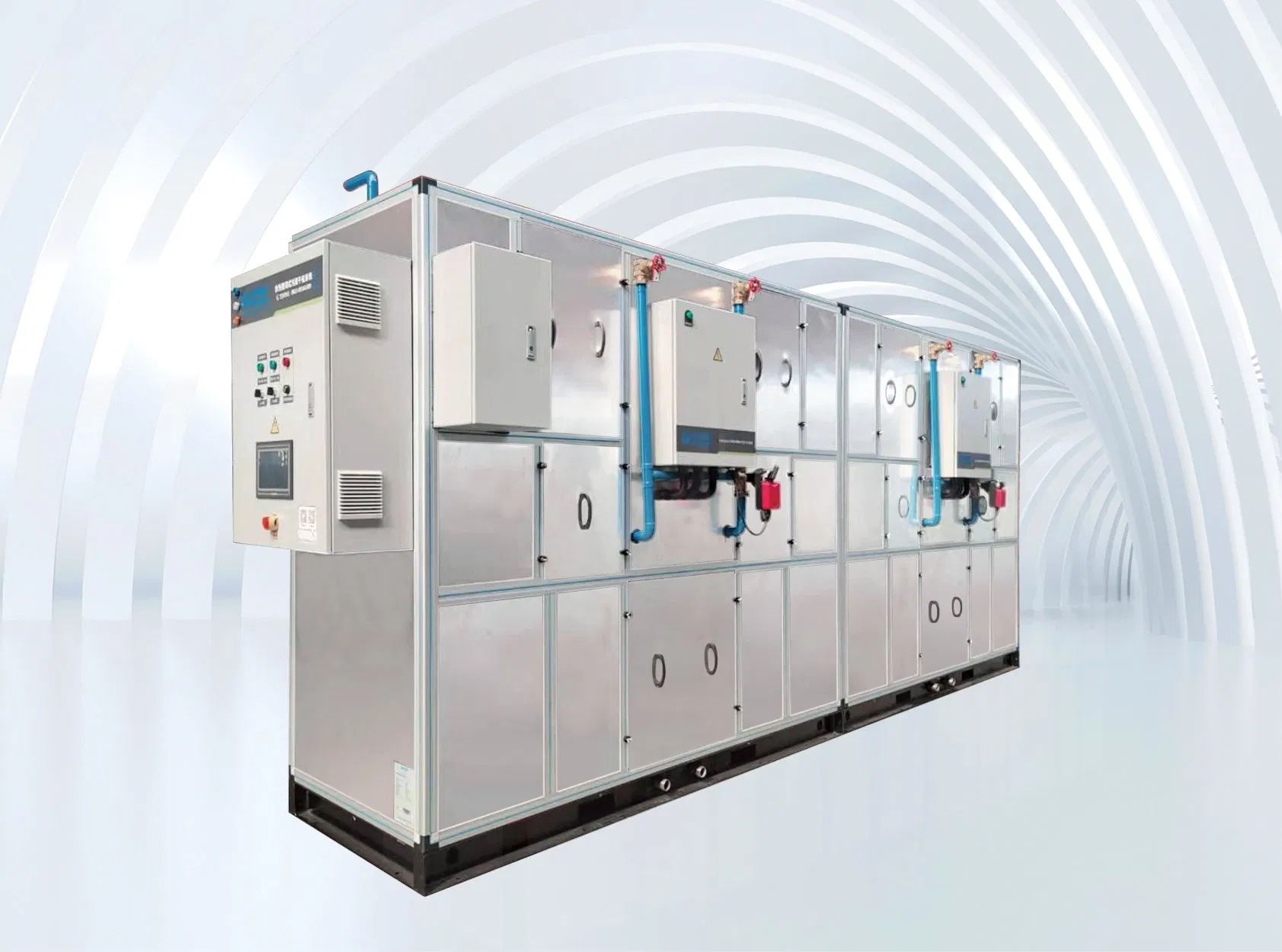

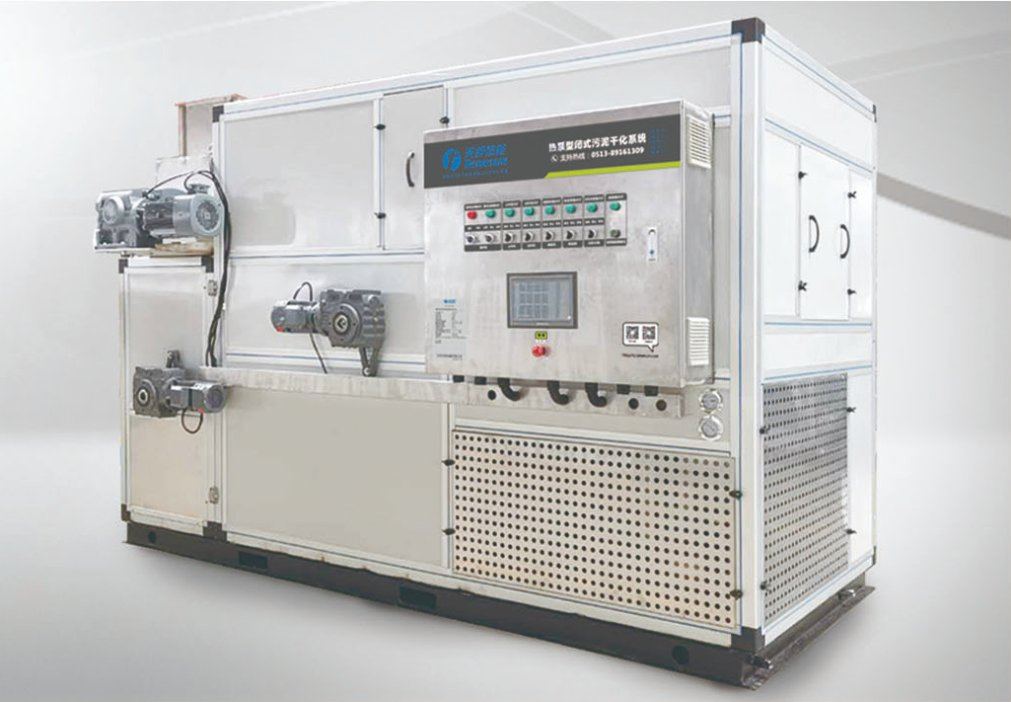

Heat pump-type closed sludge drying system is a standardized sludge drying solution. We employ a complex combination of powerful dehumidification and targeted air pathways to obtain consistent and reproducible drying results. The system operates in fully automatic mode through electronic humidity control, completely independent of environmental factors.

Core Characteristics

Deep Dehydration & Infinite Reduction Multi-stage energy comprehensive treatment with strong drying reduction capacity. Reduction can reach more than 80%, breaking traditional technical bottlenecks of high water content.

Efficient Dehumidifying Innovative design saves over 50% in costs compared to traditional low-temperature drying equipment. Dehydration can reach more than 4 kg per kilowatt-hour.

Closed Circulation & Environment Friendly Fully closed design with no odor discharge. No expensive deodorization systems required. Low condensate COD and simple treatment.

Safety & Explosion-Proof Low-temperature operation (outlet materials < 48°C) ensures no dust or explosion risks. No need for secondary cooling; materials can be directly stored.

Flexible Operation Ranges from 3kg-1000kg per hour. Adjustable drying time and temperature for accurate moisture control.

Technical Parameters

Model	KC-20IIJ4dX	SC-25IIJ4dX	KC-40IIJ4dX	SC-50IIJ4dX	KC-80IIJ4dX	SC-100IIJ4dX
Standard water reduction (kg/24h)	480	600	960	1200	1920	2400
Water removal capacity (kg/h)	20	25	40	50	80	100
Operation power (kW)	6	8	12	14	23	26
Drying temperature	48~56ºC (return) / 65~80ºC (deliver)
Cryogen	R134a

Manufacturing Capability

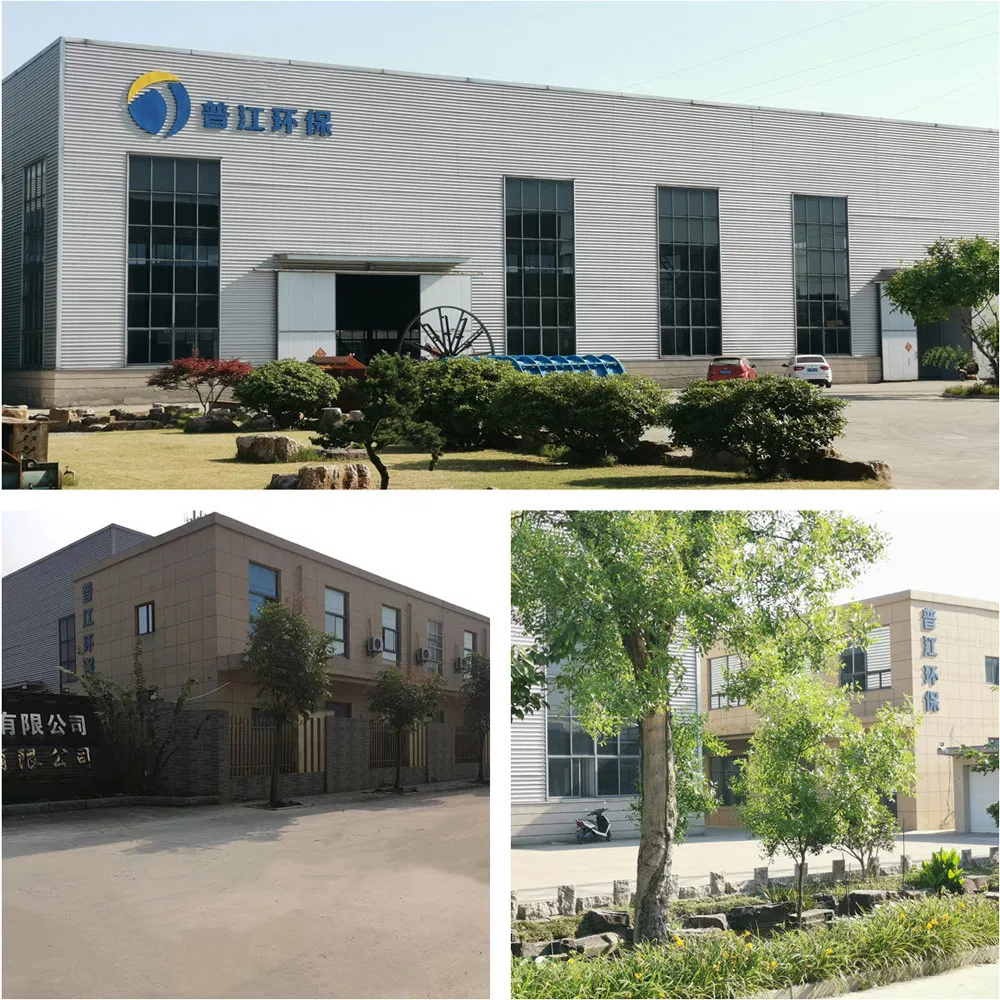

Our manufacturing facility possesses strong production capacity with first-class workshops and advanced processing facilities. We maintain a complete process control and management system from R&D and raw material procurement to manufacturing and quality inspection. We focus on environmental equipment including sludge treatment and sewage treatment systems.

Our equipment range covers: screw press sludge dewatering machines, polymer dosing machines, screw conveyors, sludge hoppers, and solid-liquid separators. These products are widely used in municipal sewage, petrochemical, food, aquaculture, pharmacy, and textile industries.
