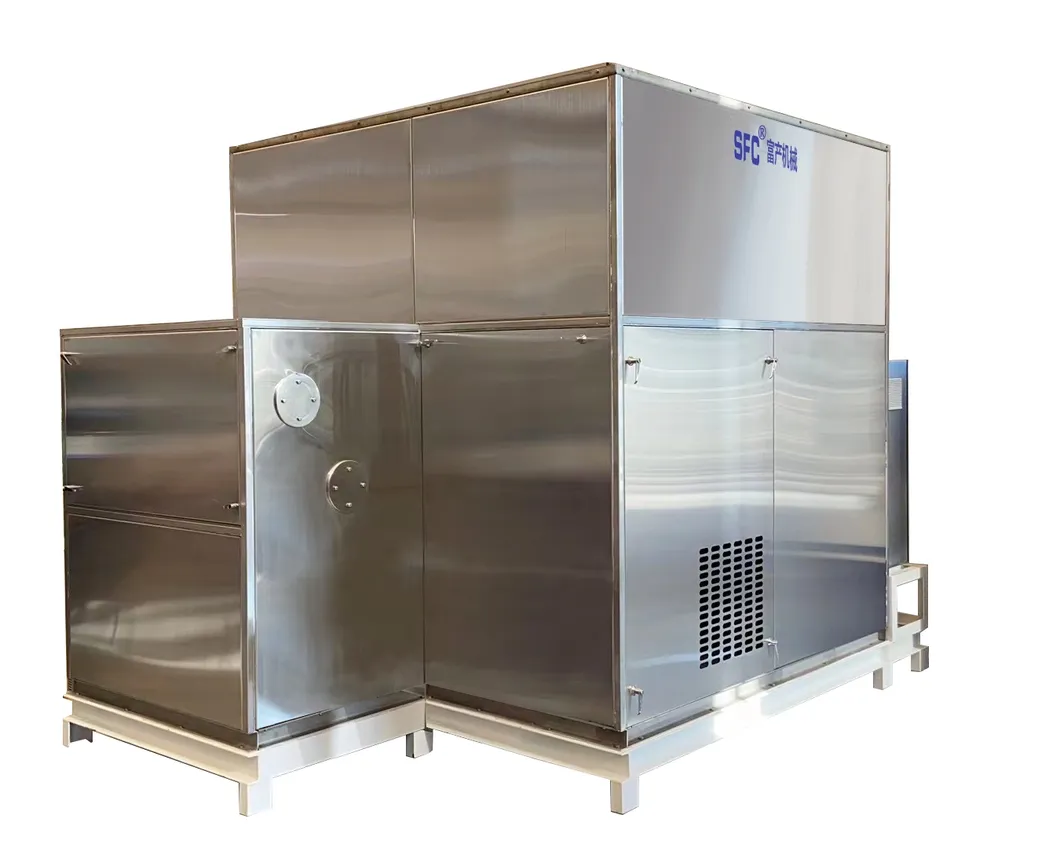

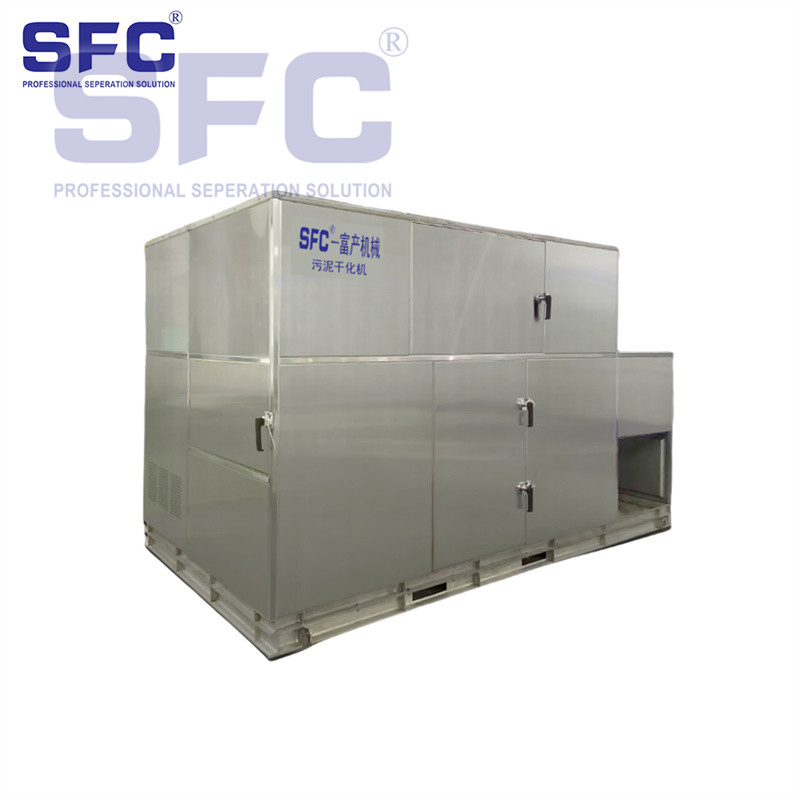

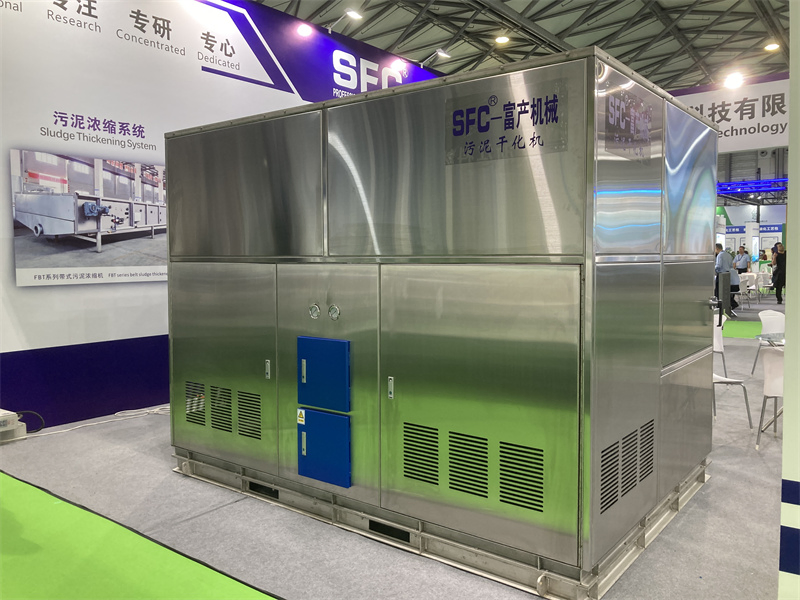

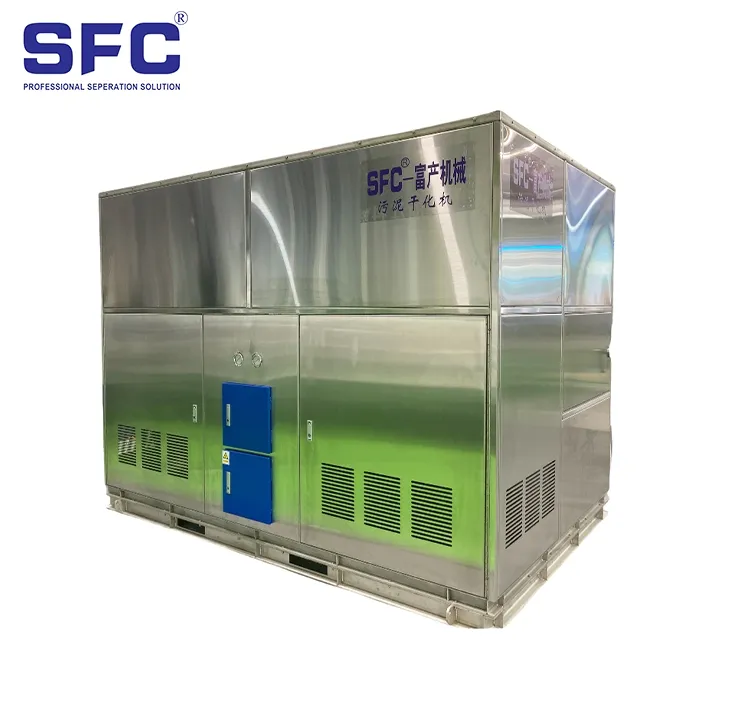

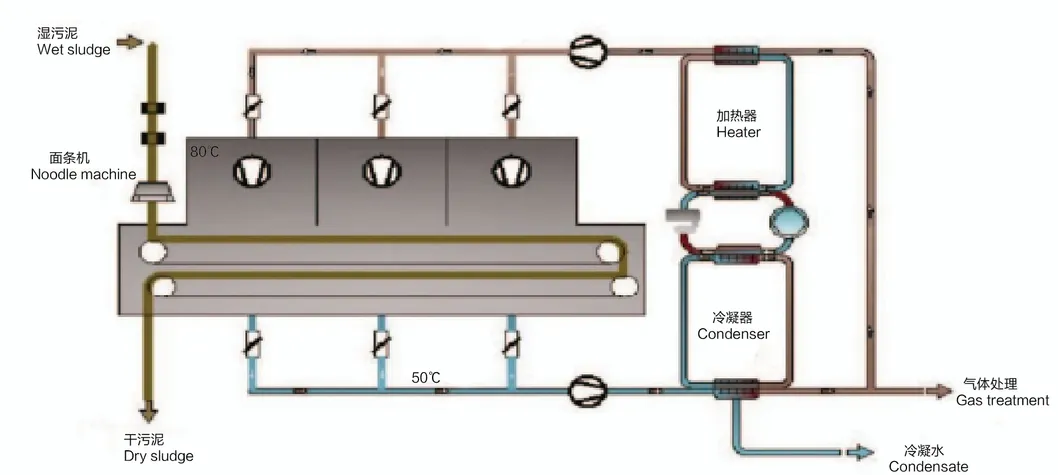

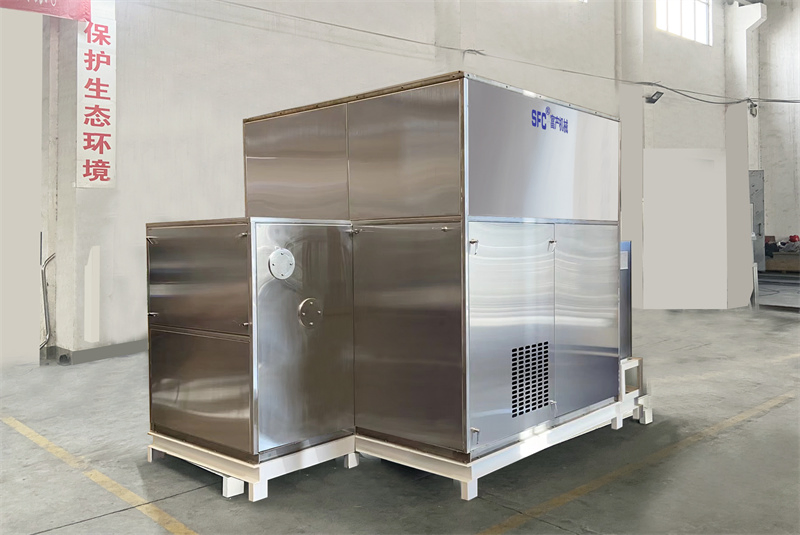

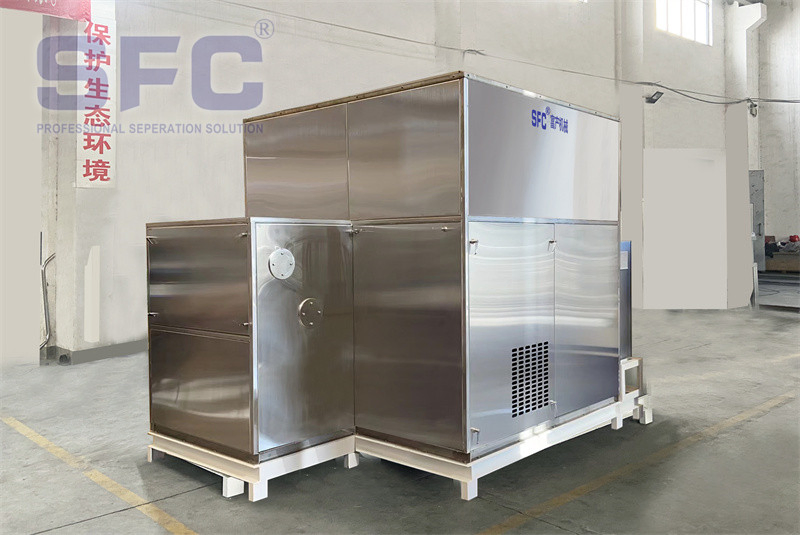

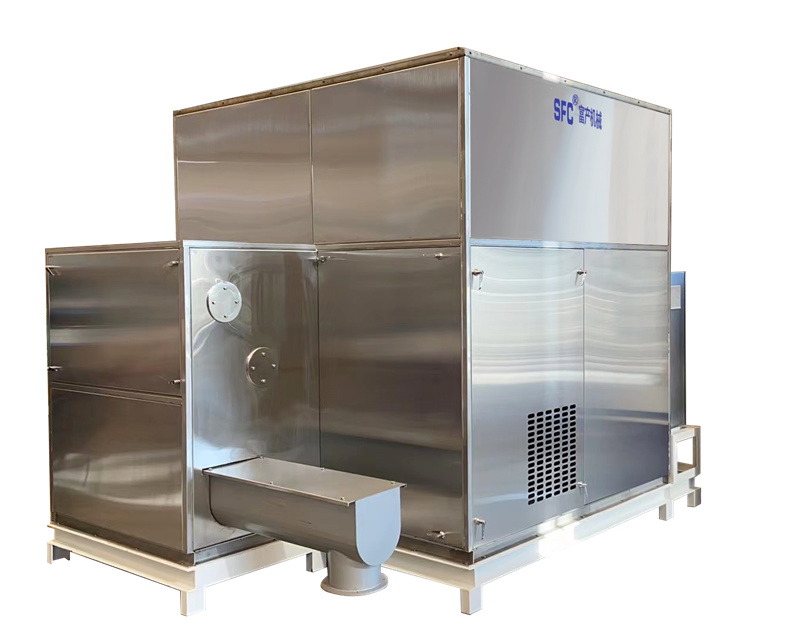

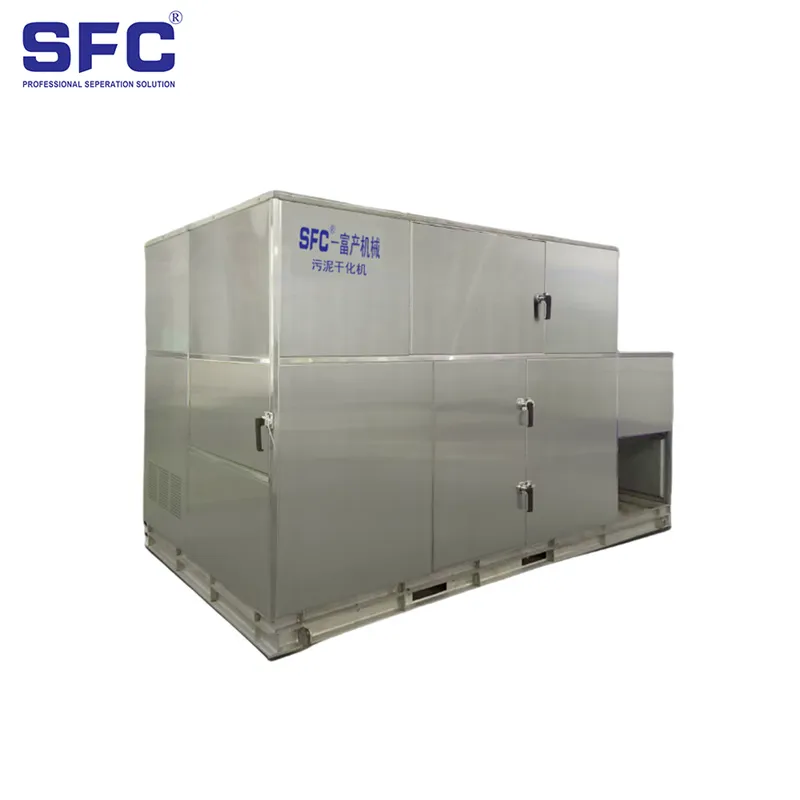

The Belt Sludge Drying Machine represents a breakthrough in industrial efficiency and environmental responsibility. By utilizing advanced high-temperature pumps, the system generates a stable dry heat source operating between 60-100 ºC. This process achieves a dramatic moisture reduction, taking sludge from 80% moisture content down to just 30%.
Key Features:
• Fully enclosed design ensures zero odor escape.
• Modular structure allows for easy capacity expansion by adding dry modules.
• Capable of using waste hot water as an efficient secondary heat source.
• Engineered to withstand extreme conditions, including temperatures above 80 degrees.
By effectively separating free and cell-bound water and employing high temperatures to eliminate pathogens, this drying technology ensures a complete transformation towards stabilization, volume reduction, and resource optimization.
| Model | SFC-BSD1500 | SFC-BSD3000 | SFC-BSD4500 | SFC-BSD6000 | SFC-BSD7500 | SFC-BSD9000 | SFC-BSD10500 |
|---|---|---|---|---|---|---|---|
| Evaporation (kg/h) | 60 | 120 | 180 | 240 | 300 | 360 | 420 |
| Length (mm) | 3440 | 5520 | 7600 | 9680 | 11760 | 13840 | 15920 |
| Width (mm) | 2150 | 2150 | 2150 | 2150 | 2150 | 2150 | 2150 |
| Height (mm) | 2460 | 2460 | 2460 | 2460 | 2460 | 2460 | 2460 |
| Power (KW) | 28 | 50 | 72 | 94 | 116 | 138 | 160 |
As a technology-driven enterprise established in 2007, we specialize in the integration of mechanical processing and environmental protection advancements. Our commitment to research and development has allowed us to excel in the production of cutting-edge environmental equipment. Through collaboration with esteemed institutions, we have forged a robust system uniting production, sales, and professional service.

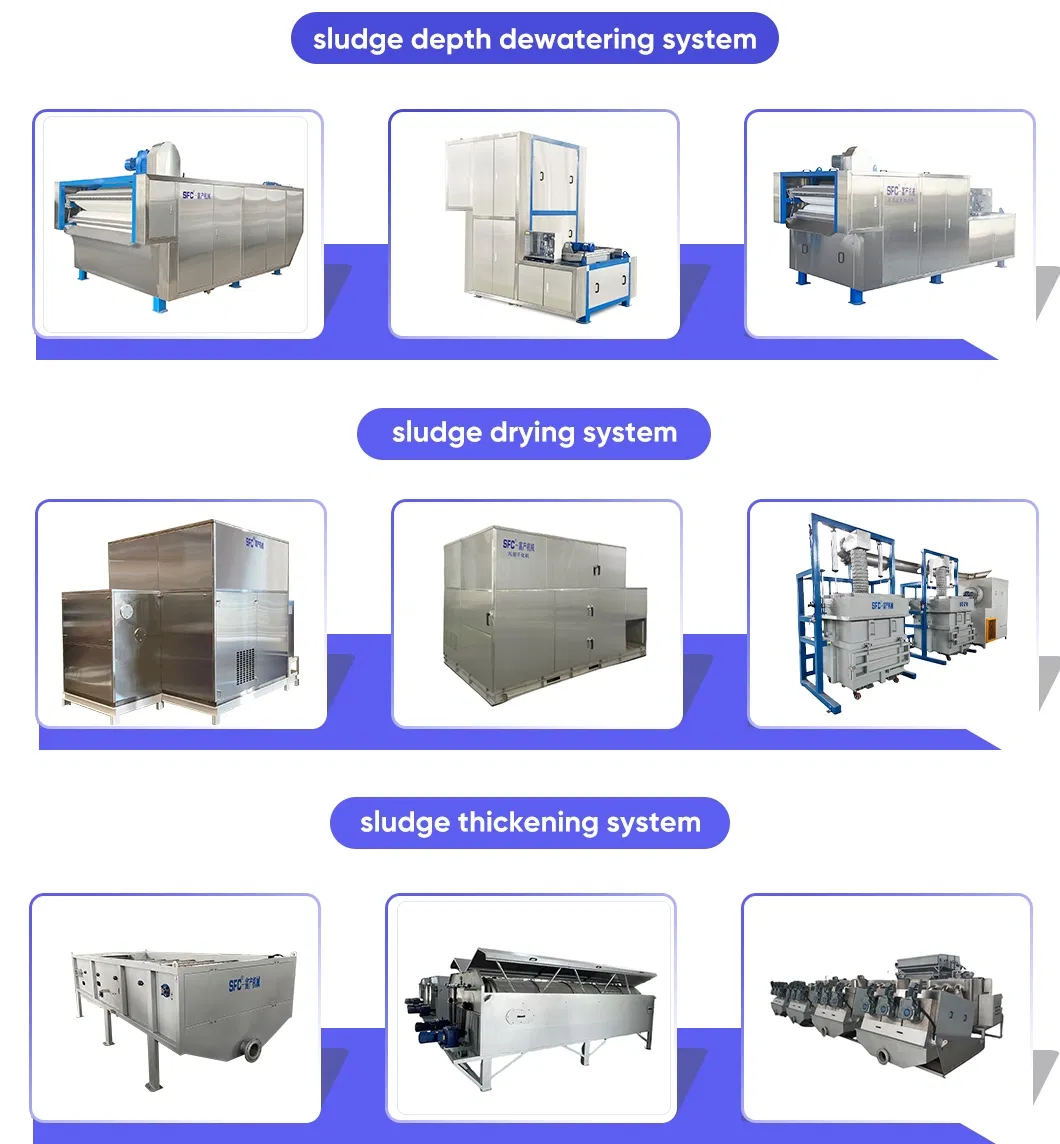

Our expertise extends to a diverse array of equipment, including belt sludge thickening systems, screw press units, flocculant preparation systems, and high-pressure deep dewatering machines. We deliver comprehensive solutions tailored to municipal sewage plants and industrial sectors such as chemical, food, mining, and papermaking.
