Advanced Sludge Drying System with Robust Pump Technology

1 / 5

Advanced Sludge Drying System with Robust Pump Technology

Customization:	Available
After-sales Service:	Online Service
Warranty:	1year

Send Inquiry

Product Description

📊 Basic Information

Model NO.

sludge drying system

Type

Sludge Dewatering Machine

Method

Physical Treatment

Usage

Industrial, Home, Agriculture, Hospital

Metal Parts

SS304, SS316L, PP

PLC Control System

Siemens

Reducer

Siti, or Nord

Processing

Sludge Dewatering

MOQ

1 unit

Place of Origin

Jiangsu, China

🔧 Product Description

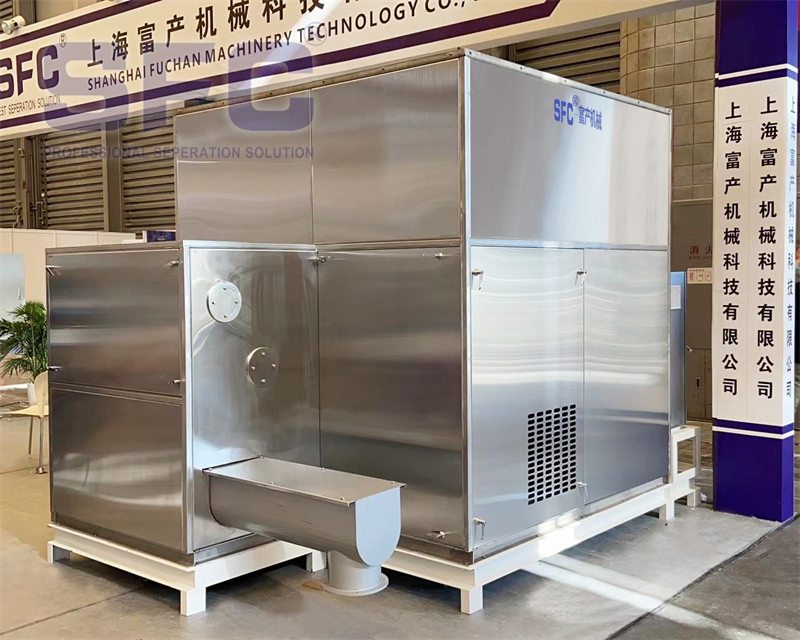

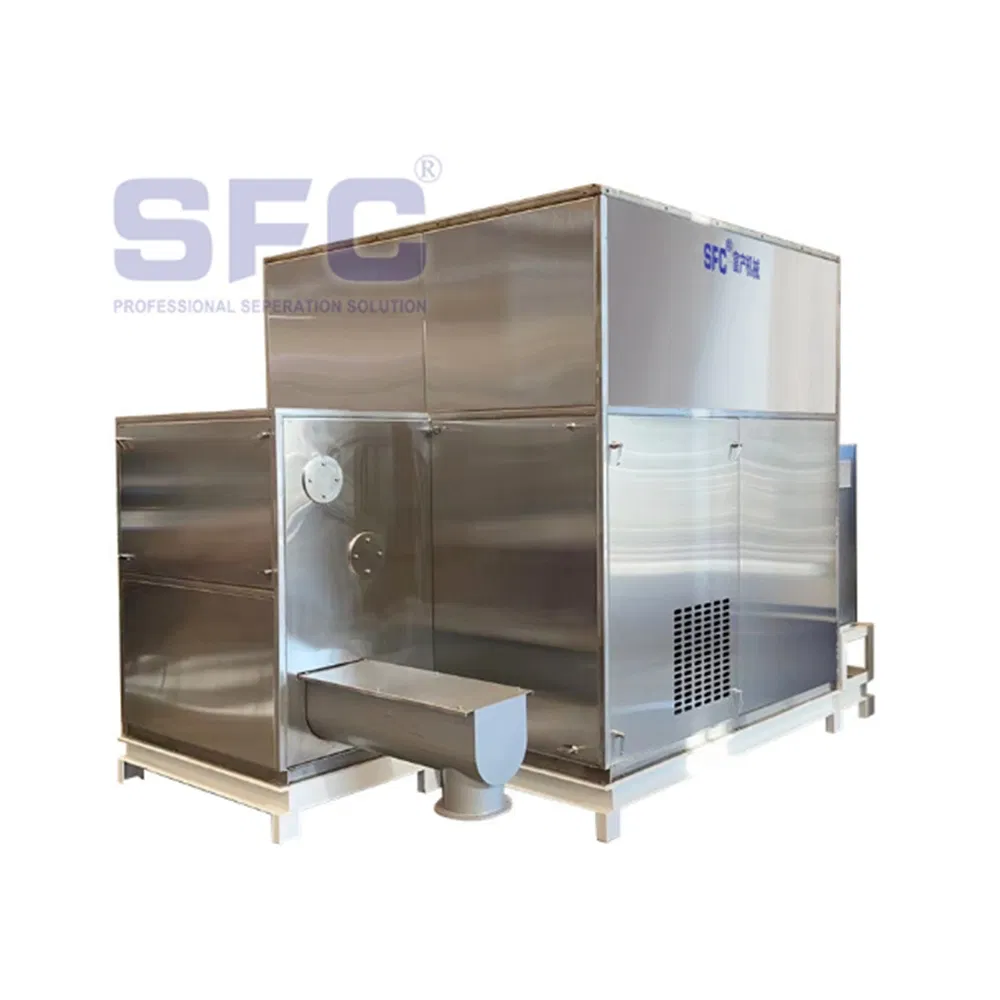

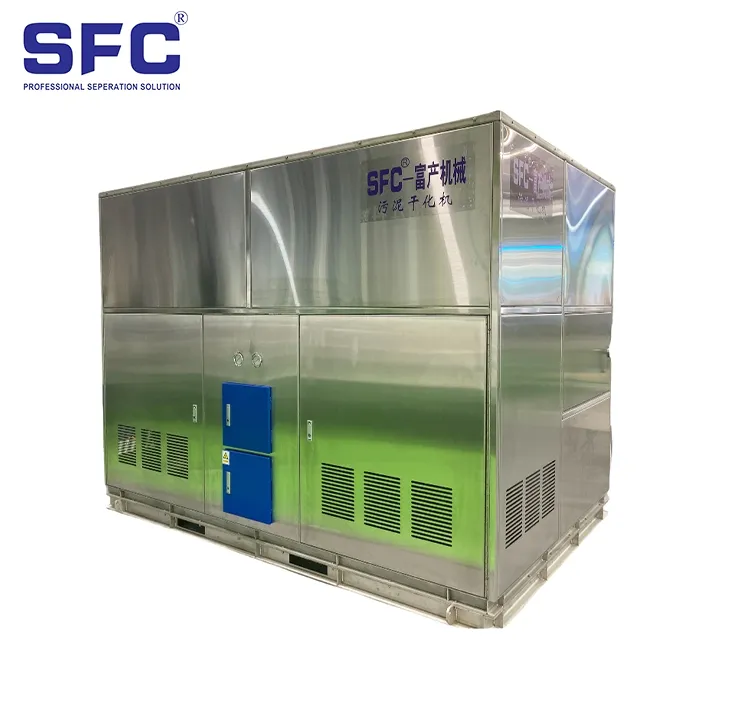

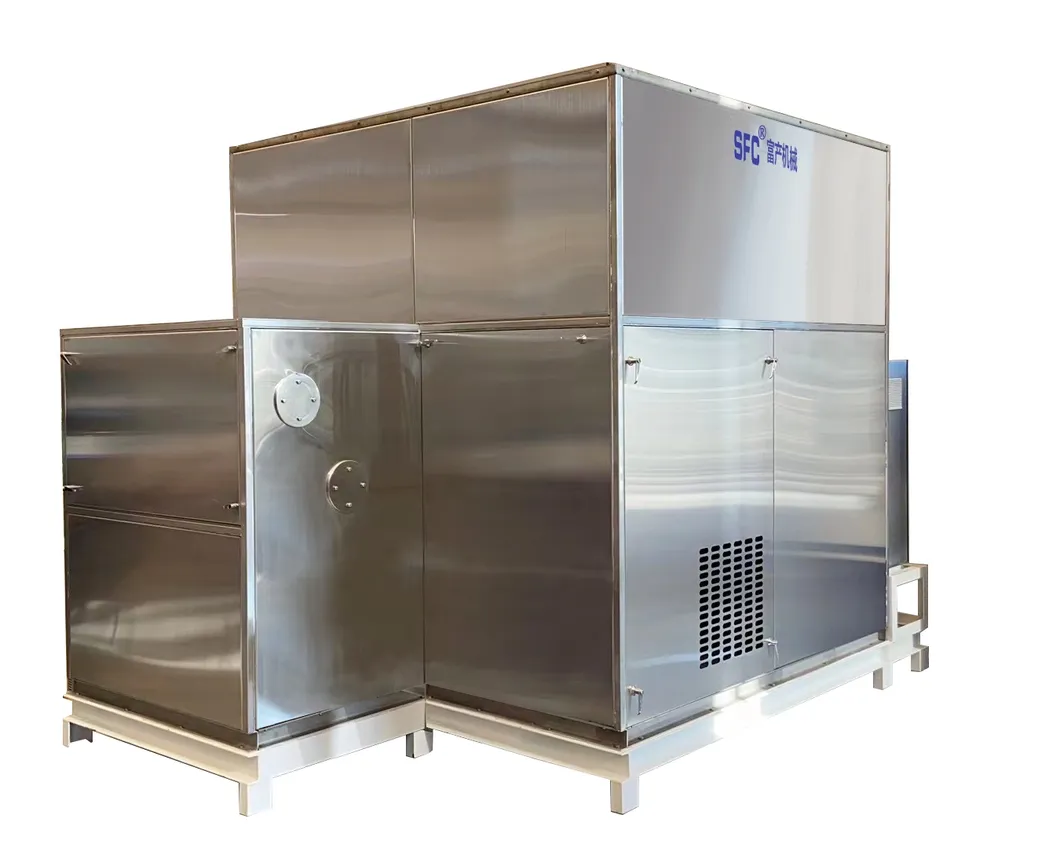

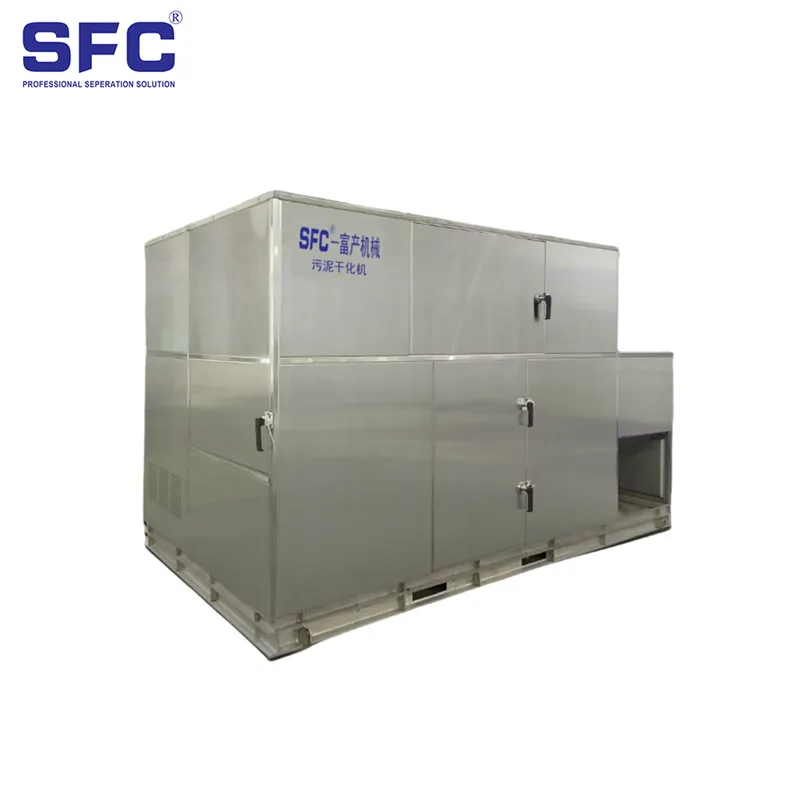

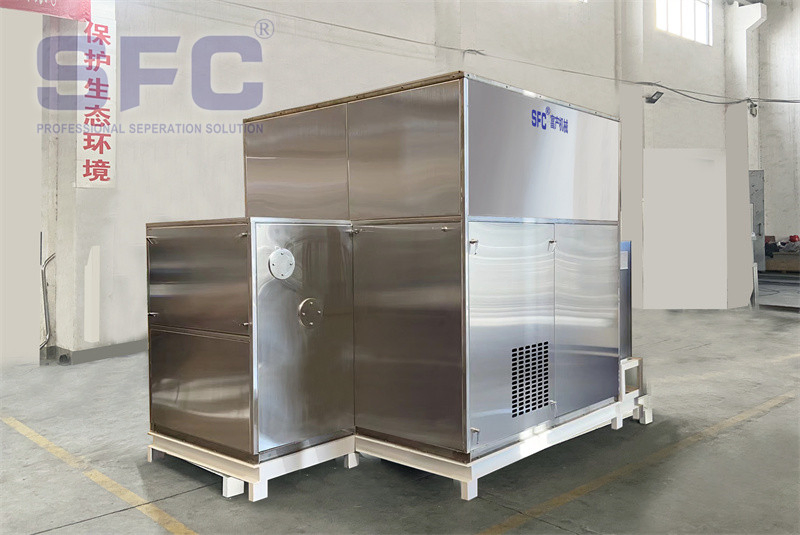

The Belt sludge drying machine is a highly efficient, energy-saving, and environmentally friendly solution. It utilizes a high-temperature pump as a dry heat source to dehydrate sludge under conditions of 60-100 ºC, reducing moisture content significantly from 80% down to 30%.

Key Features:
• Fully enclosed process with no odor overflow.
• Immediate installation without the need for external cooling water or harsh conditions.
• Utilizes waste hot water (above 80 degrees) as a heat source.
• Modular design allows for capacity expansion by adding dry modules.

📋 Technical Specifications

Model	SFC-BSD1500	SFC-BSD3000	SFC-BSD4500	SFC-BSD6000	SFC-BSD7500	SFC-BSD9000	SFC-BSD10500	SFC-BSD12000
Evaporating Capacity (H2O kg/h)	60	120	180	240	300	360	420	480
Length (mm)	3440	5520	7600	9680	11760	13840	15920	18000
Width (mm)	2150	2150	2150	2150	2150	2150	2150	2150
Height (mm)	2460	2460	2460	2460	2460	2460	2460	2460
Power Consumption (KW)	28	50	72	94	116	138	160	182

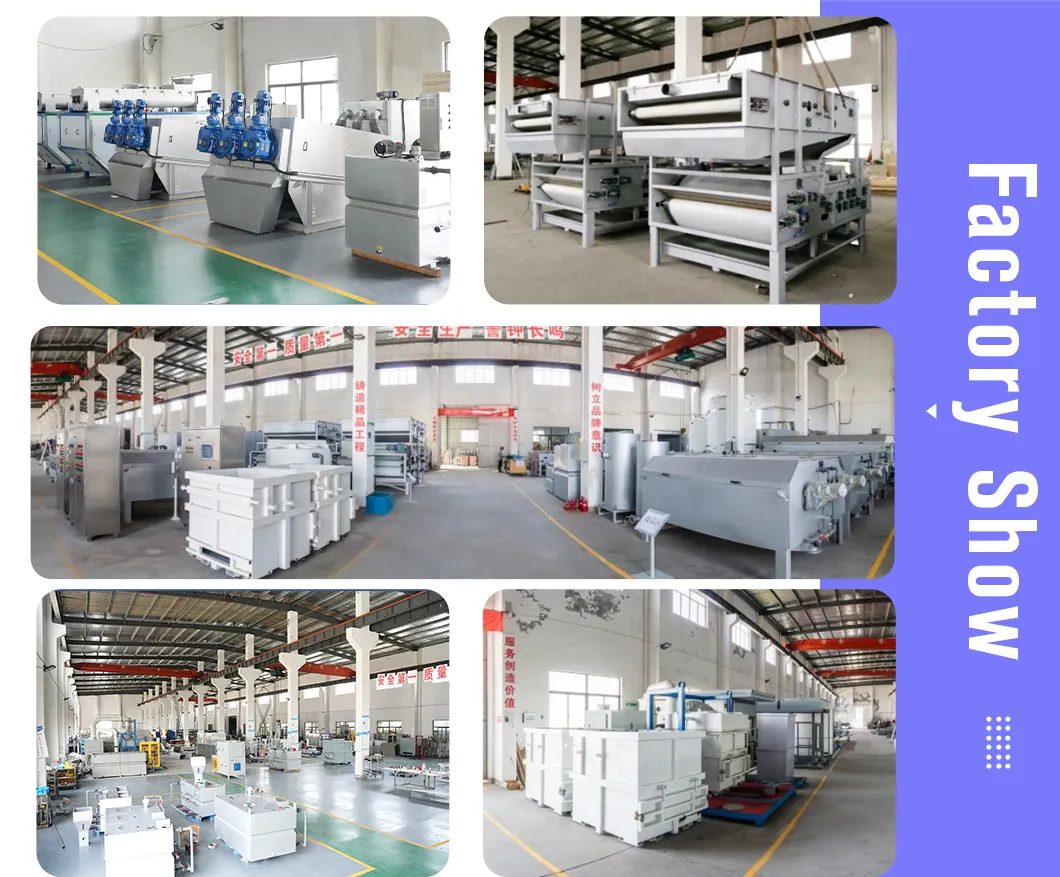

🏭 Manufacturing Capabilities

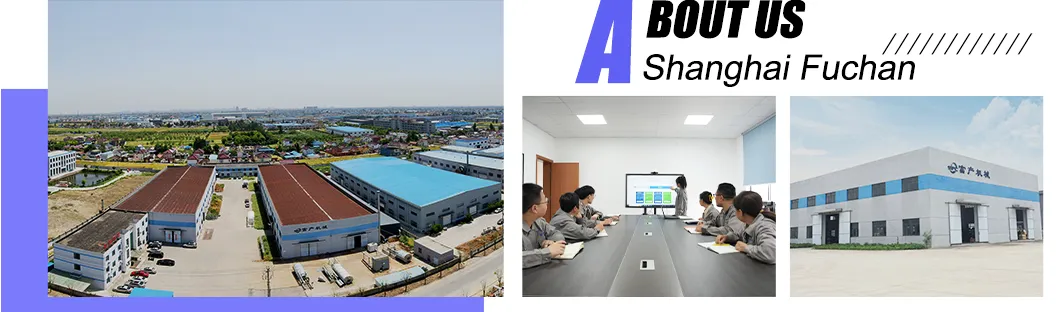

Our company is a technology-based enterprise integrating research, development, and mechanical processing. Since its establishment, we have been dedicated to the production and sales of high-end environmental protection equipment. We provide comprehensive solutions with advanced processing techniques and reliable quality control.

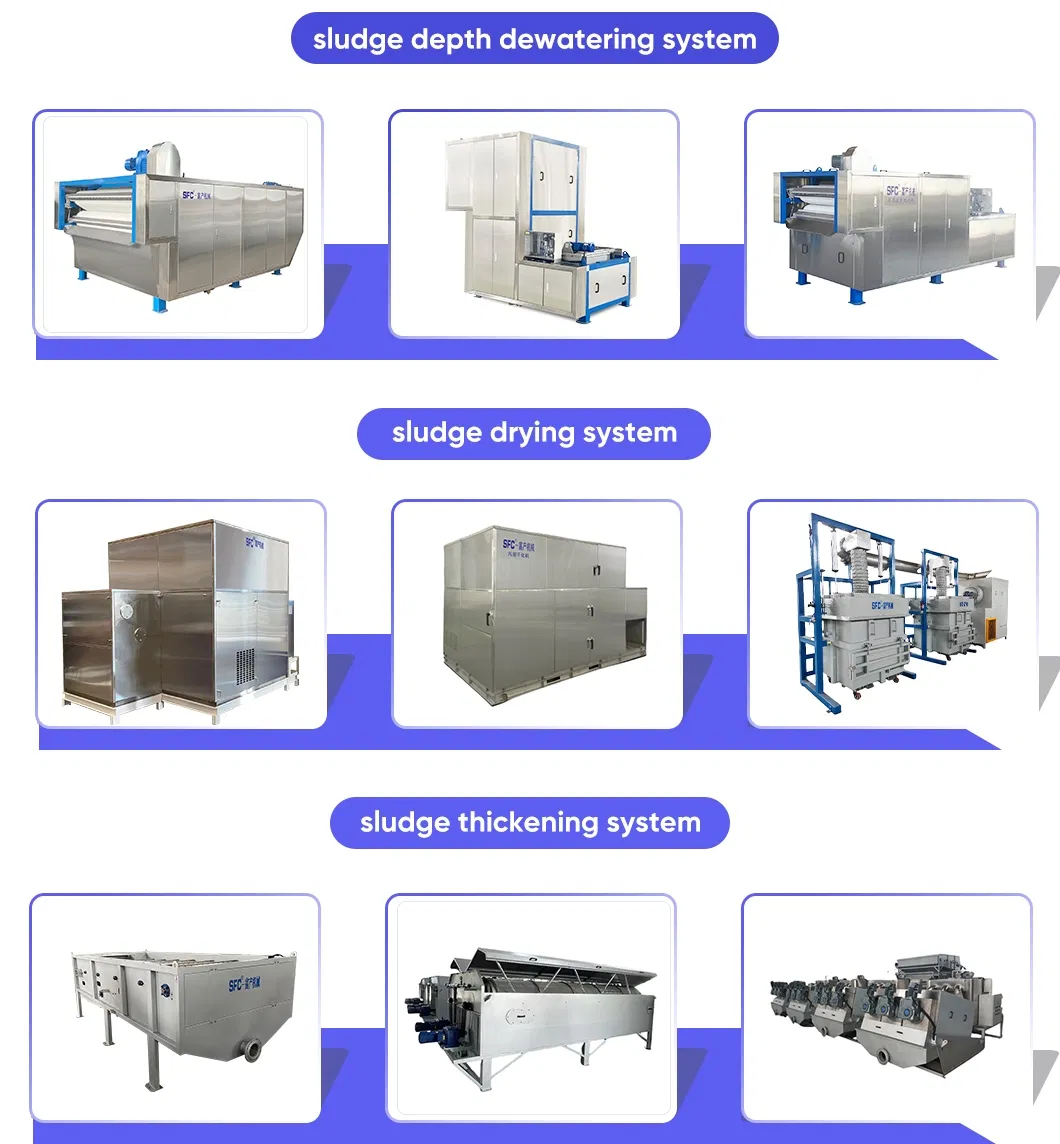

Our main operations include Belt sludge thickening and dewatering integrated machines, screw press sludge dewatering machines, flocculant preparation systems, sludge thickeners, and high-pressure belt sludge deep dewatering equipment.

🏆 Advantages & Quality

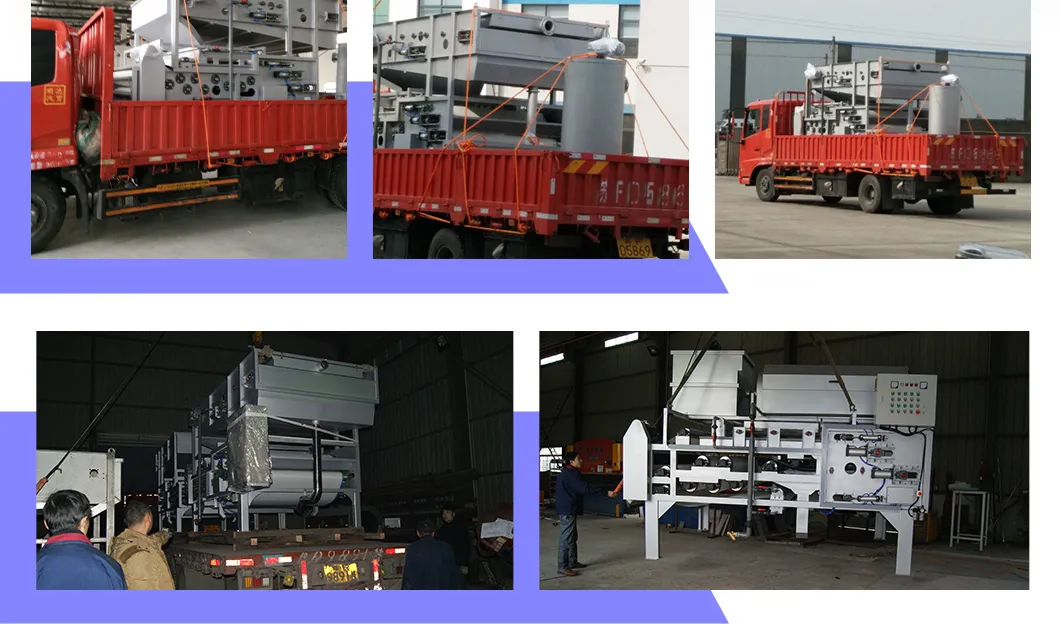

🌐 Global Presence & Logistics

❓ Frequently Asked Questions

Are you a trading company or a manufacturer?

We are both a manufacturer and a trading company with over 10 years of professional experience in wastewater treatment equipment manufacturing and engineering services.

What types of payment do you accept?

We primarily accept T/T (Telegraphic Transfer) and L/C (Letter of Credit).

Do you provide OEM services for your equipment?

Yes, we provide professional OEM services tailored to our clients' specific requirements.

What quality certificates do your products hold?

Our products are certified with CE and ISO standards, ensuring high quality and international compliance.

How long is the warranty period for the machinery?

We offer a one-year warranty starting from the arrival of the goods at the destination.

What is the typical delivery time for an order?

Normally, delivery is within 45 days after receiving the down payment.
