Advanced Polymer Powder Dosing System for Efficient Wastewater Treatment Solutions in Global B2B Procurement

Customization:	Available
After-sales Service:	Engineers Available
Warranty:	12 Months

📋 Basic Information

Model NO.

DZ

Type

Polymer Dosing Equipment

Method

Automatic

Usage

Industrial

PAM Dosage

1-20kg/H

Motor

Sew/Nord/Customize

Protection Level

IP55 F

Certification

SGS/CE/ISO 9001

Water Inflow

0.3-12m3/H

Electrical Component

Schneider/Omron/Customize

Package Size

2300*1200*1800 mm

Gross Weight

500kg

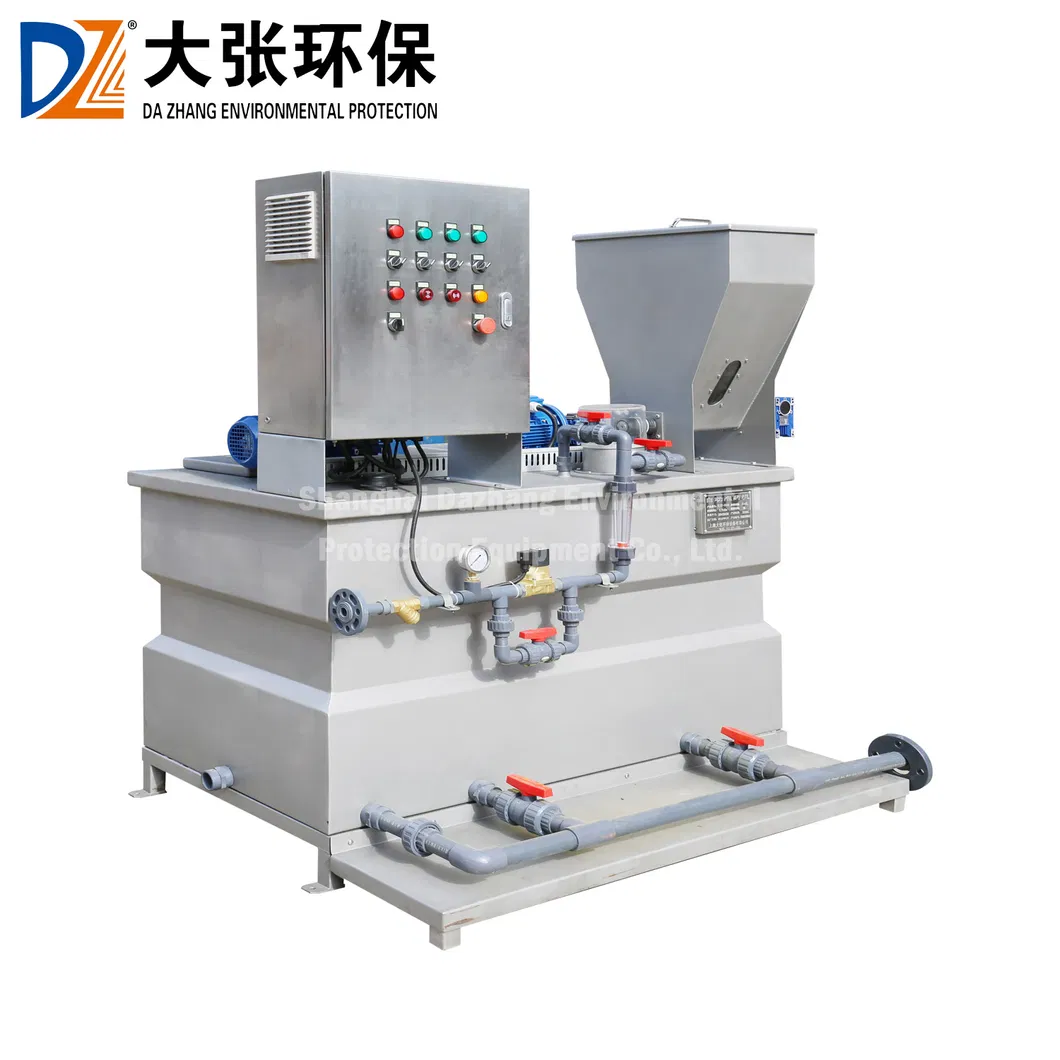

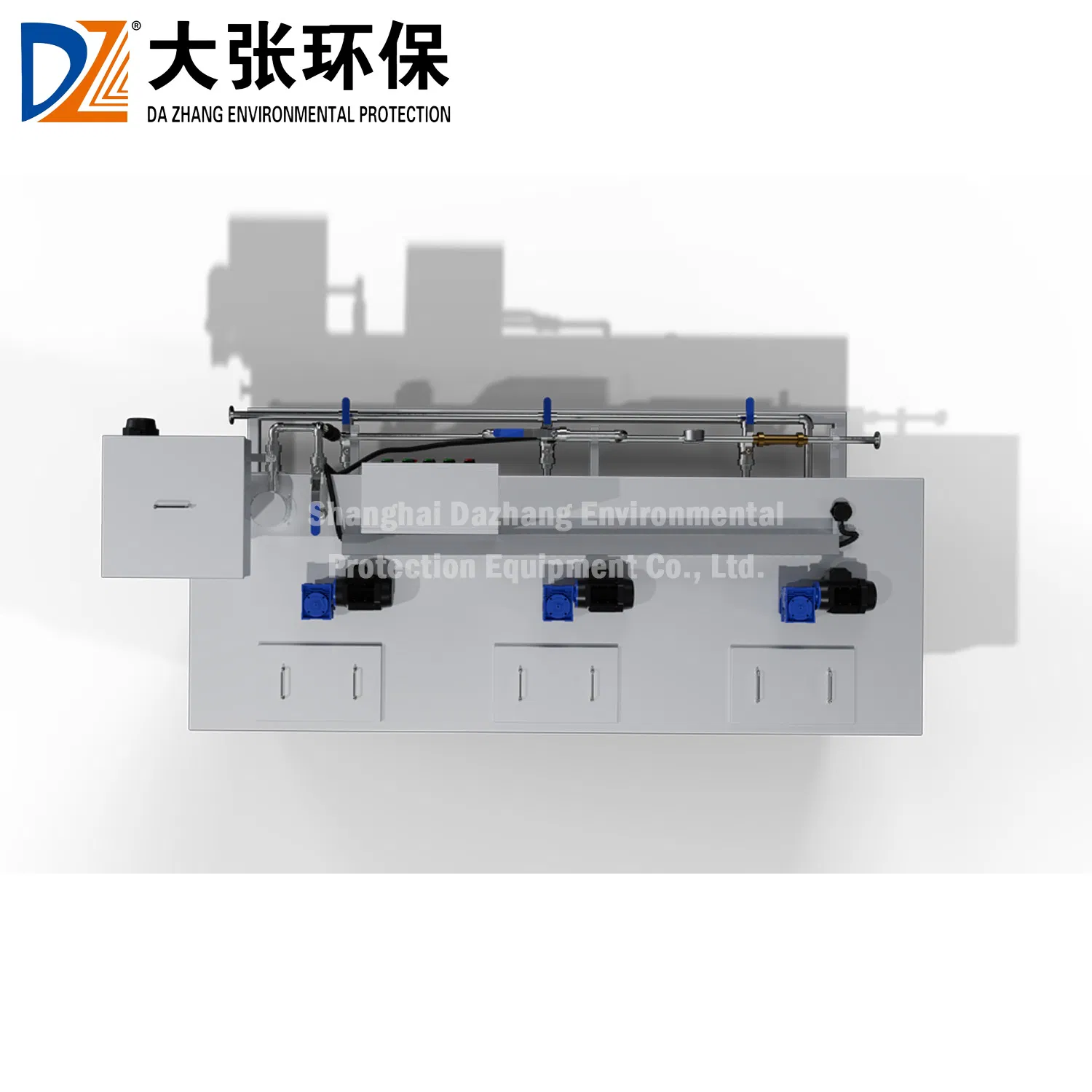

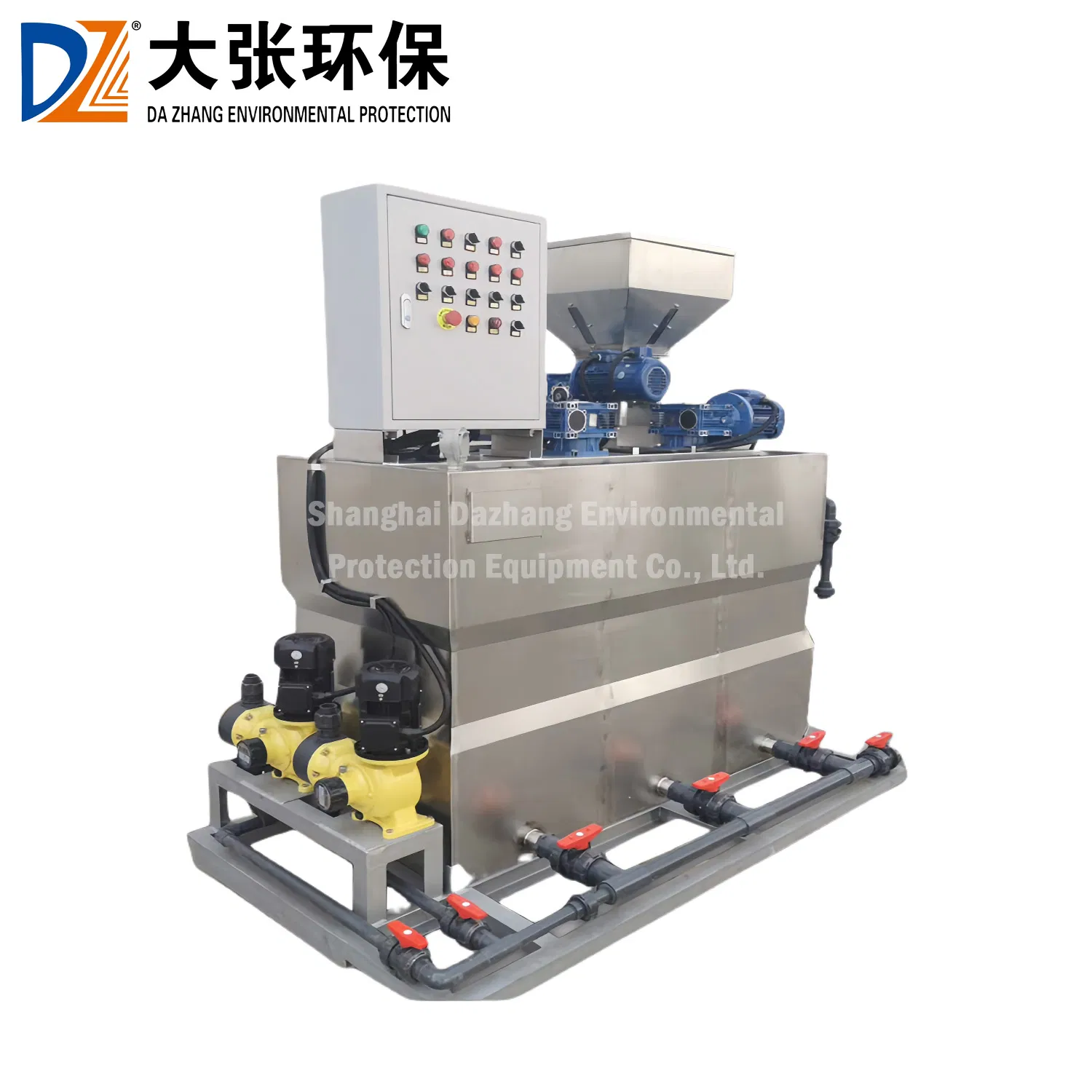

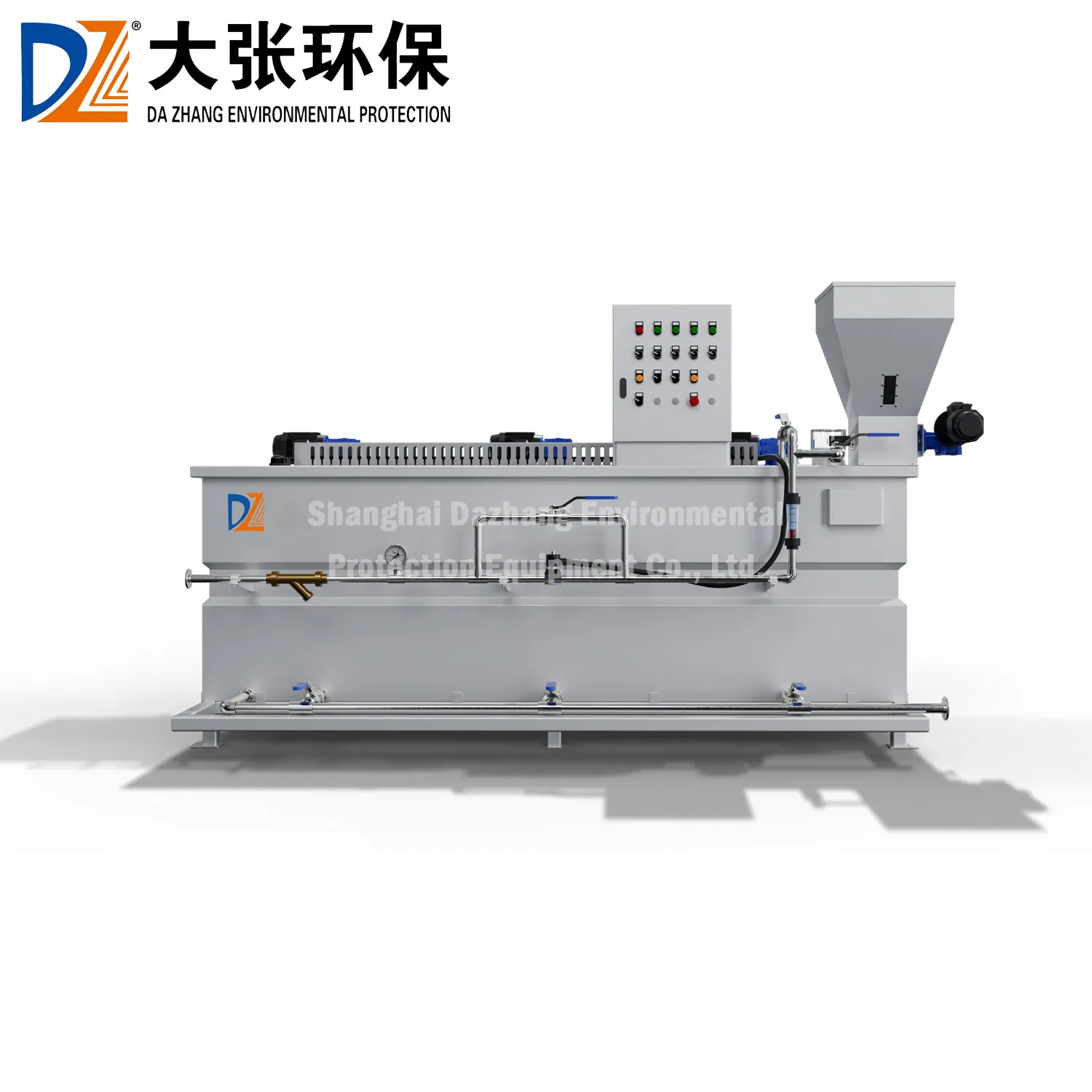

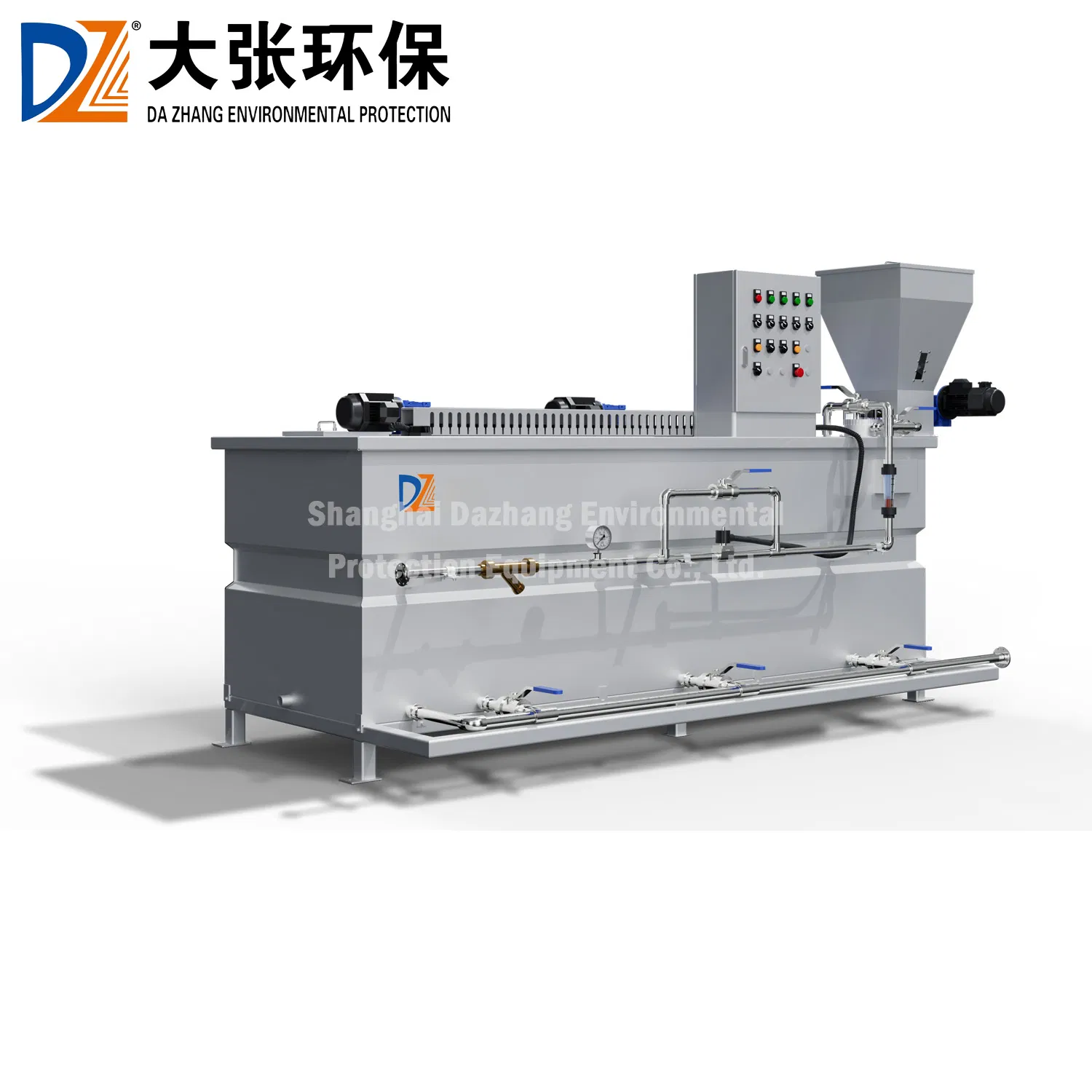

📷 Product Visuals

⚙ Basic Configuration

✔ One set of tanks: Configuration, curing, and storage.

✔ Water feeding unit: Magnetic valve, pressure meter, flow meter, and filters.

✔ Three sets of mixing units.

✔ Powder feeding unit: Hopper and feeder.

✔ Wetting and dilution unit.

✔ Water level monitoring and alarm device.

✔ Automatic heating system (Dehumidification).

✔ Integrated control cabinet.

📊 Product Parameters

Model	Tank Type	Capacity (L)	Supply Tank (L)	Feeder Power (kw)	Mixing Power (kw)	Material	L (mm)	W (mm)	H (mm)	Weight (kg)
ZJY-500	Two-slot	500	30	0.18	0.37×2	SUS304	1600	1100	1500	240
ZJY-1000	Three-slot	1000	40	0.18	0.37×3	SUS304	2000	1200	1600	350
ZJY-1500	Three-slot	1500	50	0.18	0.37×3	SUS304	2300	1200	1800	450
ZJY-2000	Three-slot	2000	50	0.18	0.37×2	SUS304	2300	1500	2000	500
ZJY-3000	Three-slot	3000	80	0.18	0.55×2	SUS304	3300	1700	1900	700
ZJY-5000	Three-slot	5000	120	0.37	1.1×3	SUS304	4000	1800	2200	1100
ZJY-10000	Three-slot	10000	180	0.37	2.2×3	SUS304	5000	2000	2700	1800

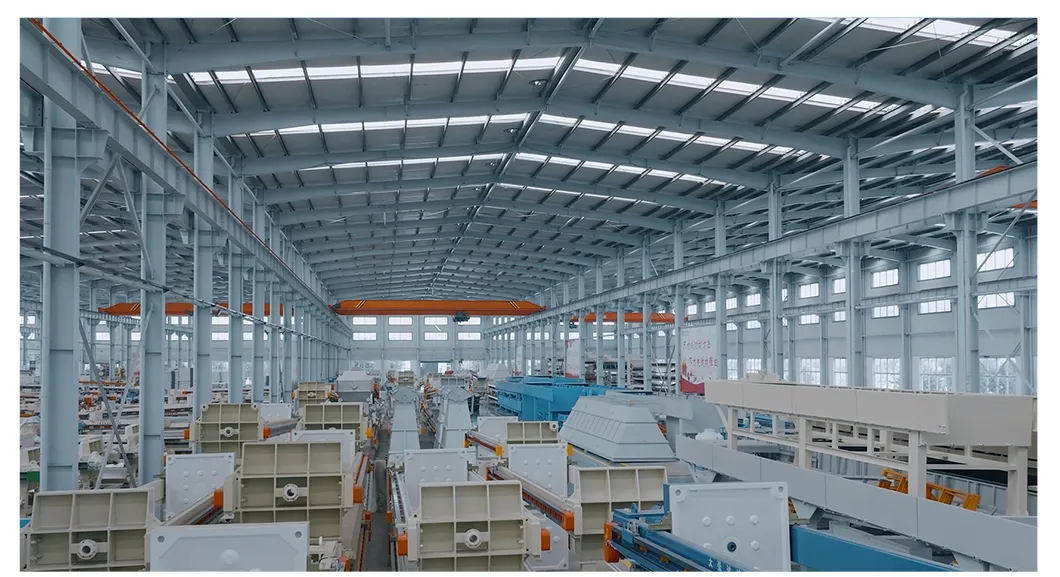

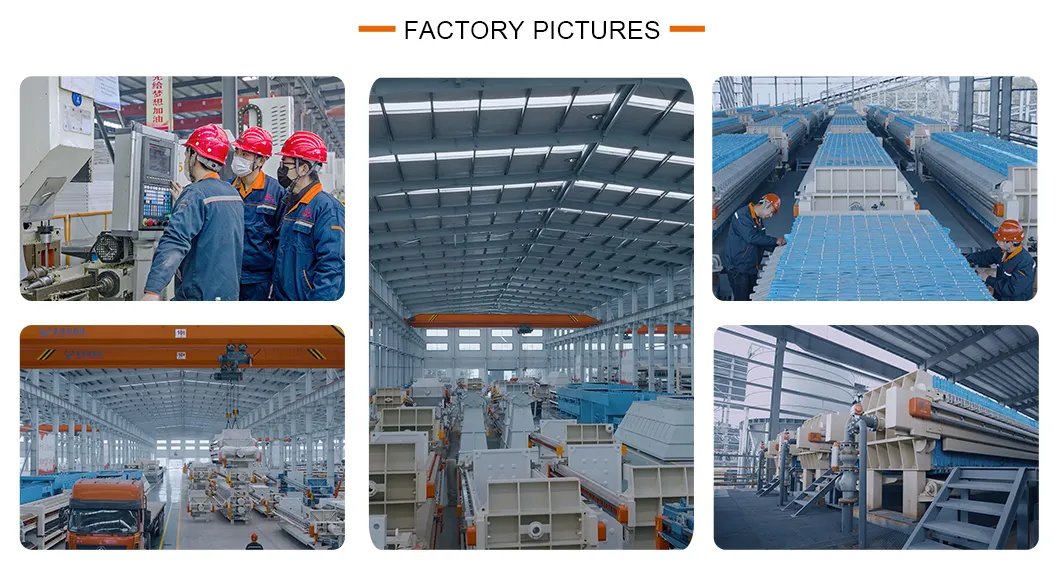

🏭 Manufacturing Excellence

With over two decades of dedication to solid-liquid separation, our products are engineered for high performance and reliability. We are a smart manufacturer and comprehensive service provider of sludge dewatering equipment, holding multiple invention and utility model patents.

Our systems comply with ISO 9001, ISO 14001, and CE certifications, ensuring the highest standards of quality management and environmental protection for industrial applications.

❓ Frequently Asked Questions

➤ Q1. Are you a manufacturer or a trader?

We are an experienced manufacturer with extensive production facilities dedicated to solid-liquid separation machinery.

➤ Q2. What is your production capacity?

Our manufacturing capacity allows for the production of approximately 9,500 sets of equipment per year across our production bases.

➤ Q3. How long is the delivery time for bulk orders?

Standard orders typically take 15-30 working days. For large-scale equipment or customized requirements, the delivery schedule may be adjusted accordingly.

➤ Q4. What are the payment terms and warranty?

Payments are usually processed via T/T (deposit + balance). We provide a one-year warranty for normal use and lifelong online technical support.

➤ Q5. What after-sales service do you provide?

We provide comprehensive installation drawings, videos, and online guidance. On-site technical assistance can be arranged based on client requirements.

➤ Q6. Can you provide replacement wearing parts?

Yes, we produce high-quality wearing parts. For equipment not manufactured by us, please provide technical drawings for custom production.
