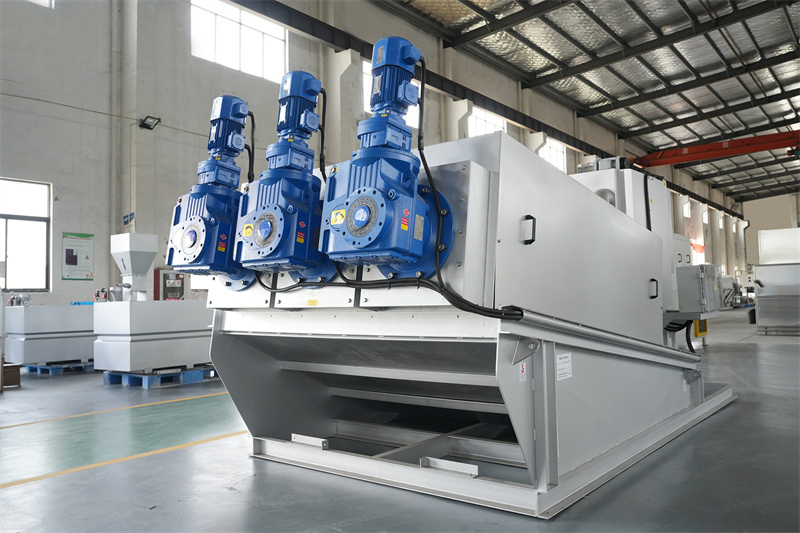

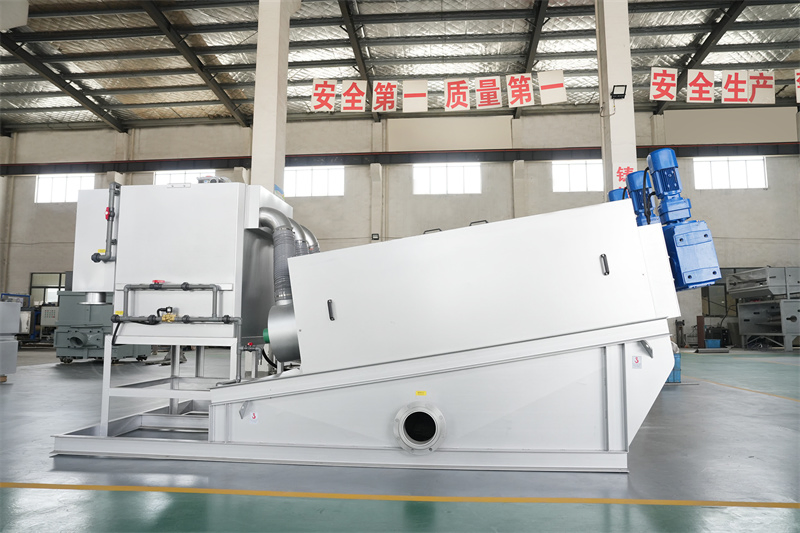

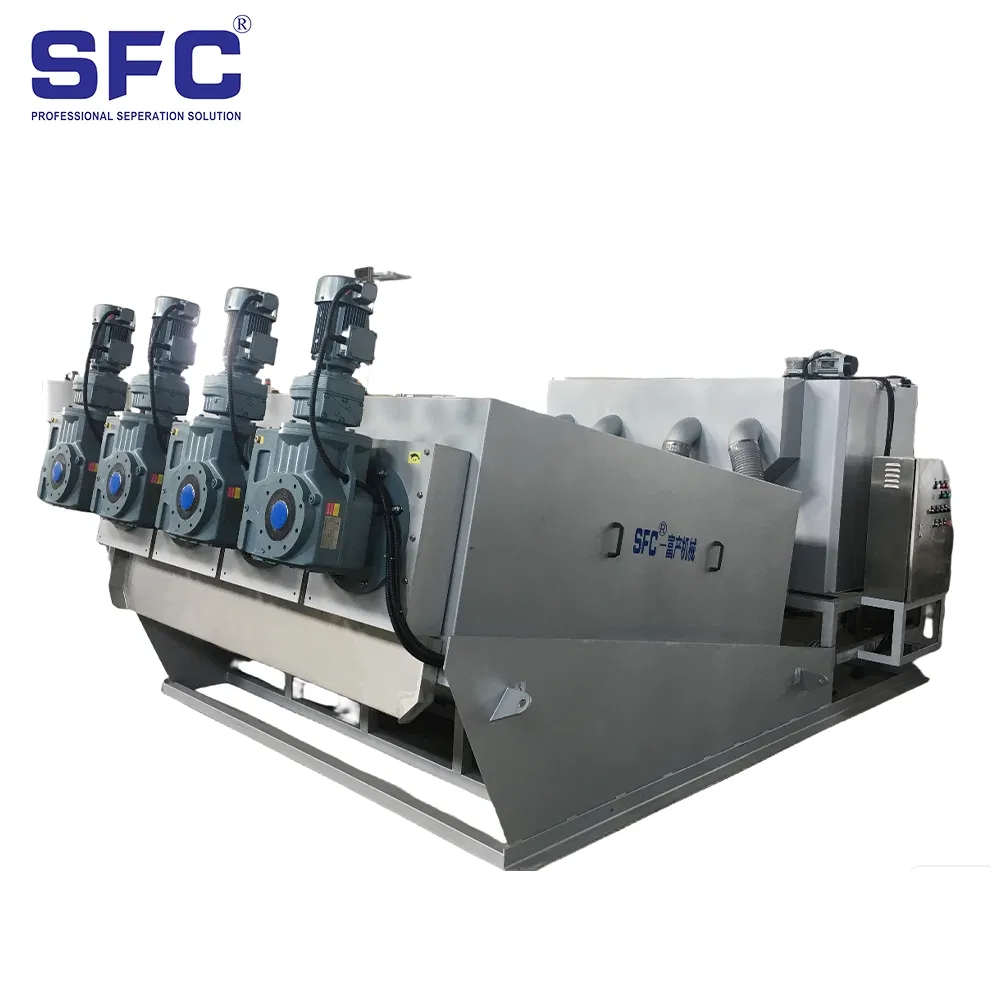

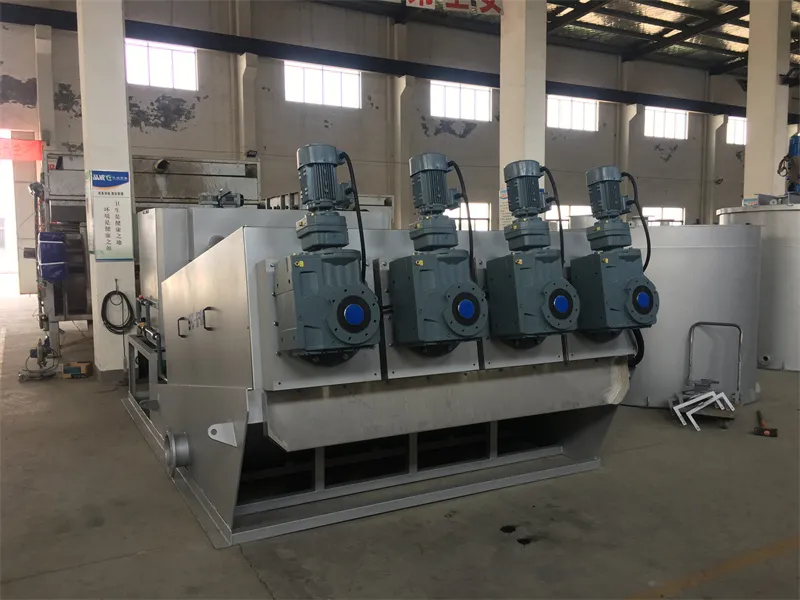

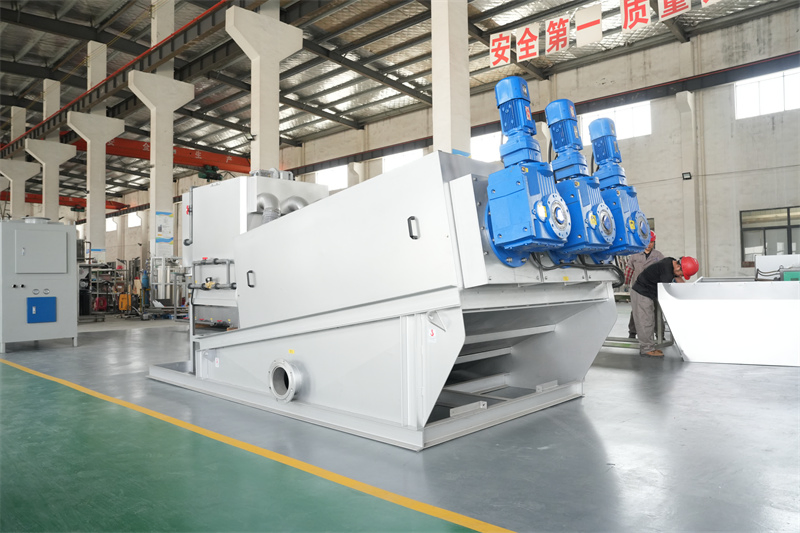

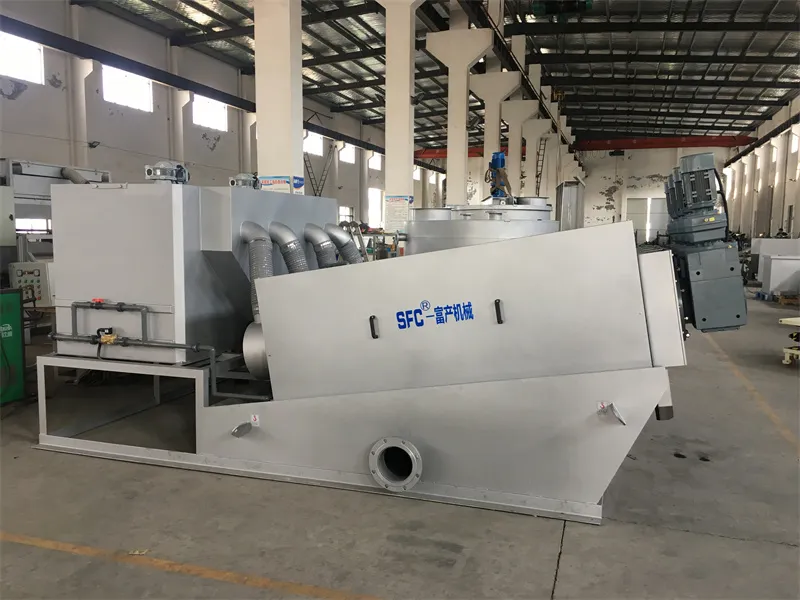

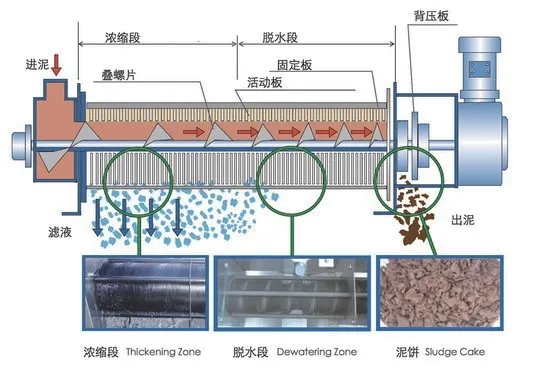

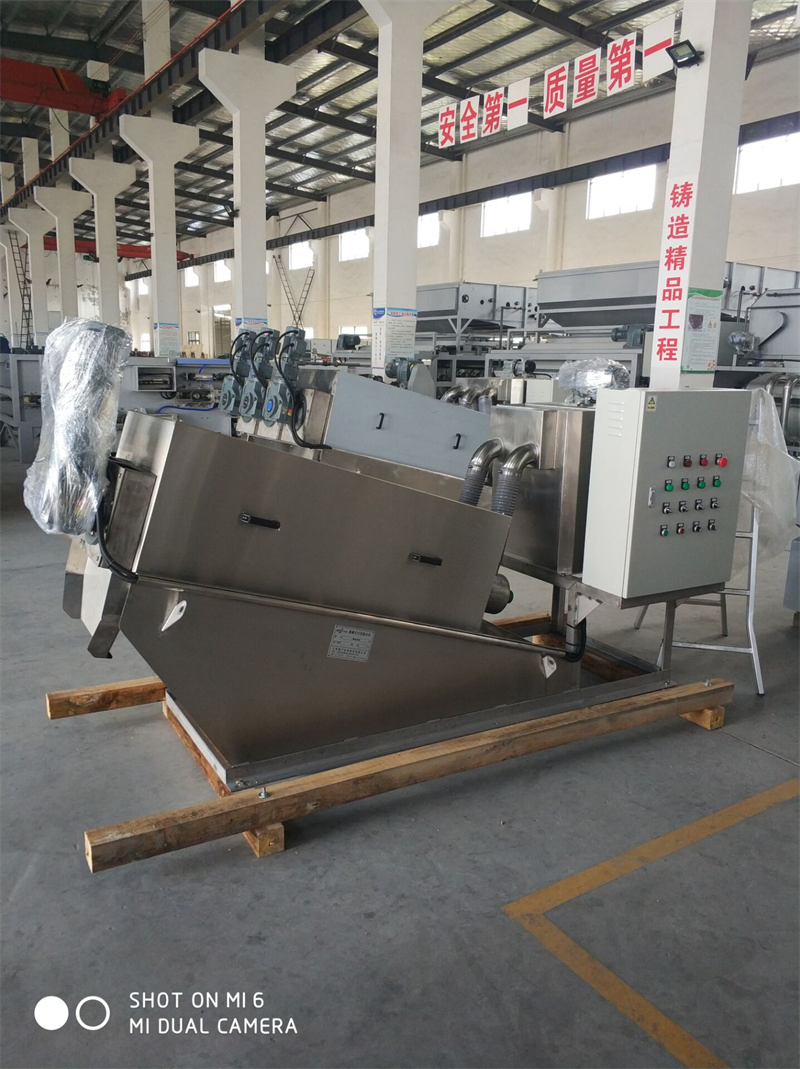

The sludge dewatering machine consists of multiple rings, active rings, and a volute filter, capable of completing sludge thickening and press dewatering. In the concentration part, filtrate discharges quickly and never blocks through the relative movement between fixed and moving plates. In the dewatering part, the conveyor reduces volume and enhances internal pressure via a pressure plate.
| Model | DL-101 | DL-102 | DL-201 | DL-202 | DL-301 | DL-302 | DL-351 | DL-401 | DL-402 |
|---|---|---|---|---|---|---|---|---|---|
| Inlet Consistency | 0.6% ~ 5.0% | ||||||||
| Dry Sludge (kg/h) | 3~5 | 5~10 | 9~15 | 18~30 | 30~50 | 60~100 | 60~100 | 90~150 | 180~300 |
| Water Content (%) | 75% ~ 85% | ||||||||
| Screw Spec (mm×Qty) | 85×1 | 85×2 | 170×1 | 170×2 | 230×1 | 230×2 | 330×1 | 400×1 | 400×2 |
| Power (KW) | 0.12 | 0.24 | 0.25 | 0.50 | 0.55 | 1.10 | 0.75 | 1.5 | 3.0 |

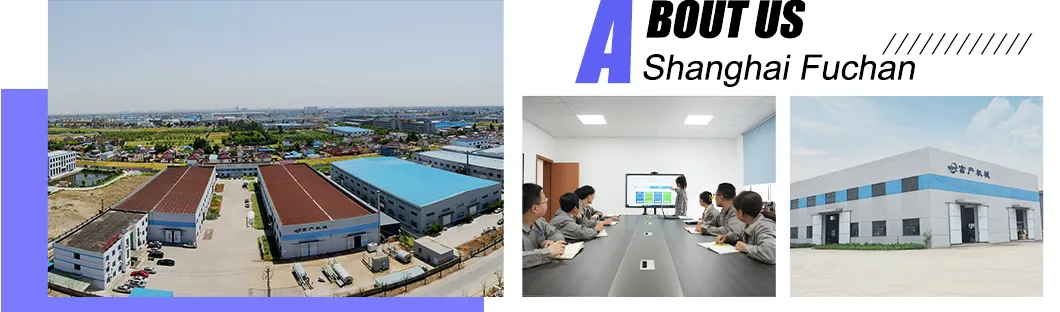

Established in 2007, the company is a technology-based enterprise integrating research, development, and mechanical processing. We are dedicated to the sales of equipment in the environmental protection field, providing comprehensive solutions with advanced processing techniques and reliable product quality. Our production system covers R&D, sales, and service across various industries including municipal sewage treatment, food, mining, and papermaking.
