Basic Info.
Model NO.DLJG
TypeFertilizer Granulator Machine
Voltage380V
CertificationCE, ISO
Weight (Kg)50000
UseAgriculture
Product NamePig Feces Rotary Drying Machine
MaterialSteel, Stainless Steel
Output Capacity1.28 T/H
Early Moisture50±5%
Final Moisture15% (Adjustable)
Key Selling PointsSustainable
Product Description

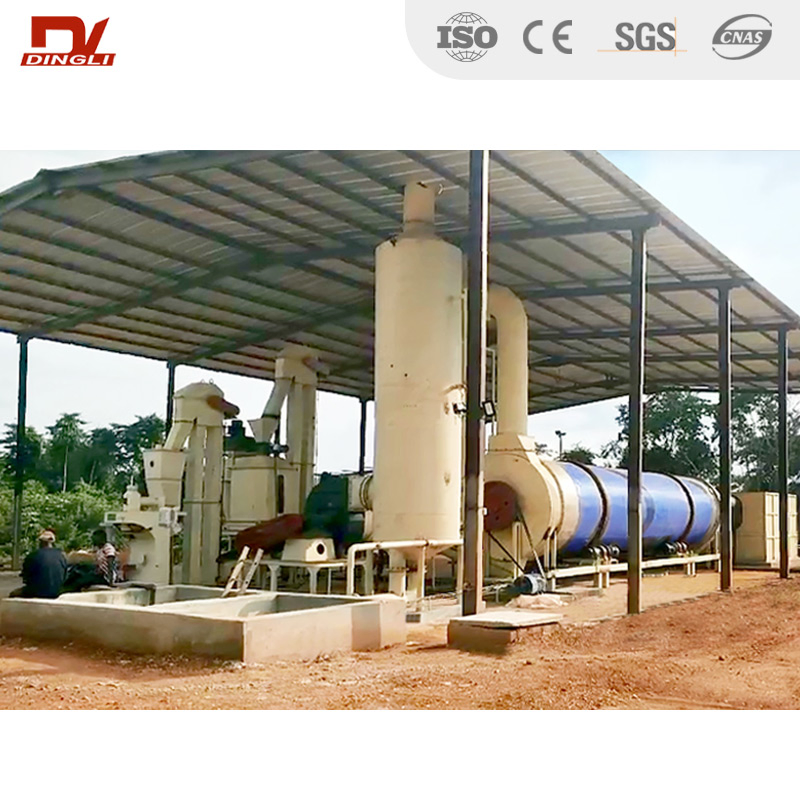

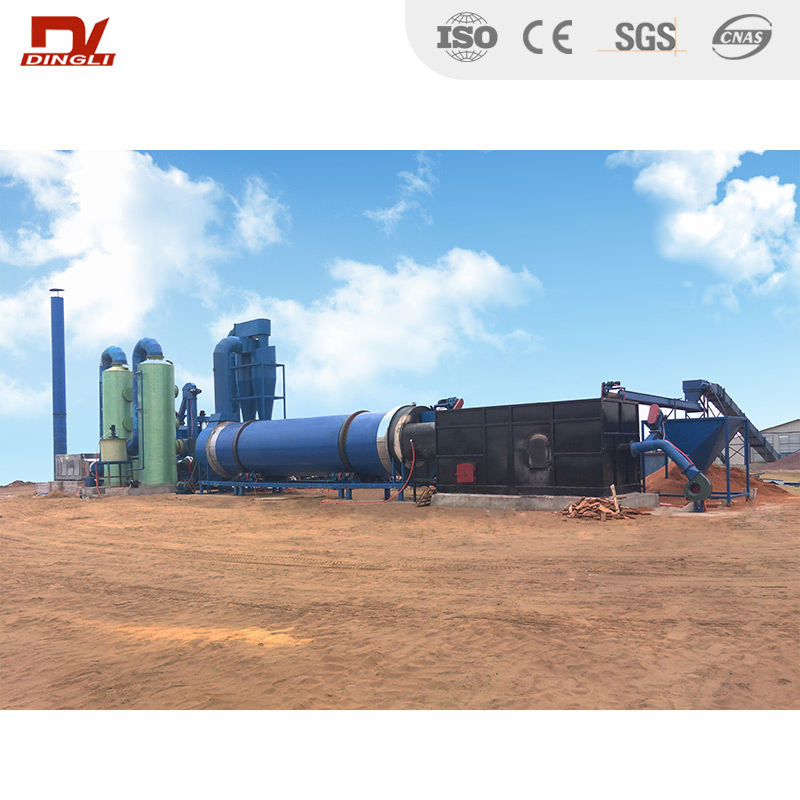

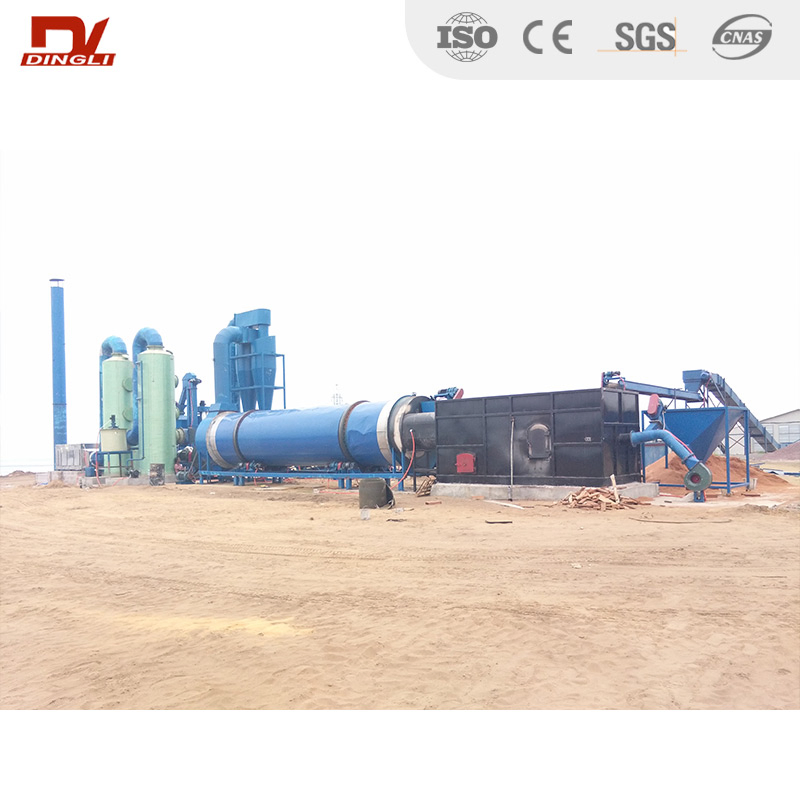

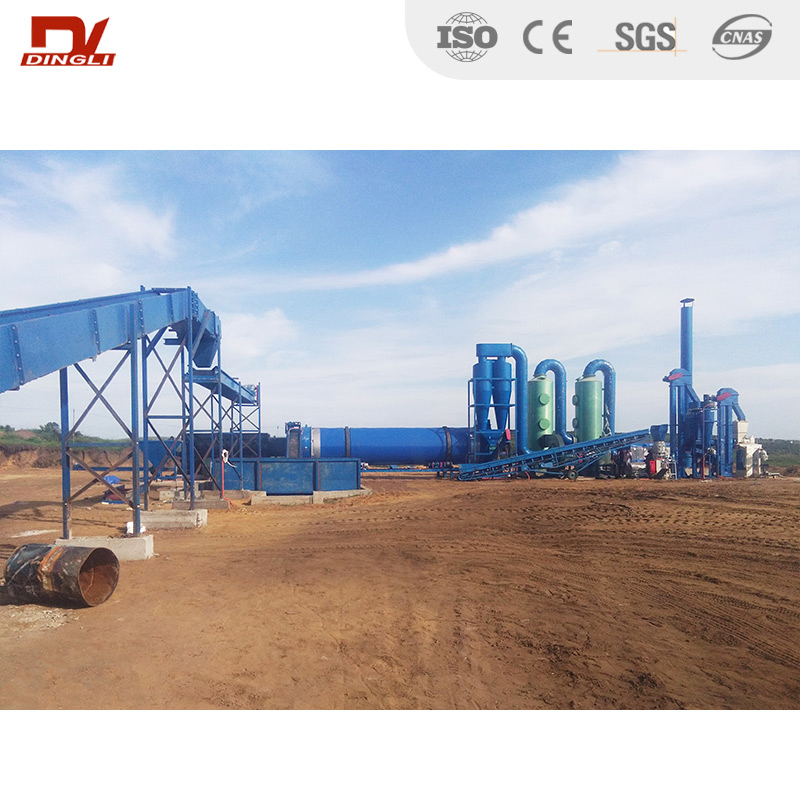

Chicken Manure Drying Granulation Equipment Line, also known as paddle agitated rotary drum dryer or rotary rake drum dryer, is custom-designed for materials with moisture content exceeding 50% that are prone to sticking. This machine addresses the "black hole" phenomenon in ordinary drums, significantly improving evaporation capacity. By incorporating high-speed rotating blades, it strengthens material grinding and decentralization, maximizing heat transfer between the material and drying air.
Unit area water evaporation capacity is 25-30kg water / m²•h, which is 1-2 times that of ordinary drum dryers. Output is increased by 50% or more, while fuel consumption is reduced by over 30%.
Product Advantages
Intelligent Control: Realizes automatic operation parameters to ensure uniform drying and stable moisture levels.
Unique Flight Design: Internal tumbling mechanism maximizes heat transfer efficiency.
Stable Drive: Uses a four-wheel drive assembly for more reliable performance.
Space Efficiency: Requires 40% less footprint and lower civil investment compared to general dryers.
High Thermal Efficiency: Exhaust temperature is kept lower than 50°C.
Variable Frequency Control: Easily adjust material flow, heat supply, and drum rotation speed.
Environmental Protection: Equipped with modular dust collectors for safe, eco-friendly operation.
Product Application
This equipment line is suitable for materials with 50-85% moisture content, including chicken manure, cow dung, organic fertilizer, sludge, bean dregs, starch residue, corn kernels, cassava residue, and brewer's grains.

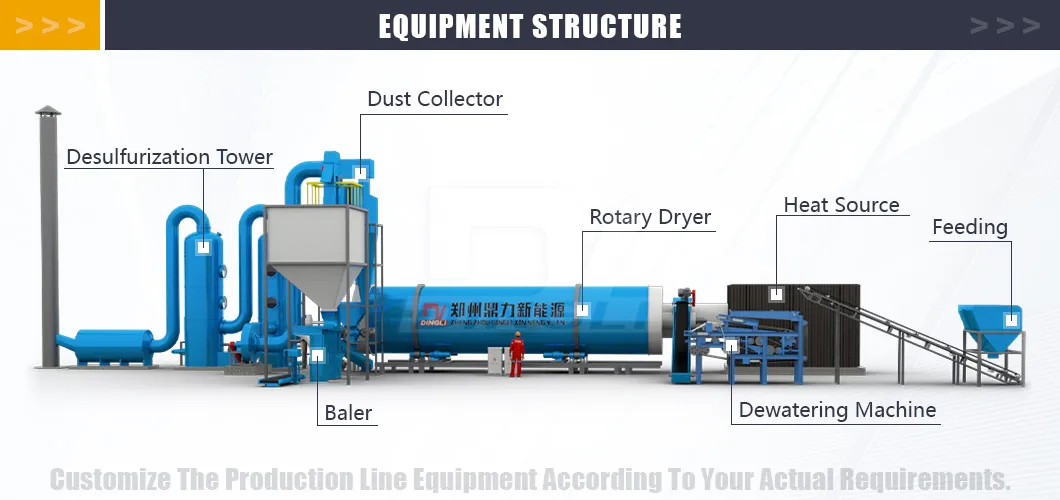

Process & Principle
Material Flow
Wet material (75-85% moisture) is dehydrated to ~65% and fed into the drum. Rotating flights shower the material through a hot air stream. A cleaning device inside prevents sticking issues.
Air Stream Flow
Air is heated to 600-850°C in the furnace. It enters the dryer to evaporate water, exiting at 55-65°C after passing through a three-layer heat transfer process. Dust is purified via cyclone and wet collectors.
Technical Parameters
| Model (DLJG) |
1208 |
1408 |
1610 |
2010 |
2210/3 |
2512/3 |
| Input Capacity (t/h) |
1.82 |
2.18 |
3.15 |
3.81 |
5.51 |
7.6 |
| Output Capacity (t/h) |
1.07 |
1.28 |
1.85 |
2.24 |
3.24 |
4.47 |
| Early Moisture (%) |
50±5% |
| Final Moisture (%) |
15% (Adjustable) |
| Total Power (KW) |
32 |
40 |
55 |
95 |
100 |
145 |
| Plant Area (M) |
5*15 |
5*15 |
6*16 |
8*18 |
8*20 |
10*22 |
Service & Support
Pre-sale:
Model selection and customized solution design.
Sale:
Contract signing, production management, and product acceptance.
After-sale:
On-site installation, device adjustment, and operator training.
Frequently Asked Questions
Q1: What range of moisture content can this machine handle?
A: The equipment is designed to process materials with an initial moisture content of 50-85%, drying them down to approximately 15% (adjustable).
Q2: How does the "paddle agitated" design improve efficiency?
A: It prevents the material from sticking and fills the "black hole" in the center of the drum, doubling the evaporation capacity compared to standard dryers.
Q3: What heating sources can be used with the dryer?
A: The system is compatible with several energy-saving hot air furnaces, including biomass, gas, and coal-fired options.
Q4: Is the operation automated?
A: Yes, it features an intelligent control system that automatically adjusts operating parameters to ensure consistent output quality.
Q5: What is the warranty for the core components?
A: The core components come with a 1-year warranty, and we provide video outgoing inspections and on-site technical support.
Q6: Do you provide installation services?
A: Yes, engineers are assigned for on-site installation, adjustment, and staff training until the customer is fully satisfied.
