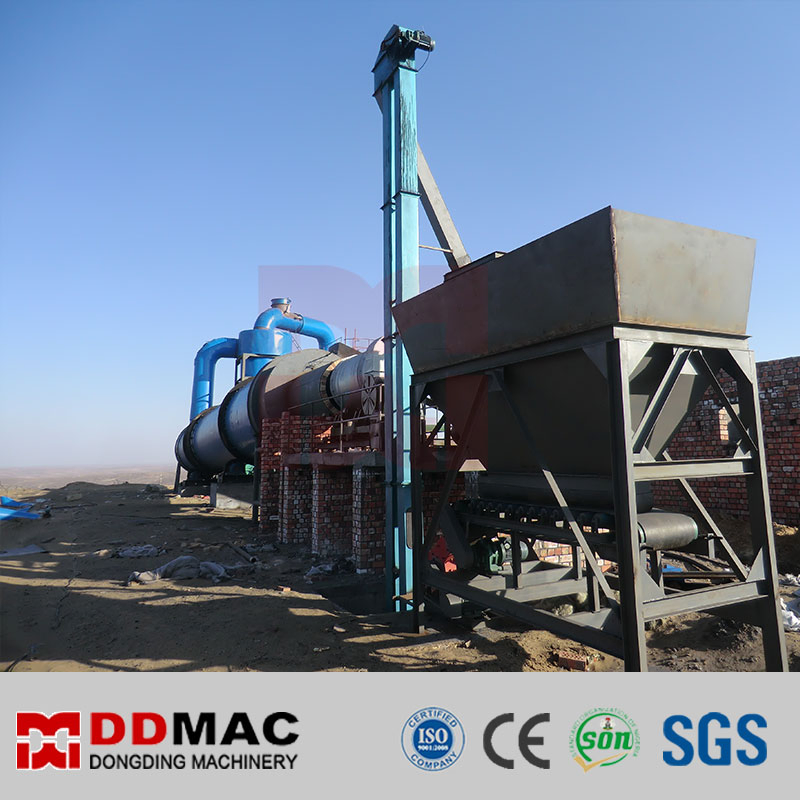

Automatic Control Continuous Sludge Drying System for Efficient Sewage Sludge Dehydration Solutions

Customization:	Available
After-sales Service:	Online Support, Field Installation
Warranty:	12 Months

Basic Information

Model NO.

DDMG

Movement Way

Combined

Atomization

Rotary Atomization

Flow

Downstream Drying

Heating Mode

Transmission

Material Status

Powder, Solution, Strap, Bulk

Drying Medium

Inactive Gas, Superheated Steam

Operation Pressure

Atmospheric Pressure

Operational Method

Continuous

Production Capacity

10 Sets Per Month

Origin

China

HS Code

8417803000

Sludge Dryer Introduction

Sludge rotary dryer is a drying equipment specially developed and designed for sludge, which has the characteristics of high moisture, high viscosity, high water holding capacity and low calorific value. A special design is made on the internal structure of the sludge dryer, which not only improves the thermal efficiency, but also effectively avoids the sticking and excessive drying of sludge in the dryer.

Advantages of Slurry Dryer

Strong overload resistance, large processing capacity, low fuel consumption and low drying cost.
Adopt computer automatic control, which can realize remote control and easy operation.
The specially designed retaining wheel structure greatly reduces the horizontal thrust caused by the tilting of the drying equipment.
Multiple heating sources available for selection.

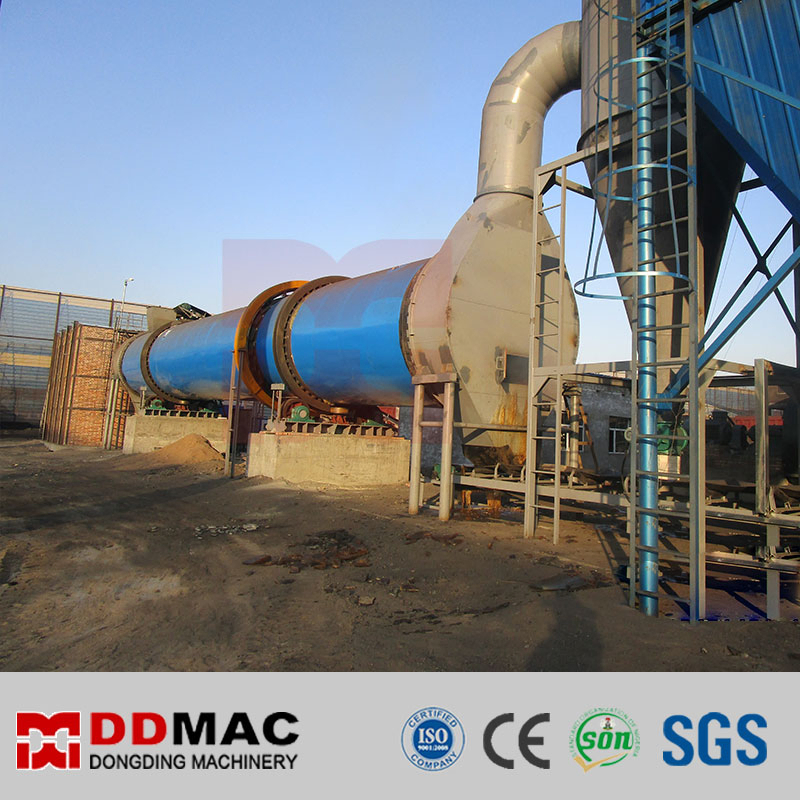

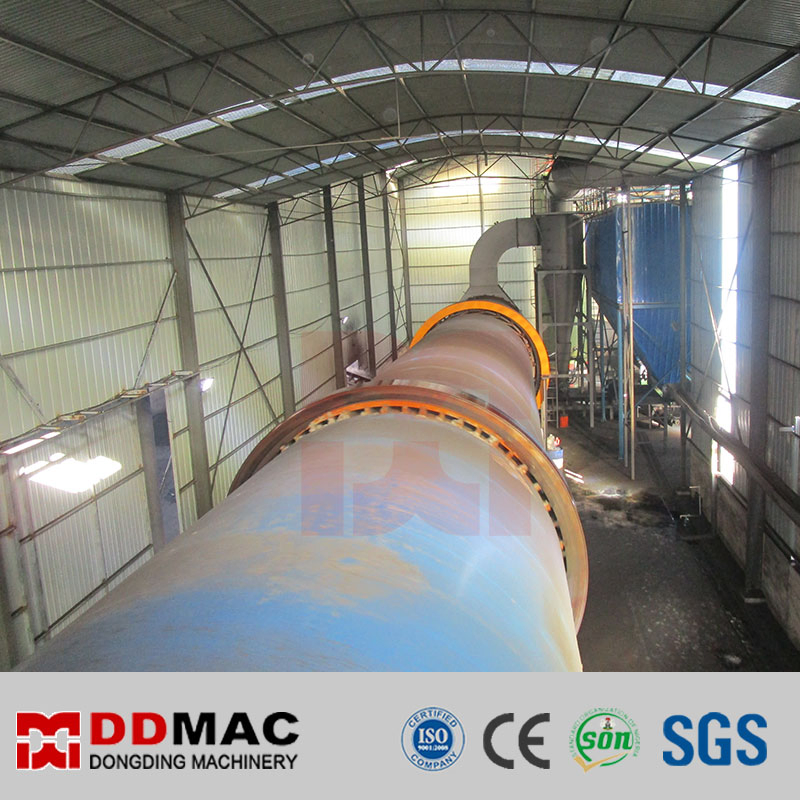

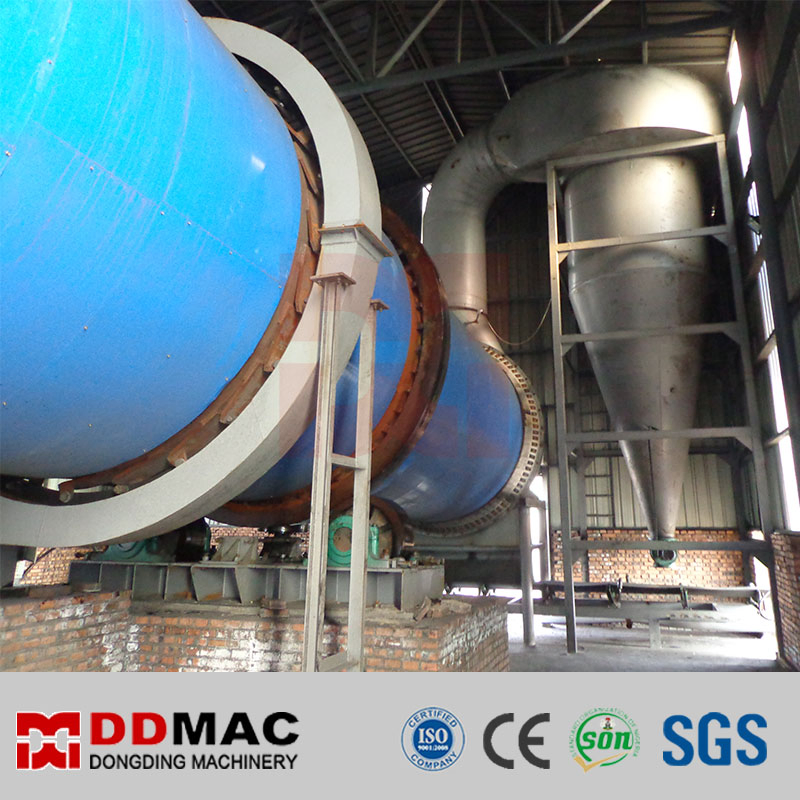

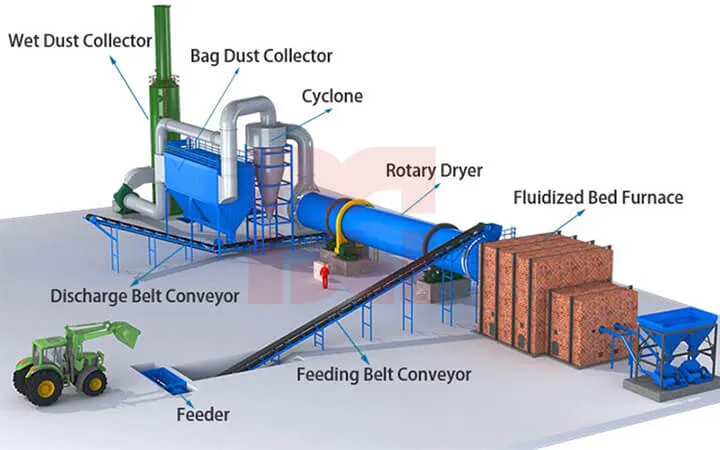

Complete Sludge Rotary Drying System

The whole sludge rotary drying system consists of the dehydrator machine, feeder, sludge rotary dryer, discharging machine, induced draft fan, cyclone dust collector and distribution cabinet, etc.

Wide Application

The sludge dryer is suitable for drying activated sludge, sewage sludge, petrochemical sludge, papermaking sludge, printing and dyeing sludge, tanning sludge, electroplating sludge, municipal sludge, biological fermentation sludge, etc. Besides, it is also applied to coal sludge drying and coal slurry drying.

Working Principle

Firstly, high moisture sludge is dewatered by the dewatering machine, then transported to the rotary drum dryer by the belt conveyor, where it fully contacts with the hot air. With the running of the rotary dryer, sludge with hot air moves to the end of dryer body. After drying, most of the dry materials will be discharged through the belt conveyor, the left material will go into the cyclone dust collector, where the dust will be collected, and then discharged through the conveyor.

Product Parameters

Model	Capacity(T/h)	Length (m)	Diameter (m)	Temperature(ºC)	Motor Power(kw)
DD1208	1.9-2.4	8	1.2	600-750	7.5
DD1210	2.4-3.0	10	1.2	600-750	7.5
DD1612	4.5-5.7	12	1.6	600-750	15
DD1812	6.5-8.1	12	1.8	600-750	18.5
DD2212	9.7-12.2	12	2.2	600-750	22
DD2418	17.4-21.7	18	2.4	600-750	37
DD2420	19.3-24.1	20	2.4	600-750	45
DD2624	27.2-34.0	24	2.6	600-750	55
DD3020	30.1-37.7	20	3.0	600-750	75
DD3225	42.9-53.6	25	3.2	600-750	90
DD3628	60.8-76.0	28	3.6	600-750	160

Packaging & Shipping

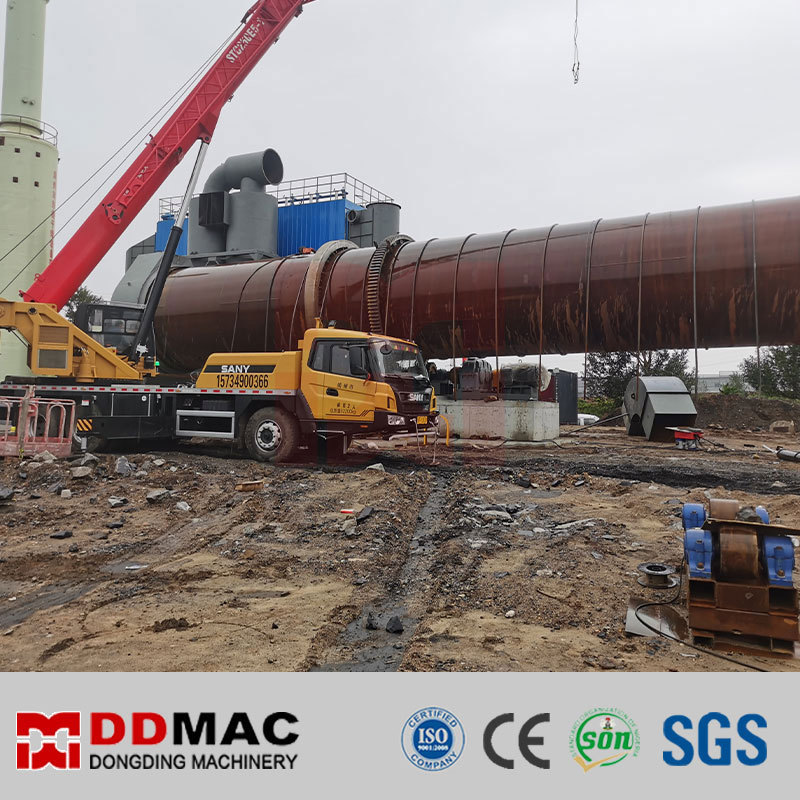

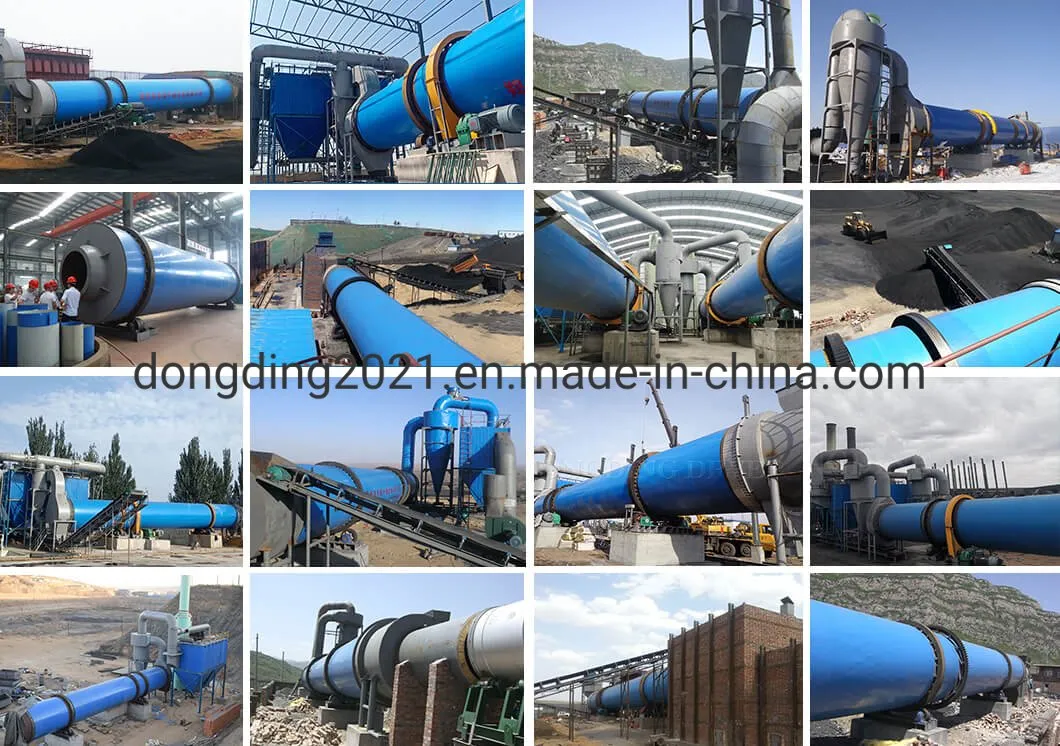

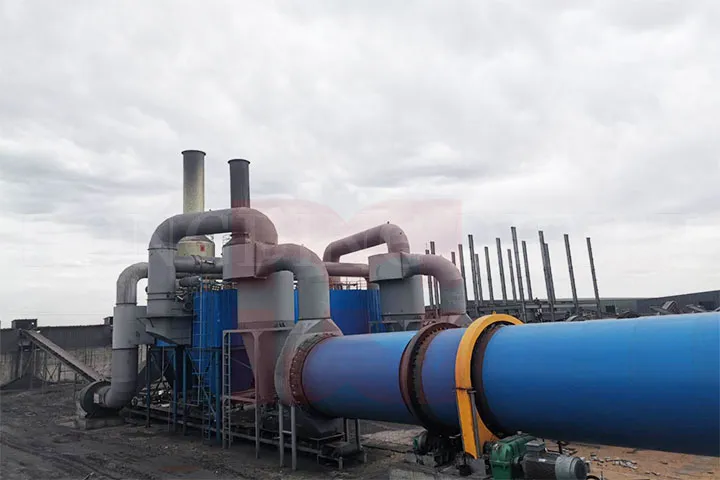

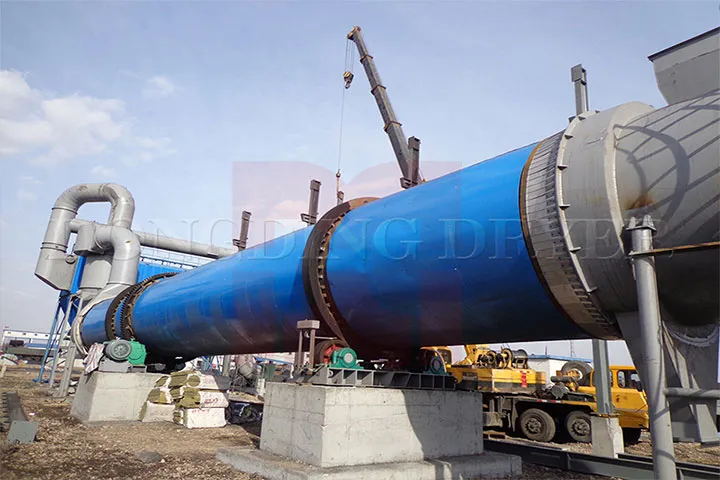

Working Site

Customer Visit

Our products have been recognized by customers globally, and successfully exported to Indonesia, South Africa, Vietnam, Thailand, Myanmar, India, Egypt and other countries and regions.

Frequently Asked Questions

What types of sludge can this rotary dryer handle?

The system is highly versatile and suitable for activated sludge, sewage sludge, petrochemical, papermaking, printing, dyeing, tanning, and municipal sludge, as well as coal slurry.

How does the machine prevent sludge from sticking to the internal walls?

The dryer features a specially designed internal structure and combined movement way specifically optimized for high-viscosity materials to prevent sticking and ensure uniform drying.

What heating sources can be used with the sludge dryer?

The system supports multiple heating sources, providing flexibility based on local availability and cost-efficiency requirements.

Is the operation of the drying system automated?

Yes, the system adopts computer automatic control, allowing for remote monitoring, easy operation, and precise management of the drying process.

Can the capacity be customized for specific project needs?

Absolutely. While we have standard models ranging from 1.9 to 76.0 T/h, we can customize the specifications and capacity based on your specific requirements.

What are the environmental features of this drying system?

The system includes a cyclone dust collector to capture fine particles and can utilize inactive gas or superheated steam as drying mediums to ensure safe and efficient operation.
