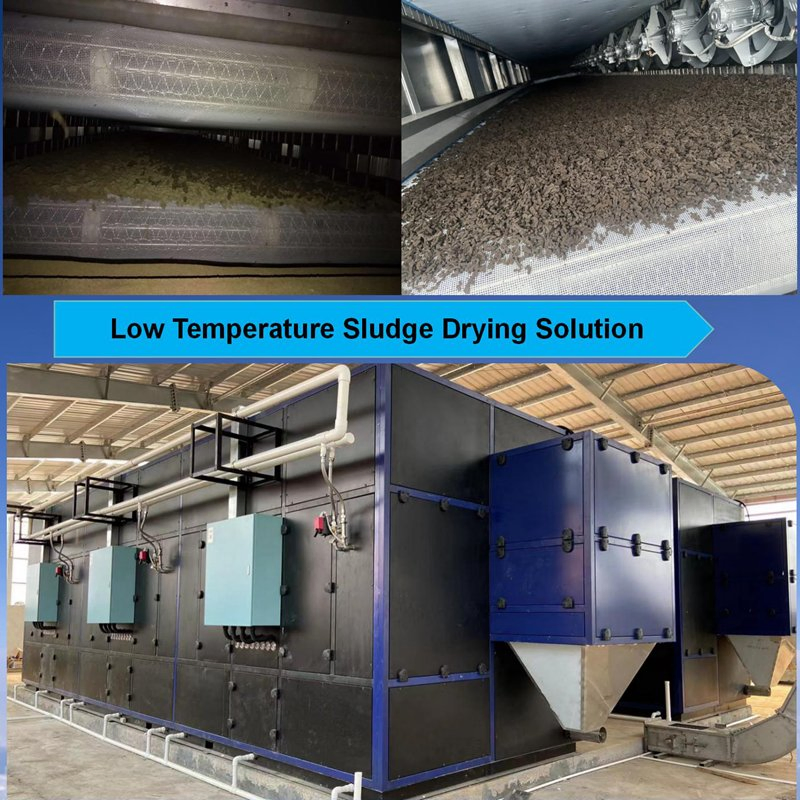

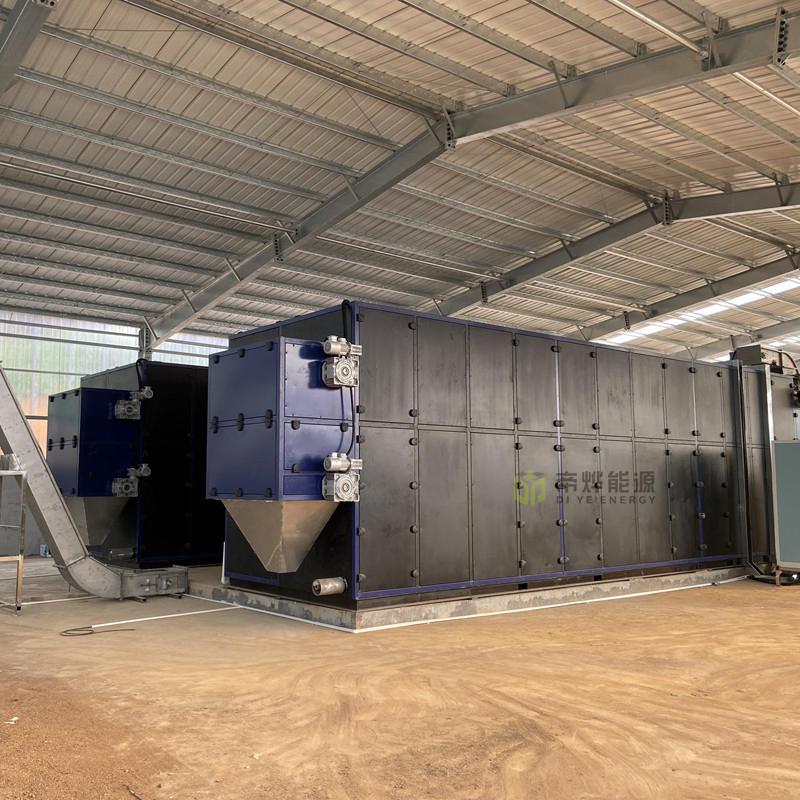

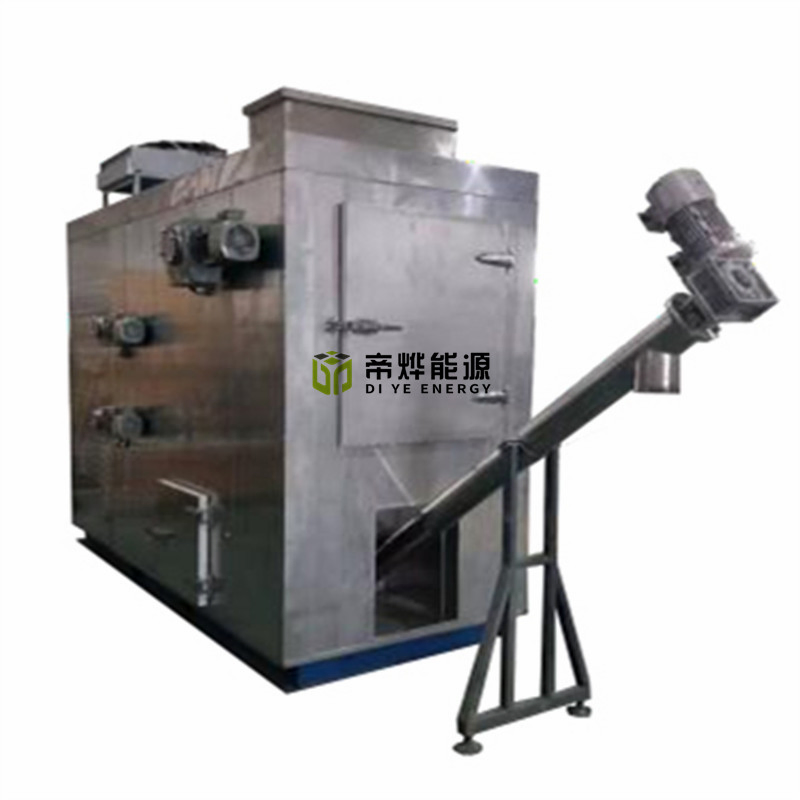

Dewatering Dryer Machinery Sludge Drying System for Municipal Sludge Decrement and Innoxious Disposal

1 / 5

Dewatering Dryer Machinery Sludge Drying System for Municipal Sludge Decrement and Innoxious Disposal

Customization:	Available
After-sales Service:	on-Site Service&Online Support
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

DY-14400WN

Type

Sludge Dewatering Machine

Method

Physical Treatment

Usage

Industrial

Running Power

162kw

Control

Touch Screen, PLC

Voltage/Frequency

380V 3Phase/50Hz

Cooling Method

Air-Cooled / Water-Cooled

Drying Temp

Return: 48~56℃; Supply: 60~80℃

Wet Sludge Moisture

30%-83% (Customized)

Dried Sludge Moisture

10%-50%

Standard Removal

12000kg/24h

Product Description

Dewatering Dryer Machinery Sludge Drying System for Municipal Sludge Decrement and Innoxious Disposal

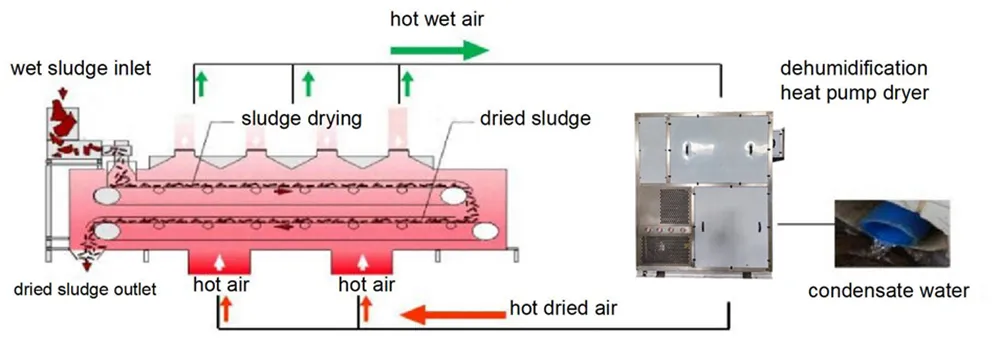

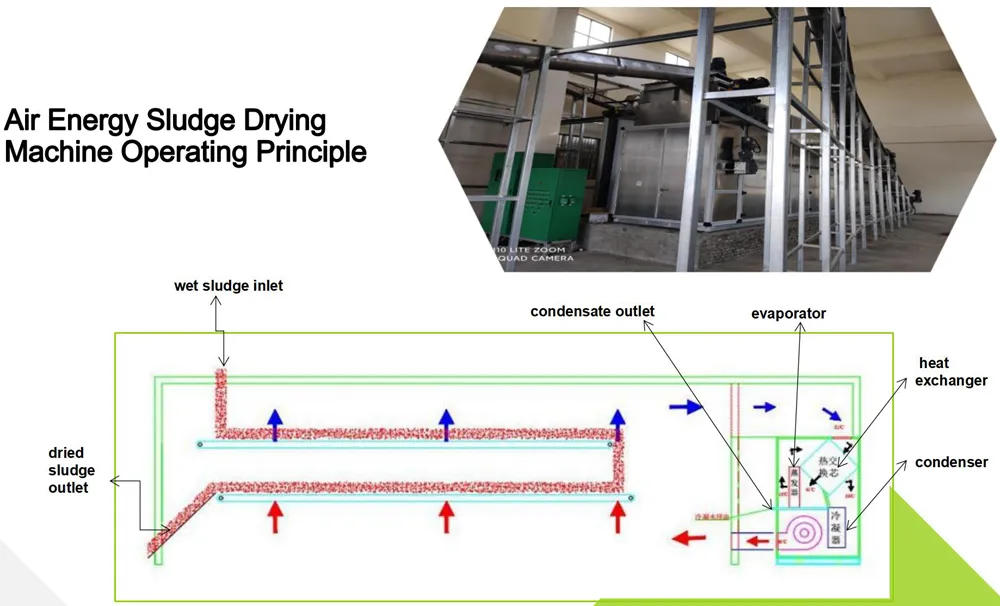

Operating Principle

Wet sludge (60%-80% moisture) is crushed, cut, and squeezed into strips before entry.

Wet low-temperature circulating air passes through the heat exchanger via a circulating fan.

Air temperature is reduced in the evaporator; condensate water forms below the dew point.

Air from the intermediate cooler exchanges heat energy with the heat pump to increase temperature.

Circulating air becomes hot and dry after passing through the condenser.

Hot dry air circulates continuously, reducing sludge moisture content to 10%-30%.

Technical Parameters

Model Number	DY-1200WN	DY-2400WN	DY-4800WN	DY-9600WN	DY-14400WN	DY-24000WN
Standard Removal	1000kg/24h	2000kg/24h	4000kg/24h	8000kg/24h	12000kg/24h	20000kg/24h
Running Power	13.5Kw	27Kw	54Kw	108Kw	162Kw	270Kw
Compressor	1pc	2pcs	4pcs	8pcs	12pcs	20pcs
Voltage	380V 3H/50HZ
Dimensions(mm)	350014002300	320030003300	480030003300	810030003300	1140030003300	1800030003300

Core Advantages

High Automation: Continuous automatic operation reduces manpower and costs.
Energy Saving: Closed design with 100% heat recovery technology; no heat loss.
Eco-Friendly: Moisture discharged as condensate; no exhaust gas or secondary pollution.
Low Temperature Safety: Operating below 70ºC eliminates explosion and toxicity risks.

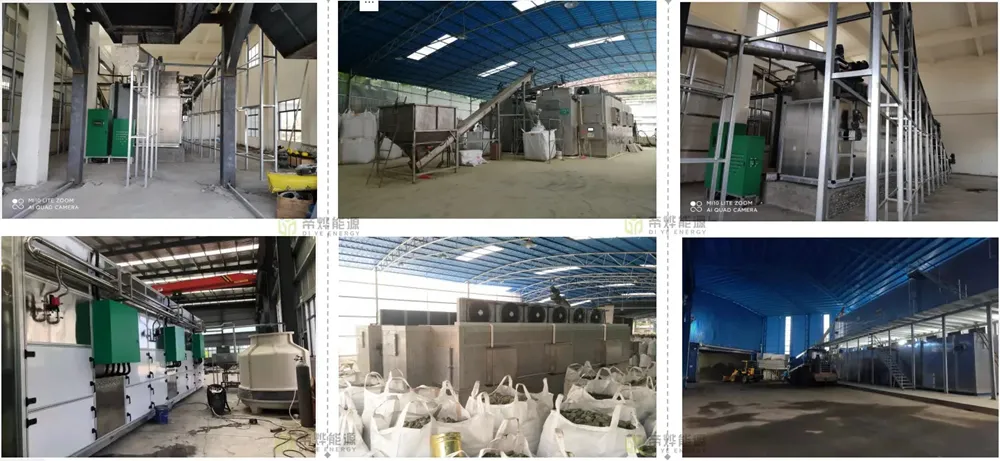

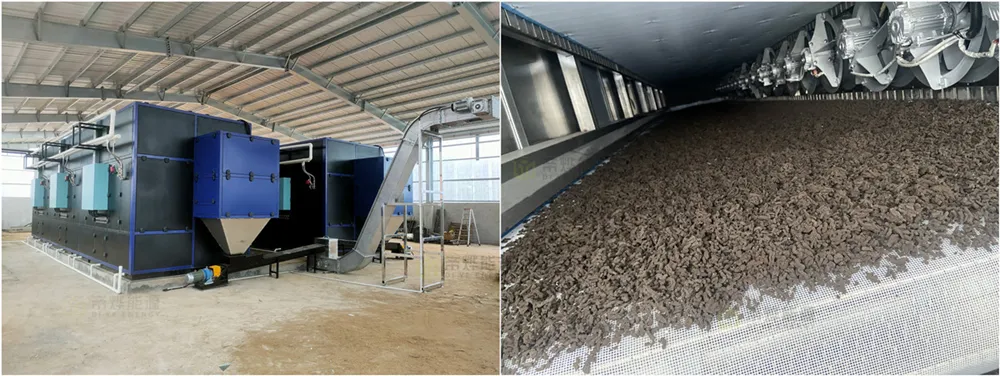

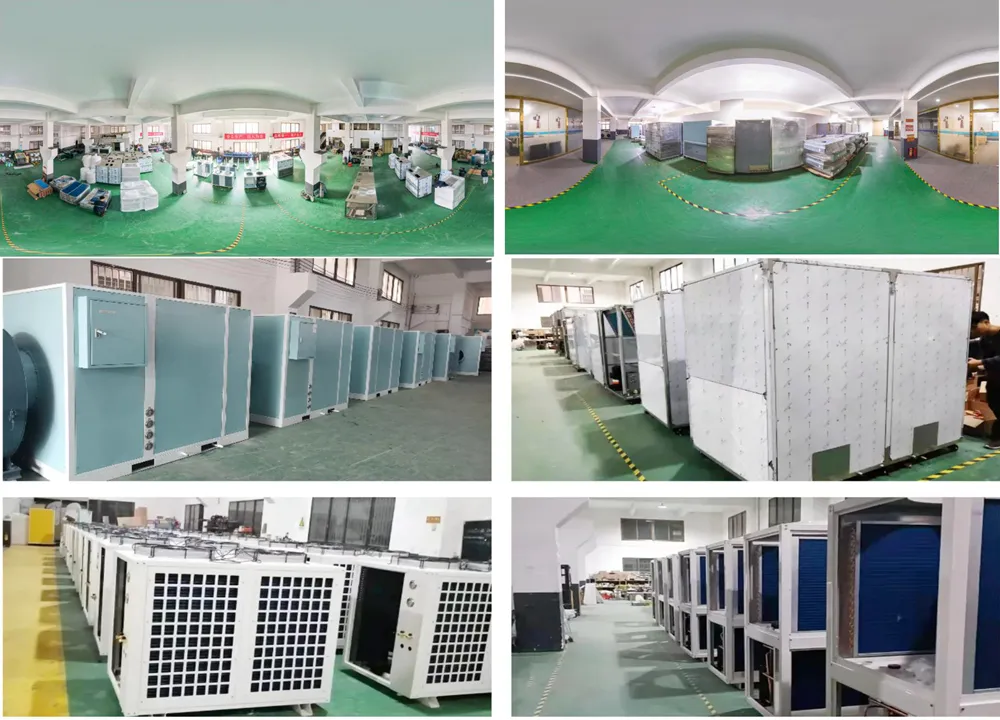

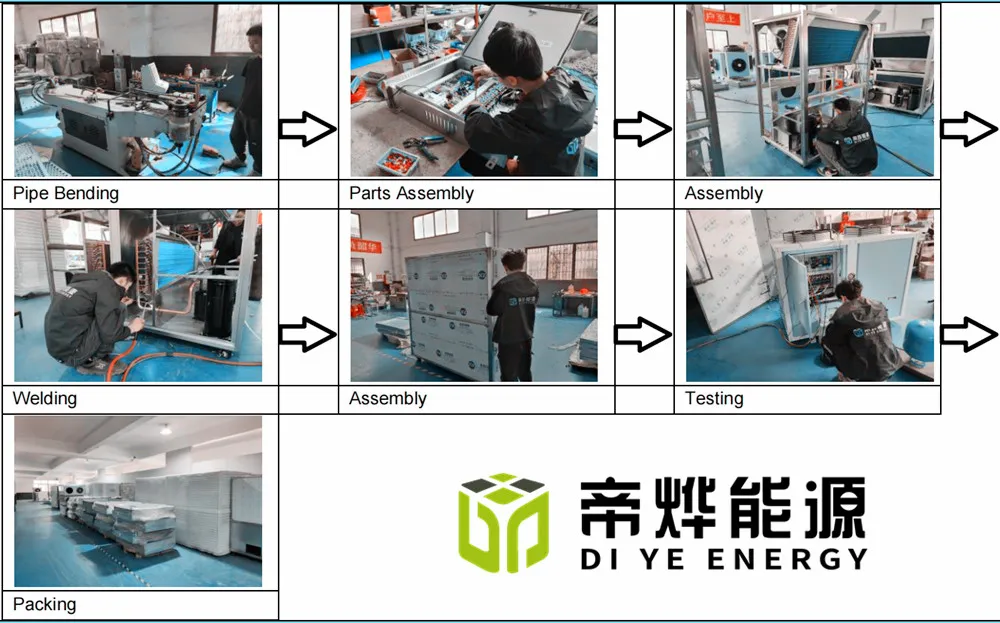

Workflow & Production

Certifications & Packaging

Our Services

Order Process: INQUIRY → QUOTATION → AGREEMENT → ORDER CONFIRM → PRODUCTION → PAYMENT → DELIVERY → INSTALLATION → OPERATION

• OEM & ODM Support
• One-year warranty with lifetime technical support
• Technical assistance for installation and maintenance

Frequently Asked Questions

Q1: How much can the sludge volume be reduced? A: The moisture content can drop from 80% to 10%-30%, resulting in a total volume reduction of up to 80%.

Q2: What is the operating cost for sludge drying? A: The low-temperature heat pump technology is highly efficient, with operating costs as low as 13.5kw/h for processing per ton.

Q3: Is the drying process safe? A: Yes, the drying temperature is kept below 70ºC, significantly reducing risks of explosion or volatilization of toxic substances.

Q4: Does the system produce odor or exhaust gas? A: No. The system uses a closed-loop design. All moisture is discharged as condensate water and the air is fully recycled.

Q5: What control system is used? A: The equipment is controlled via a Touch Screen and PLC Programmed Controller for fully automatic operation.

Q6: What is the power requirement? A: The standard power supply requirement is 380V, 3 Phase, 50Hz.
