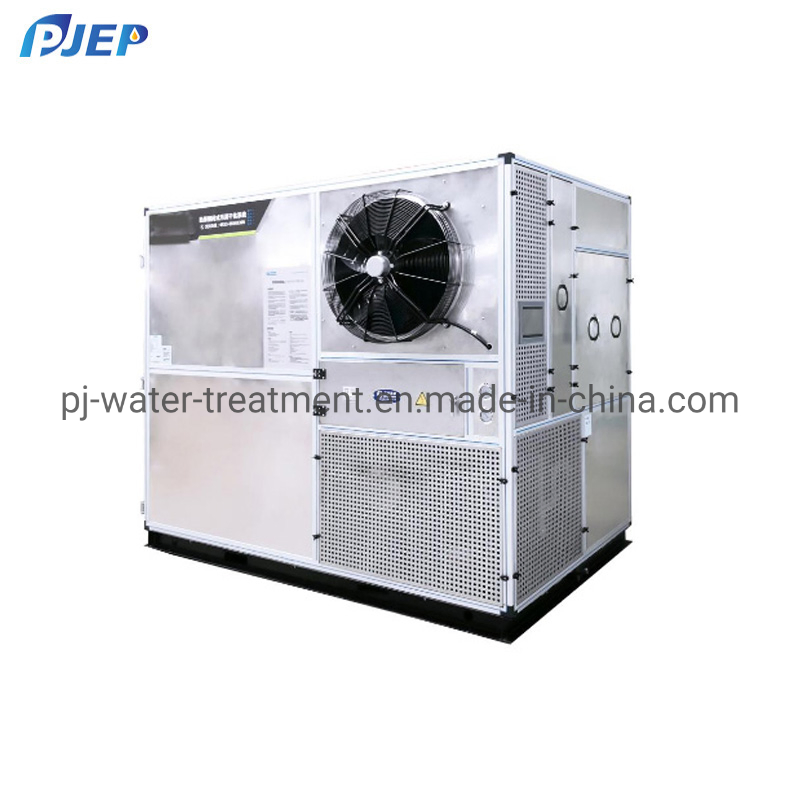

Heat Pump Van Sludge Dryer Sludge Drying System

1 / 1

Heat Pump Van Sludge Dryer Sludge Drying System

Customization:	Available
After-sales Service:	Engineers Available for Technology Assistence
Warranty:	12 Months

Send Inquiry

Product Description

Basic Info

Model NO.

Method

Physical Treatment

Usage

Industrial, Agriculture, Hospital, Municipal Sewage, Petrolchemical, Slaughter

Certificate

ISO9001

Transport Package

Wooden Case

Capacity

3000 Sets/Year

Product Description

The heat pump type van sludge drying system is a standardized, high-efficiency solution for sludge treatment. Utilizing a complex combination of powerful dehumidification and targeted air pathways, the system delivers consistent and reproducible drying results. Operated in a completely closed system, it remains independent of environmental factors and functions in fully automatic mode via electronic humidity control.

Core Characteristics

💧 Deep Dehydration

Multi-stage energy treatment with reduction capacity up to more than 80%, breaking technical bottlenecks of high water content in traditional modes.

⚡ Efficient Dehumidifying

Energy-saving design where each kilowatt of power dehydration reaches over 4 kg/h, saving more than 50% in costs compared to traditional equipment.

♻️ Closed Circulation

Fully closed drying design with no odor discharge. No need for expensive deodorization systems; low condensate COD and simple treatment.

🛡️ Safe & Dust-Free

Low-temperature operation (outlet < 48°C) ensures no dust or explosion risks. Safe for environmental protection and direct storage.

⚙️ Flexible Adjustment

Freely set drying time and temperature to achieve precise water content requirements, solving the uncertainty of traditional drying.

🏗️ Durable Construction

Comprehensive anti-corrosion design ensures high product quality and a longer service life across various industrial applications.

Technical Parameters

Model KC-	10IIJ4d	18IIJ4d	33IIJ4d	38IIJ4d
Standard water reduction (kg/24h)	200	400	800	900
Water removal capacity/h	8-15kg	15-25kg	30-35kg	30-35kg
Operation power (kW)	3.5	6	12	14
Energy consumption (kg.h2O/KW.h)	2.0~4.0
Hopper outside size (mm)	800800750	9008601000	125012501250	125012501250
Electrical source	380V/3N ~ 50Hz
Drying temperature (ºC)	40~50ºC (return) / 60~80ºC (deliver)
Dry material water content	10%~40%
External dimensions (mm)	170015001700	211816222000	280019002300	280019002300
Weight (kg)	650	1000	1550	1650
