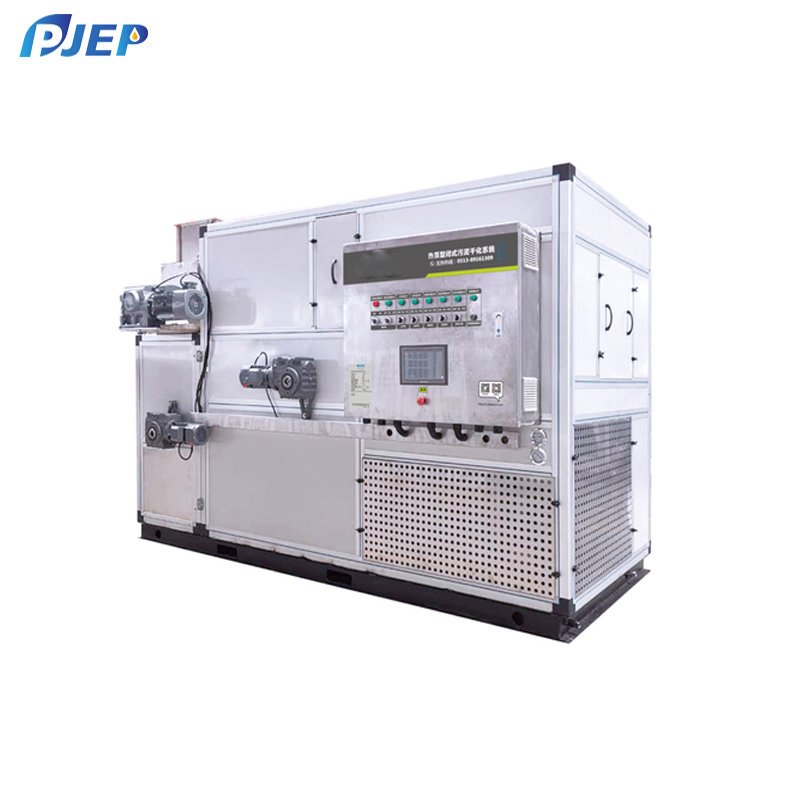

Heat Pump-Type Closed Sludge Drying System

Customization:	Available
After-sales Service:	Engineers Available for Technology Assistence
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO.

KC/SC

Type

Sludge Dryer

Method

Physical Treatment

Usage

Industrial, Agriculture, Hospital, Municipal Sewage, Petrolchemical, Slaughter

Certificate

ISO9001

Transport Package

Wooden Case

Production Capacity

3000 Sets/Year

Product Description

Heat pump-type closed sludge drying system is a standardized and efficient solution for sludge treatment. It employs a complex combination of powerful dehumidification and targeted air pathways to obtain consistent and reproducible drying results. The system operates in fully automatic mode through electronic humidity control and is completely independent of environmental factors.

Deep Dehydration & Infinite Reduction Multi-stage energy comprehensive treatment with strong drying reduction capacity (up to more than 80%). It breaks the technical bottleneck of high water content in traditional drying modes.

Efficient Dehumidifying & Low Cost Innovative energy-saving design where dehydration can reach more than 4 kg per hour per kilowatt. Saves more than 50% cost compared to traditional low-temperature drying equipment.

Closed Circulation & Eco-Friendly Fully closed design with no odor discharge. No need for expensive deodorization systems; low condensate COD and simple treatment.

Heat Balance & Energy Saving Utilizes comprehensive energy application technology with cold and heat balance treatment. No heat loss, ensuring superior system efficiency.

Dust-Free & Explosion-Proof Low-temperature operation ensures safety with no dust or explosion risks. Material outlet temperature is less than 48°C, requiring no secondary cooling.

Flexible & Adjustable Settings Freely set drying time and temperature to meet specific water content requirements. Control drying degrees with high accuracy.

Technical Parameters

Model	KC-20IIJ4dX	SC-25IIJ4dX	KC-40IIJ4dX	SC-50IIJ4dX	KC-80IIJ4dX	SC-100IIJ4dX
Standard Water Reduction (kg/24h)	480	600	960	1200	1920	2400
Water Removal Capacity (kg/h)	20	25	40	50	80	100
Operation Power (kW)	6	8	12	14	23	26
Cooling Method	Air Cooling	Water Cooling	Air Cooling	Water Cooling	Air Cooling	Water Cooling
Drying Temperature	48~56ºC (Return Wind) / 65~80ºC (Wind Deliver)
