| Model NO. | 1.0×10-3.6×36m |
| Transport Package | Packing in Standard Containers or Meet Your Demand |
| Specification | ISO9001, ISO14000, CE |
| Production Capacity | 1-40t/H |

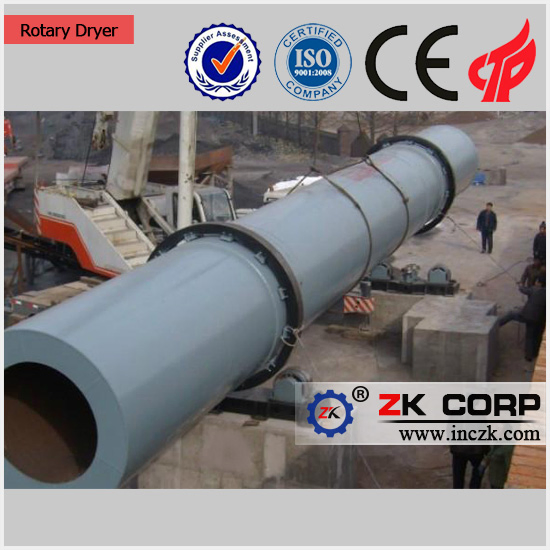

Rotary drier is widely used for drying materials in industries like cement, mine, building materials, chemistry, food and fertilizer, etc. This rotary drying machine comes with thermocouples on the feeding and discharging device to control the temperature.

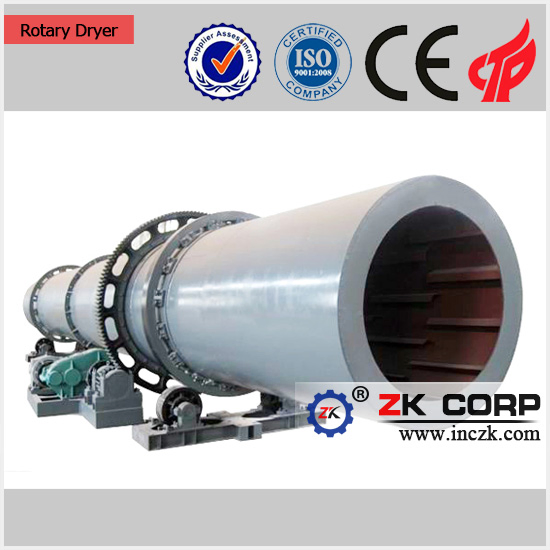

Rotary drier is mainly composed of cylinder, under frame, feeding and discharging devices, transmission device, gear cover, etc. It adopts new lifting plate, which is of functions like guiding, current-sharing, and material rising. The materials are raised and evenly drop so that they are in full contact with heat for better drying efficiency. Our rotary drier is designed with the best working conditions, which enables it to save 10-15% of energy and increase 10-15% of productivity compared with common dryers.
Sludge, fly ash, coal powder, slag.
Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator. The barrel is installed with slope to horizontal line. Materials enter the barrel from the higher side, and hot air enters the barrel from the lower side, materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely. So drying efficiency is improved.

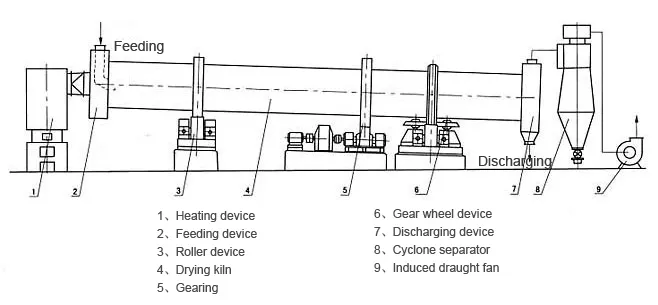

Sludge dryer is mainly compose of driving device, supporting roller, thrust roller, cylinder, kiln inlet, kiln outlet and sealing device.
| MODEL | CAPACITY(t/h) | SLOPE(%) | GEARBOX | MOTOR | POWER(kW) |
|---|---|---|---|---|---|
| Ø1.0×10m | 1-2 | 5 | ZQ400 | YCT200-4B | 7.5 |
| Ø1.2×12m | 2-3 | 5 | ZQ500 | YCT225-4A | 11 |
| Ø1.5×15m | 3-5 | 5 | ZQ500 | YCT225-4B | 15 |
| Ø1.8×18m | 4-6 | 4 | ZQ750 | YCT250-4B | 22 |
| Ø2.0×20m | 7-9 | 3.5 | ZQ750 | YCT280-4A | 30 |
| Ø2.2×22m | 8-10 | 3.5 | ZQ850 | YCT315-4A | 37 |
| Ø2.4×24m | 12-15 | 3.5 | ZQ850 | YCT315-4B | 45 |
| Ø2.8×28m | 16-22 | 3.5 | ZS145 | YCT355-4A | 55 |
| Ø3.0×30m | 20-25 | 3.5 | ZS165 | YCT355-4B | 75 |
| Ø3.2×32m | 28-32 | 3.5 | ZL130 | YCT355-4C | 90 |
| Ø3.6×36m | 38-40 | 3.5 | ZL130 | YVF2-315L2-6 | 132 |
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
One-year warrantee to make sure your machine runs consistently. We keep certain inventory levels of spare parts for immediate shipment.
