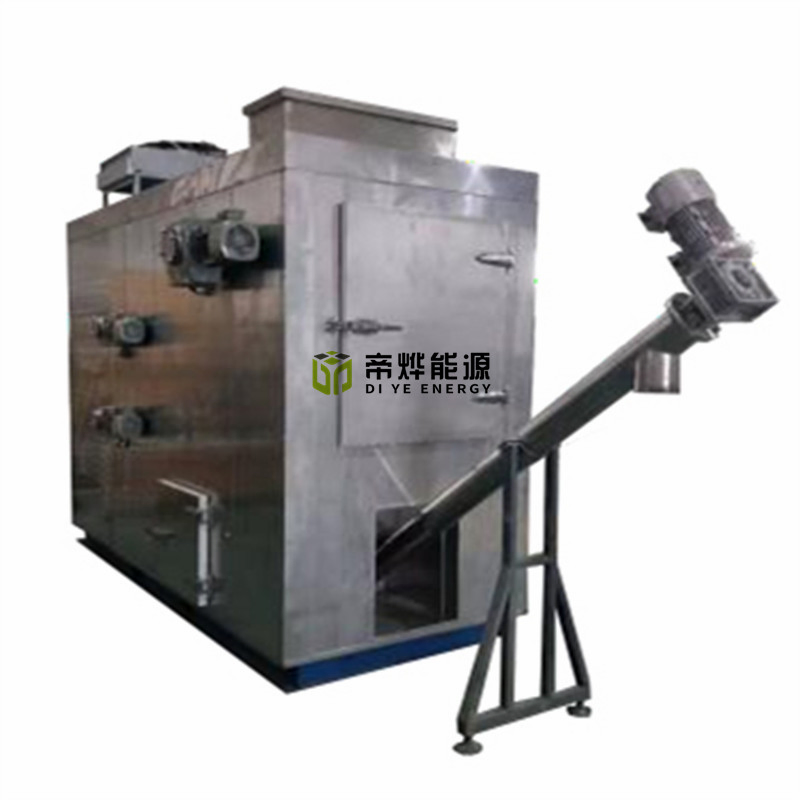

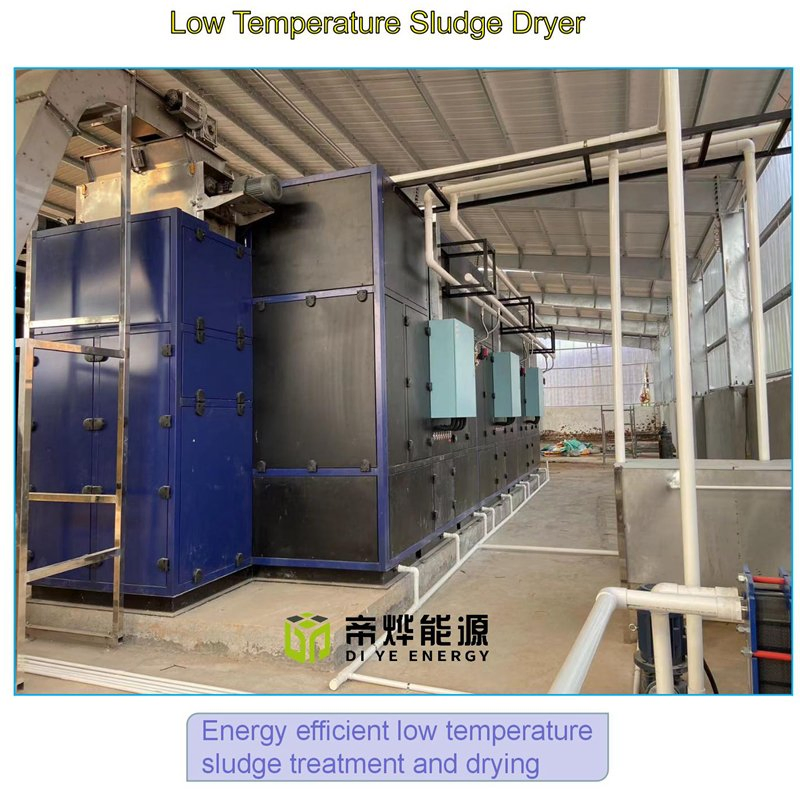

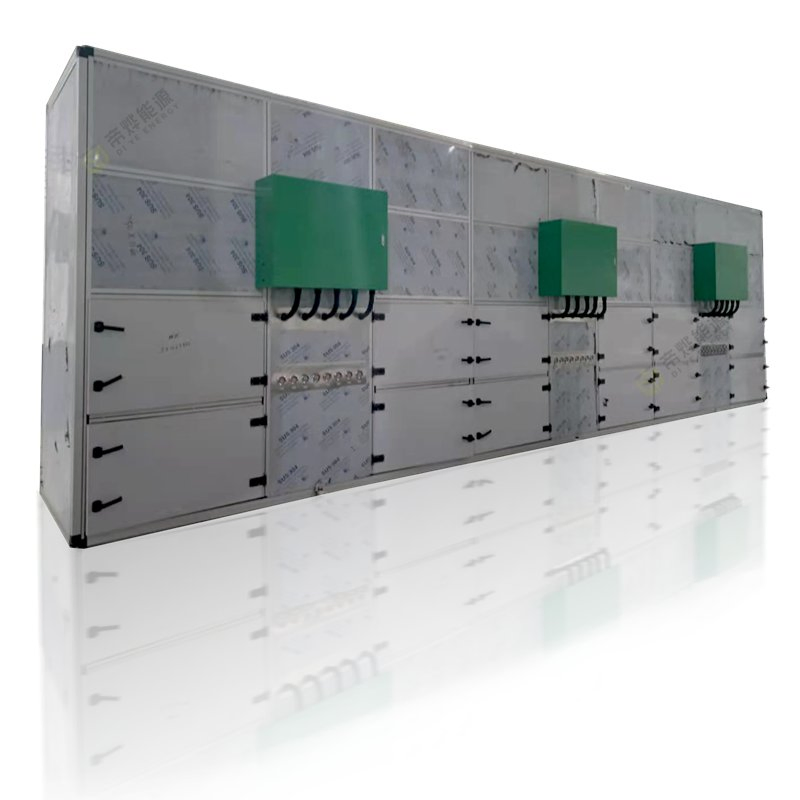

Industry Plants Sludge Drying Machine System for Drying Slurry

1 / 5

Industry Plants Sludge Drying Machine System for Drying Slurry

Customization:	Available
After-sales Service:	on-Site Service&Online Support
Warranty:	1 Year

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

DY-24000WN

Type

Sludge Dewatering Machine

Method

Physical Treatment

Usage

Industrial

Running Power

270kw

Control

Touch Screen, PLC

Voltage

380V 3h/50Hz

Cooling

Air-Cooled / Water-Cooled

Drying Temp

48~80℃

Wet Moisture

30%-83%

Dried Moisture

10%-50%

Refrigerant

R22/R134A

HS Code

8419399050

Package Size

1900cm * 310cm * 340cm

⚙️

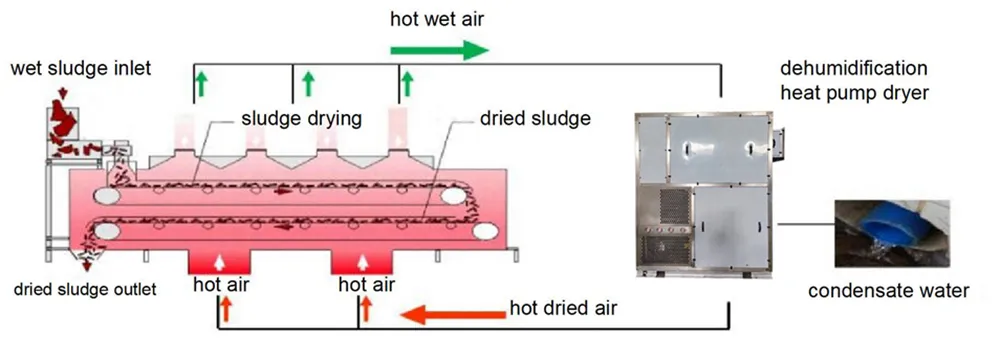

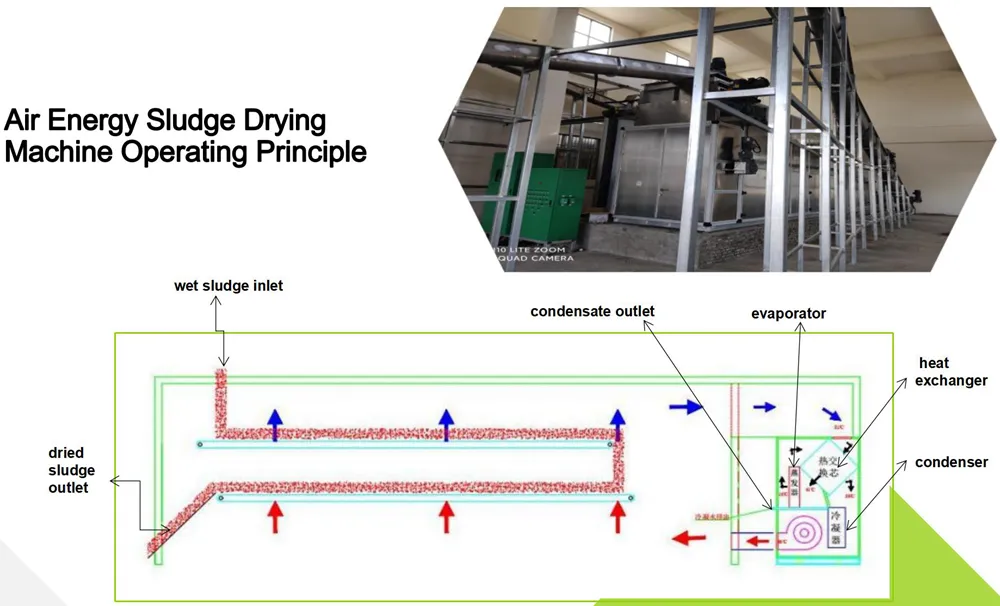

Operating Principle

Industry Plants Sludge Drying Machine System for Drying Slurry

Wet sludge (60%-80%) is crushed and squeezed into strips before entry.

Wet low-temperature circulating air enters the heat pump via fan.

Air cools in the heat exchanger, turning into condensate water below dew point.

Evaporated air from the cooler exchanges energy, increasing temperature.

Circulating air becomes hot and dry after passing through the condenser.

Continuous circulation reduces sludge moisture content to 10%-30%.

📋

Technical Parameters

Model Number	DY-1200WN	DY-2400WN	DY-4800WN	DY-9600WN	DY-14400WN	DY-24000WN
Standard Removal (24h)	1000kg	2000kg	4000kg	8000kg	12000kg	20000kg
Moisture Removal/h	42kg/h	84kg/h	168kg/h	336kg/h	504kg/h	840kg/h
Running Power	13.5Kw	27Kw	54Kw	108Kw	162Kw	270Kw
Compressors	1pc	2pcs	4pcs	8pcs	12pcs	20pcs
Cooling Water Flow	0.5m³/h	1m³/h	2m³/h	4m³/h	6m³/h	10m³/h
Dimensions (LWH)	3.5m1.4m2.3m	3.2m3.0m3.3m	4.8m3.0m3.3m	8.1m3.0m3.3m	11.4m3.0m3.3m	18m3.0m3.3m

💎

Key Advantages

High Automation: Continuous automatic operation reduces manpower investment and operational costs.

Eco-Friendly: Closed design with heat recovery. 100% heat utilization with zero exhaust gas emissions.

Low Energy Consumption: Operating costs as low as 13.5kw/h for drying wet sludge per ton.

Enhanced Safety: Drying temperatures below 70ºC eliminate explosion and toxic volatilization risks.

🏢

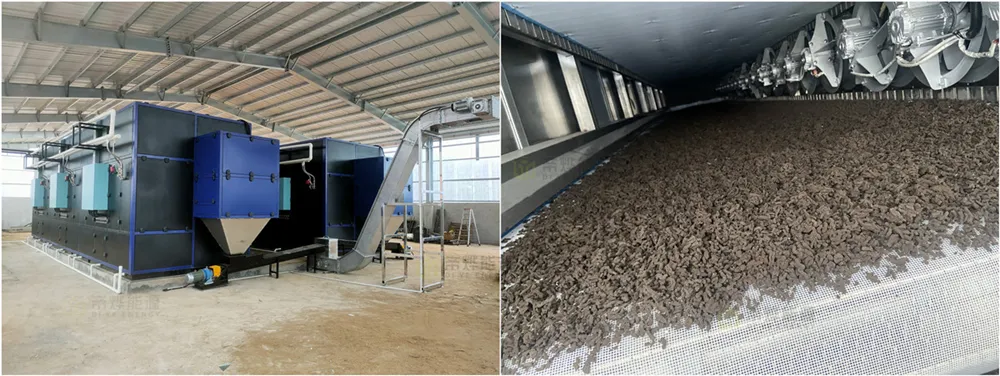

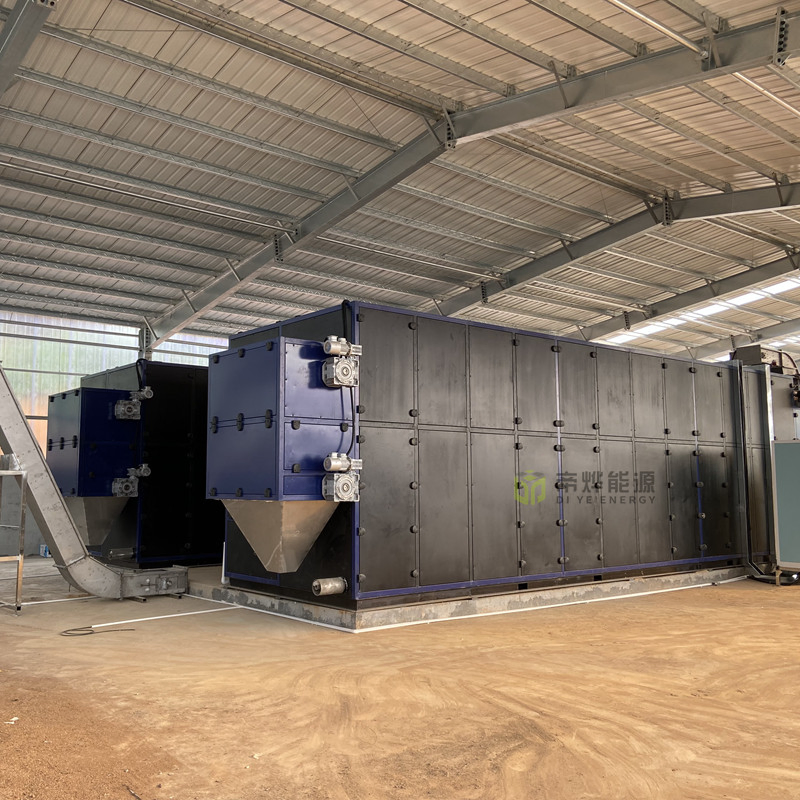

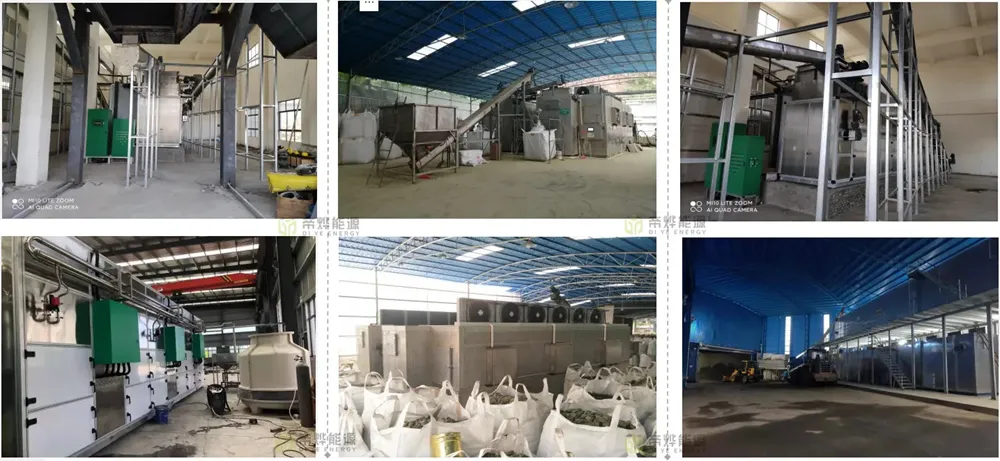

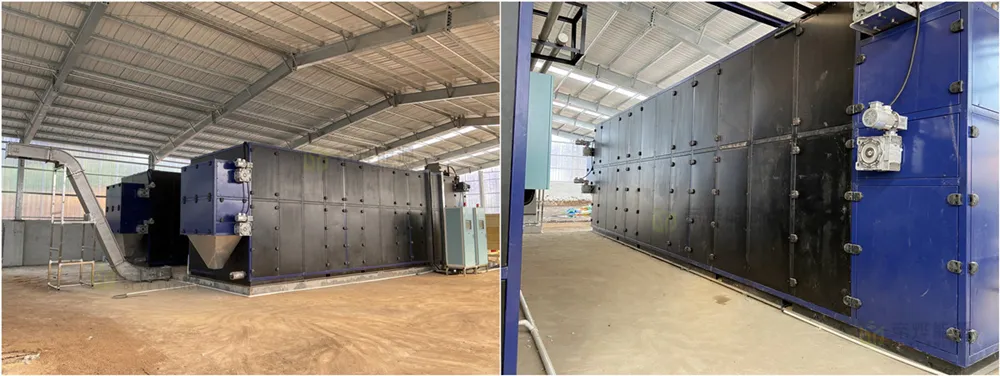

Real Projects & Workflow

🏭

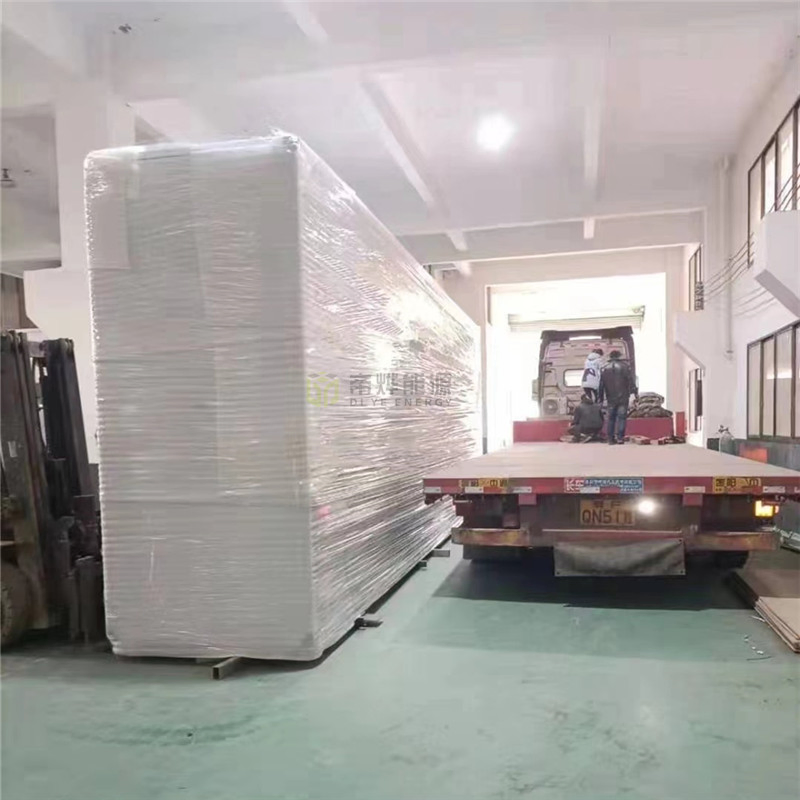

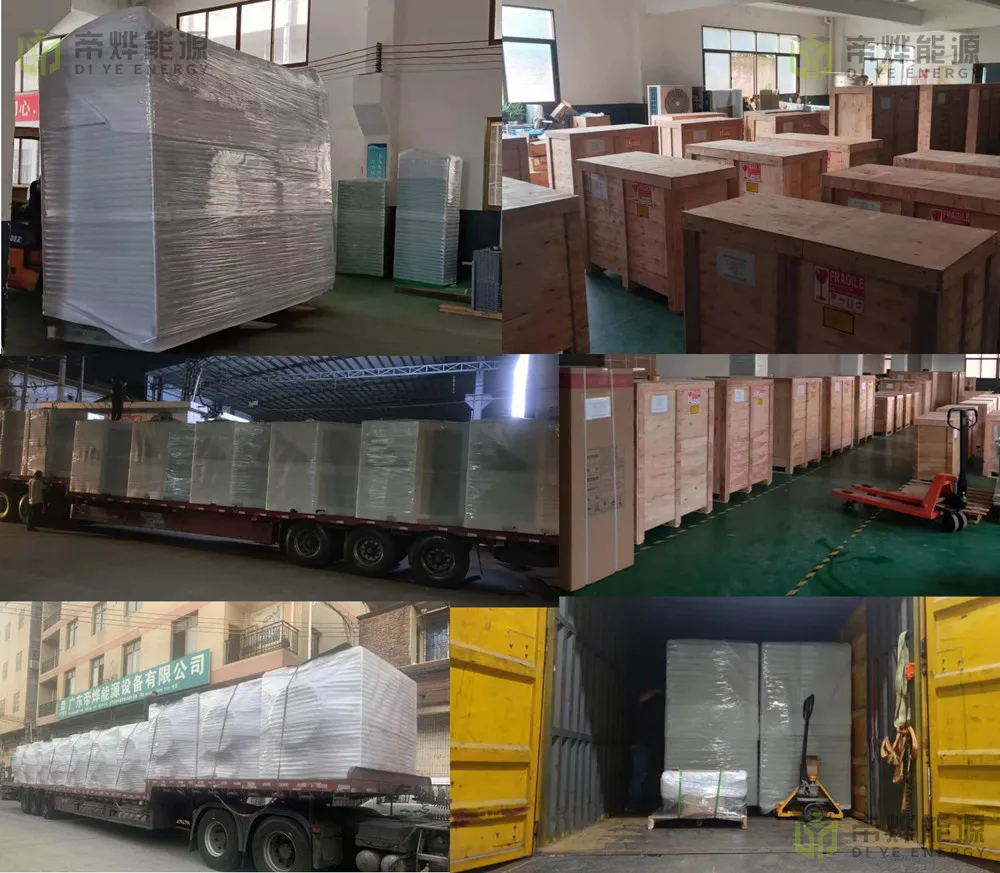

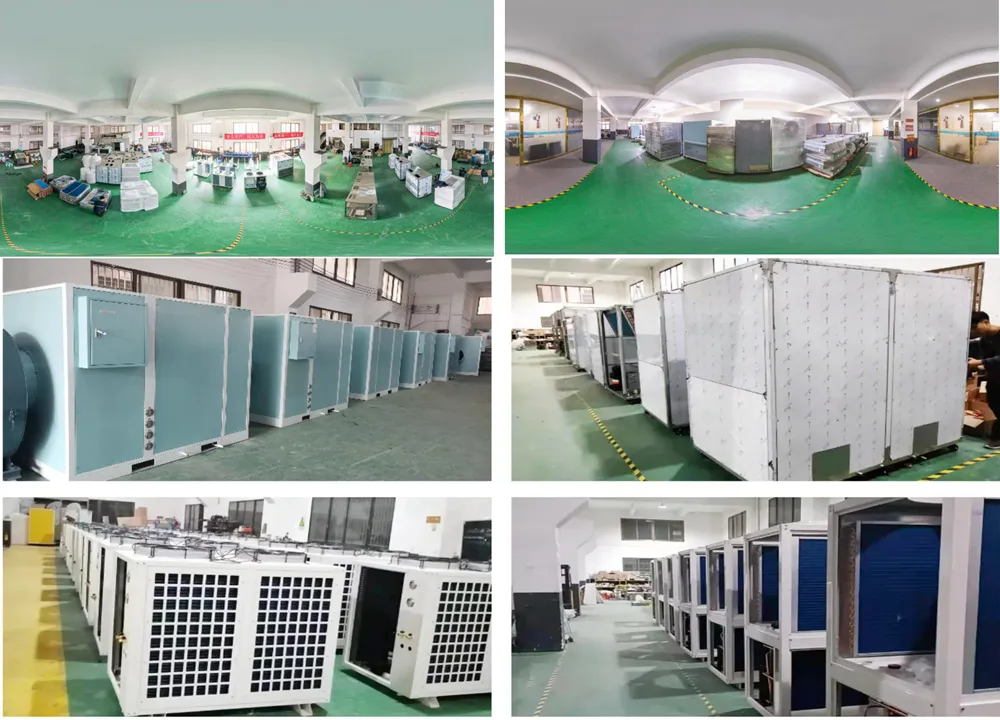

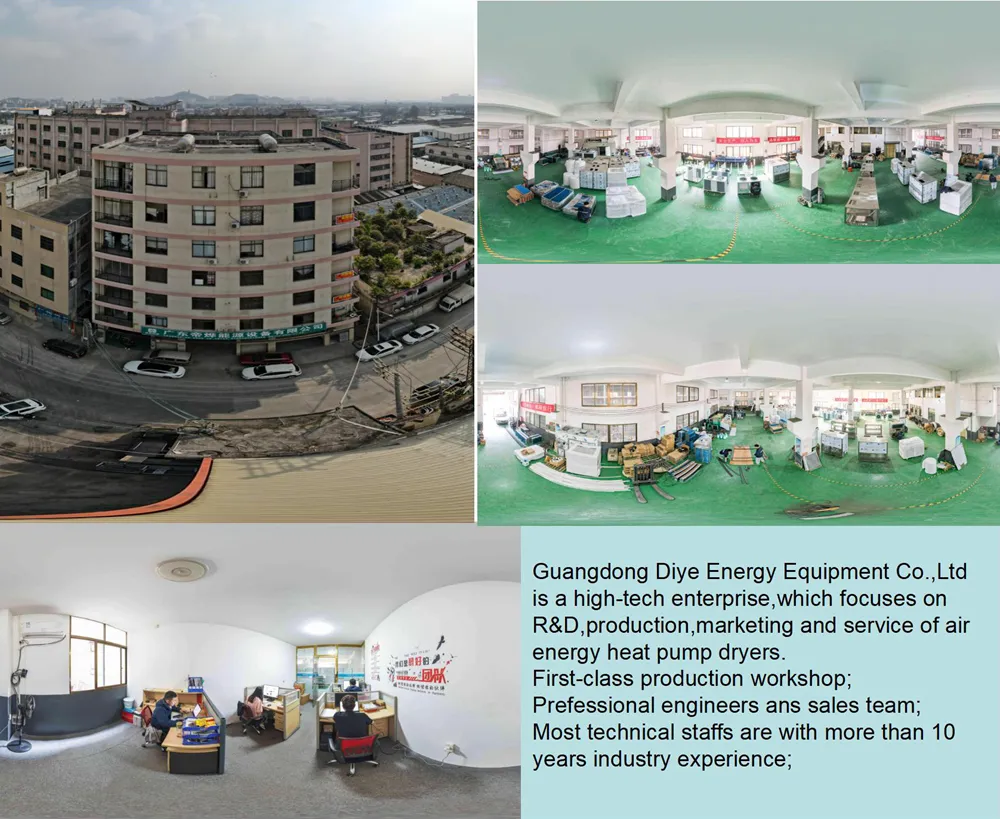

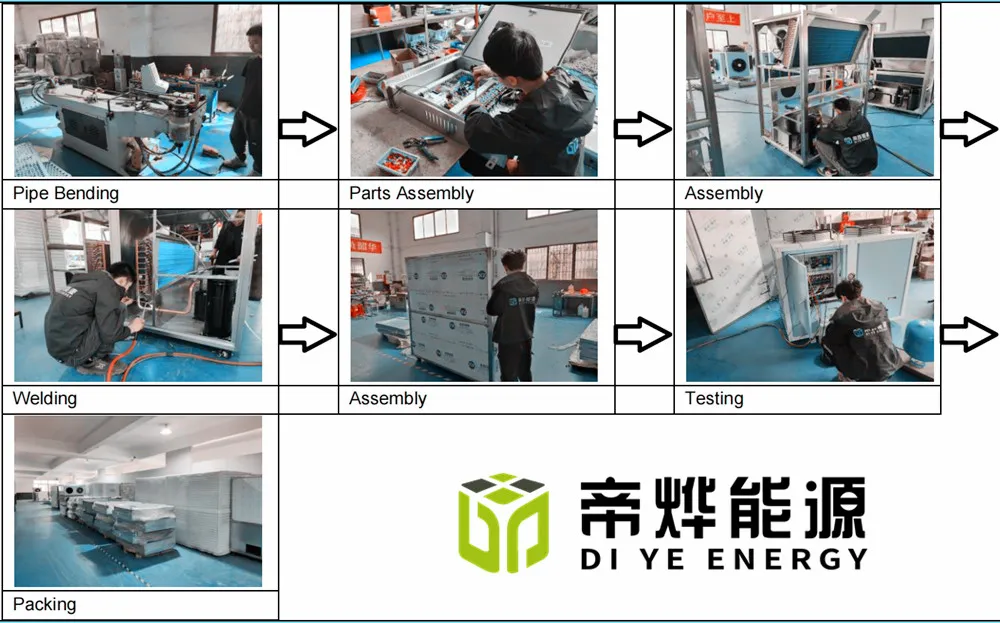

Production & Logistics

📜

Certifications

🛠️

Our Services

A. Order Process: Inquiry → Quotation → Agreement → Order Confirm → Proforma Invoice → Production → Delivery → Installation → Feedback.

B. Technical Support: OEM/ODM availability and full technical support for installation, operation, and maintenance.

C. Warranty: One-year standard warranty with options for extended life-time technical support.

❓

Frequently Asked Questions

1. What is the moisture reduction capability of the machine?

The system can reduce sludge moisture content from 80% down to a range of 10%-30%, achieving up to an 80% total volume reduction.

2. Does the drying process cause air pollution?

No. The equipment uses a closed-loop design where moisture is discharged as condensate water and air is recycled, ensuring no secondary exhaust gas pollution.

3. What are the safety features for low-temperature drying?

The drying temperature is kept below 70ºC, which significantly reduces the risk of dust explosion or the release of toxic volatile components.

4. Can the system be customized for different sludge types?

Yes, we support both OEM and ODM. While the standard wet sludge moisture input is 30%-83%, other moisture contents can be customized to specific industrial needs.

5. What control system is used for operation?

The machines are equipped with a PLC Programmed Controller and a user-friendly Touch Screen for fully automated and continuous operation.
