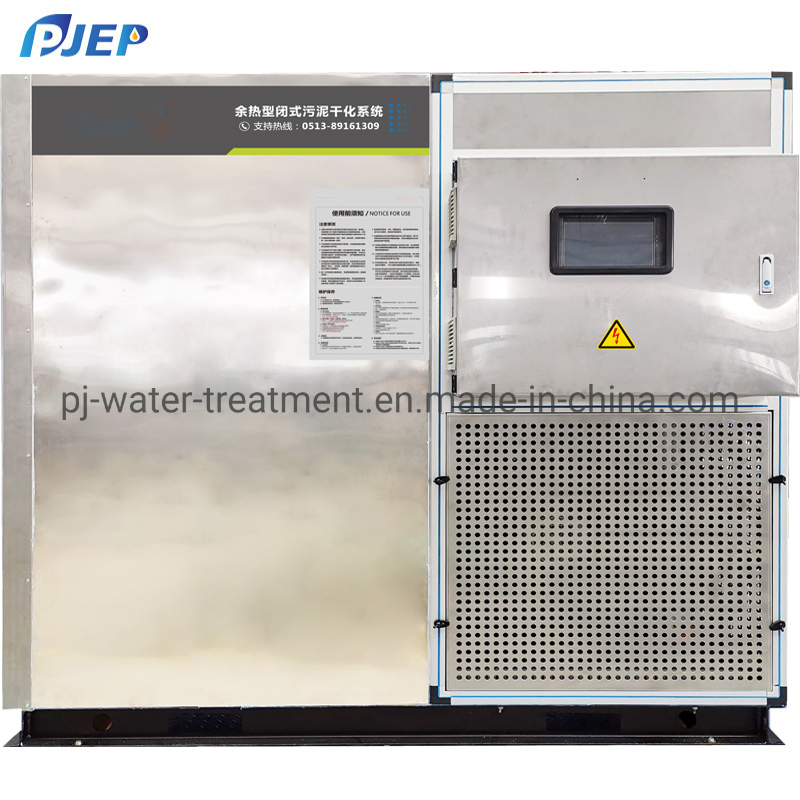

Efficient sludge drying system for industrial and municipal sewage treatment.
Project Site: Sludge Drying Machine Operation
Utilizes existing flue gas, generator waste heat, steam condensate, anaerobic digestion hot water, or solar energy as the primary heat source.
Multi-stage energy treatment provides strong drying capacity, achieving reduction rates of over 80%, breaking traditional technical bottlenecks.
Innovative energy-saving design reduces electricity consumption to as low as 50kw.h for drying one ton of 80% water content wet sludge to 10%.
Fully closed design with no odor discharge. No expensive deodorization system required. Low condensate COD for simple treatment.
Adopts advanced cold and heat balance treatment with no heat loss, ensuring a more perfect work energy efficiency compared to traditional equipment.
Low-temperature fully closed operation ensures safety with no dust risks. Outlet material temperature is below 48°C, allowing direct storage.
Freely set drying time and temperature for precise water content control. Anti-corrosion design ensures a longer service life.
| Model | RC-50IIJ4dX | RC-100IIJ4dX | RC-100IIJ4dX×2 | RC-100IIJ4dX×3 | RC-200IIJ4dX×2 | RC-200IIJ4dX×3 |
| Standard water reduction (kg/24h) | 1200 | 2500 | 5000 | 7500 | 10000 | 15000 |
| Water removal capacity (kg/h) | 50 | 104 | 208 | 312 | 416 | 624 |
| Operation power (kW) | 6 | 7.5 | 15 | 22.5 | 28 | 42 |
| Standard heat supply (kW) | 50 | 100 | 200 | 300 | 400 | 600 |
| Drying temperature (ºC) | 48~65ºC (Return wind) / 68~85ºC (Wind deliver) | |||||
| Electrical source | 380V/3N ~ 50Hz | |||||
| Model (RC-200IIJ4dX) | ×4 | ×5 | ×6 | ×7 | ×8 | ×9 | ×10 |
| Standard water reduction (kg/24h) | 20000 | 25000 | 30000 | 35000 | 40000 | 45000 | 50000 |
| Water removal capacity (kg/h) | 832 | 1040 | 1248 | 1456 | 1664 | 1872 | 2080 |
| Operation power (kW) | 56 | 70 | 84 | 98 | 112 | 126 | 140 |
| Installed power (kW) | 67 | 82 | 97 | 112 | 127 | 142 | 158 |
| Equipment weight (kg) | 16000 | 18000 | 22000 | 25000 | 28000 | 31000 | 34000 |
