Basic Information
Type
Wastewater Treatment Plant
Usage
Industrial, Home, Agriculture, Hospital
Name
Chemical Dosing System
Control Mode
Full Automatic or Self-Automatic
Update Optional
Siemens PLC Remote Control
Operation
24 Hours Automatic Running
Product Description
!

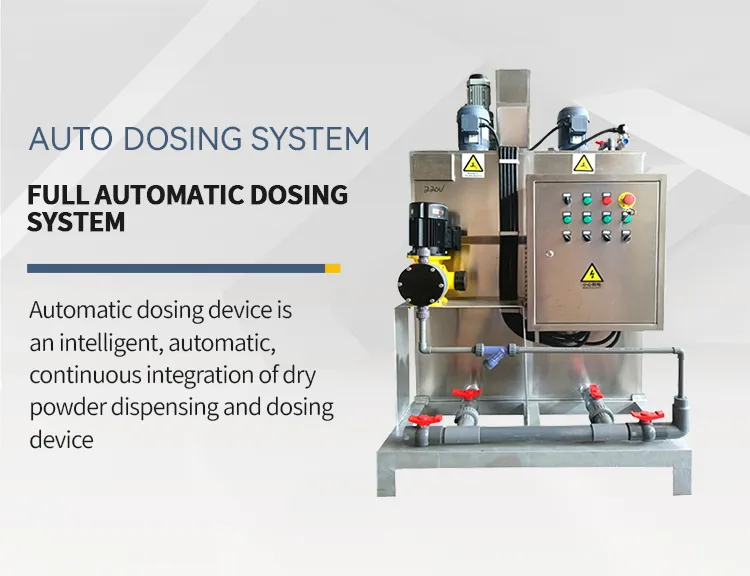

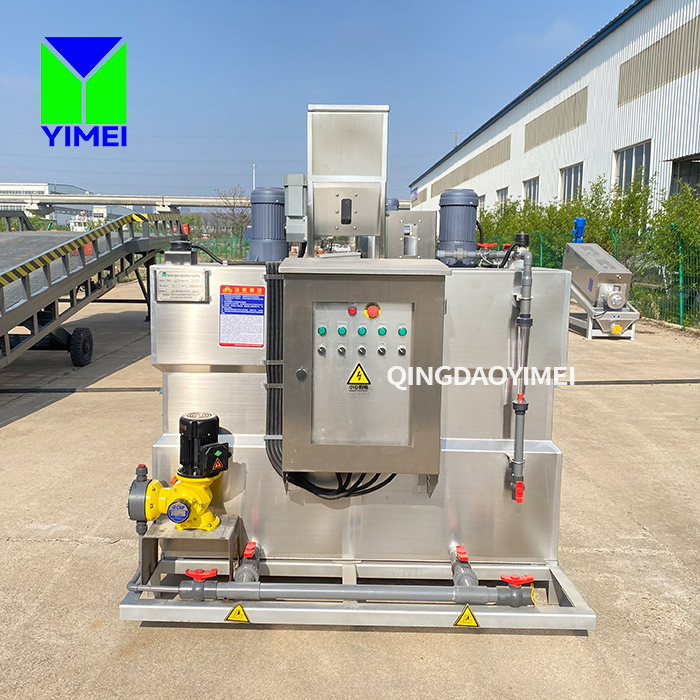

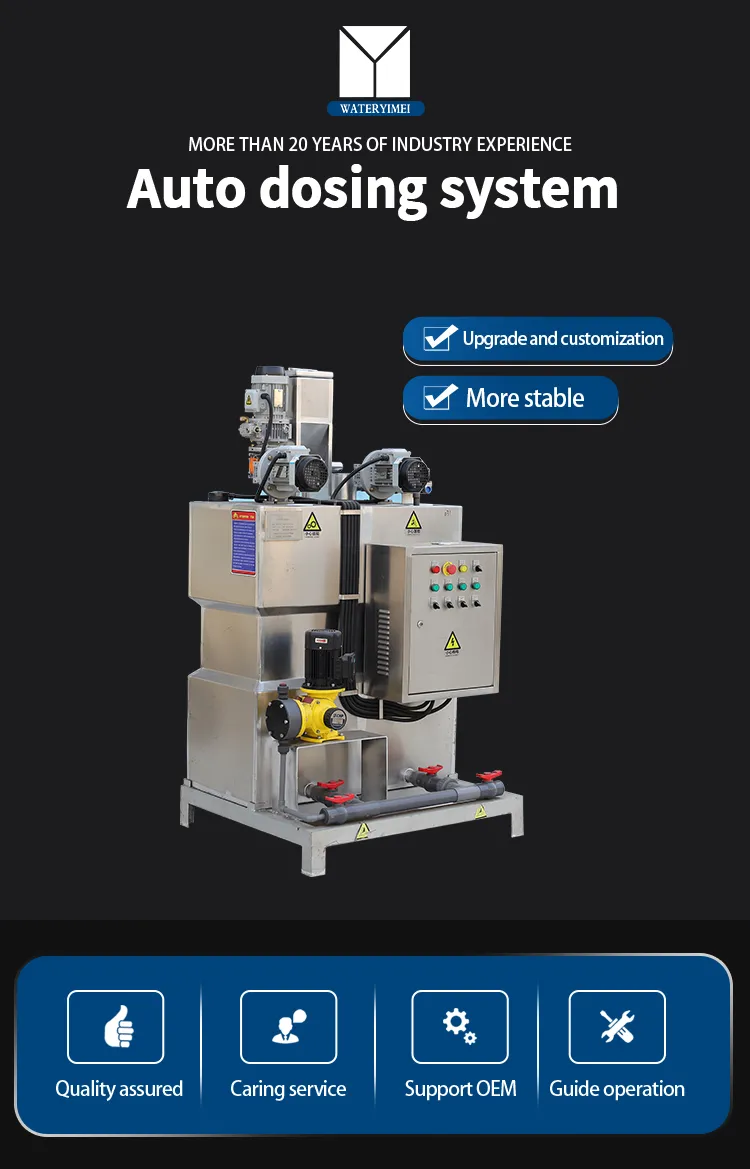

Automatic Dosing System Overview:

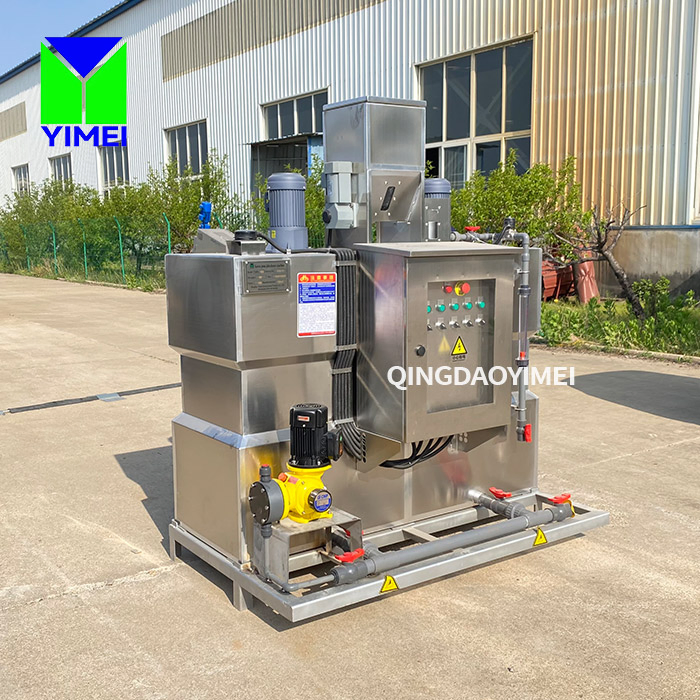

Dosing device is mainly composed of solution tank, stirring tank (with stirrer), metering pump, level gauge, electronic control, pipeline, valve, safety valve, and staircase. Configuration can be customized according to actual requirements.

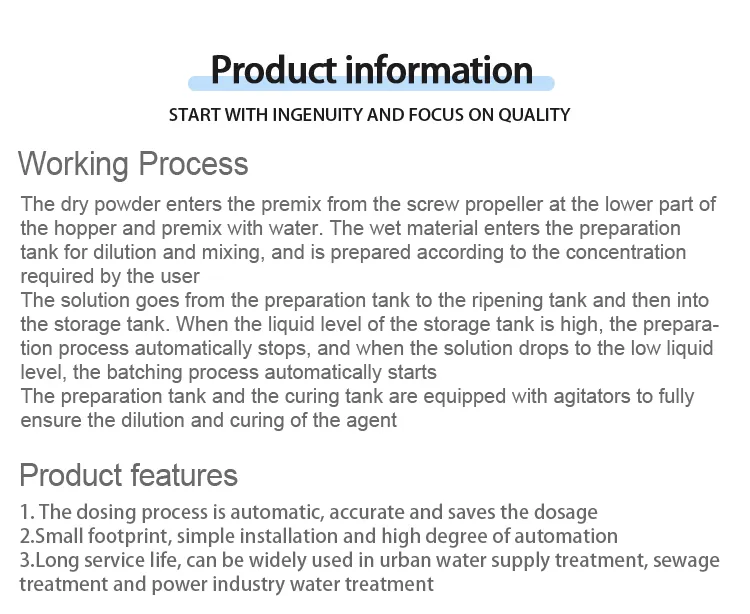

According to required agentia concentration, preparation occurs in the stirring tank. It is injected into the solution tank after stirring well, using a metering pump to deliver the prepared solution to the dosing point or appointed system. The whole set features a compact structure, safety, and simple operation.
Application Scope
In water supply and draining procedures, it doses chemical agentia for coagulation, flocculation, and disinfection. Suitable for: sewage treatment, chemical industry, petroleum, power plants, textile, papermaking, and medical projects.

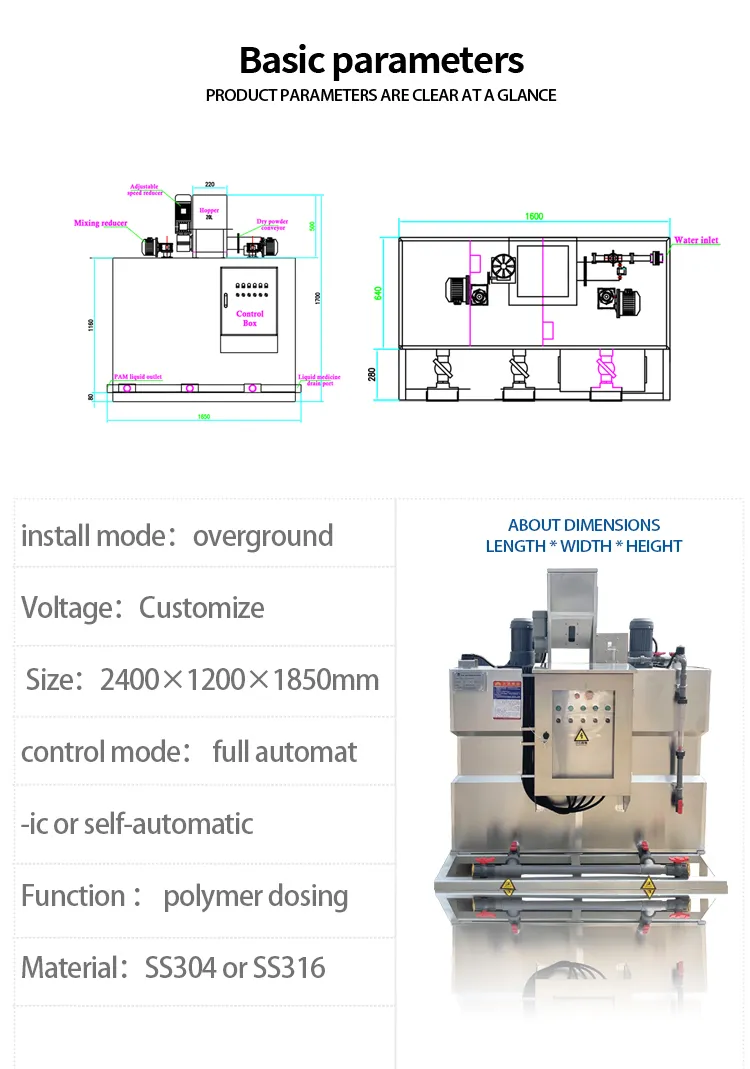

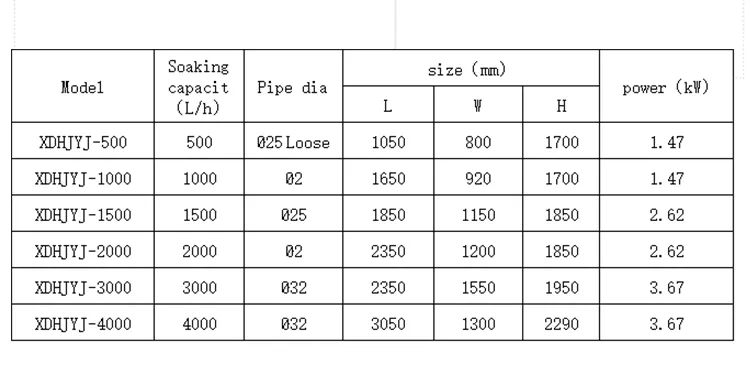

Technical Specifications

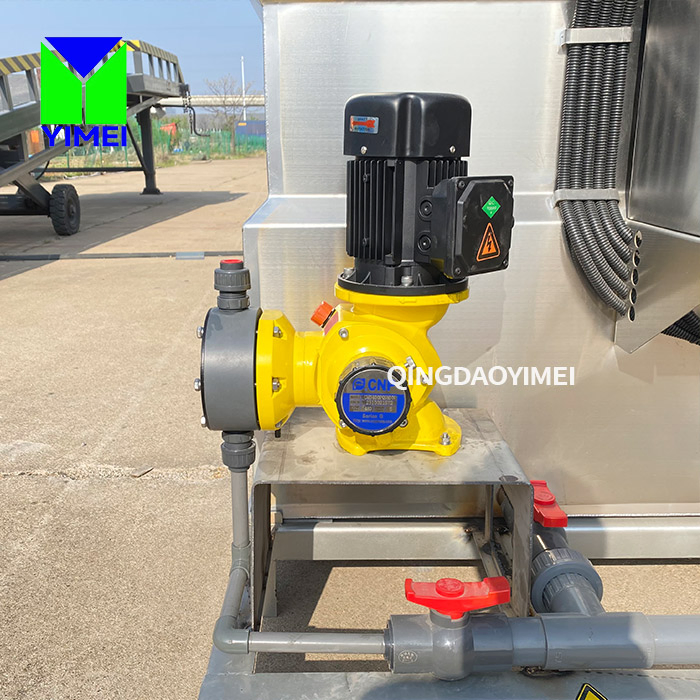

Metering Pump
Mechanical diaphragm, no-leakage; PVC/PTFE/SS316 heads; Flow: 0.5~500L/h; Pressure: 0.2~1 Mpa.

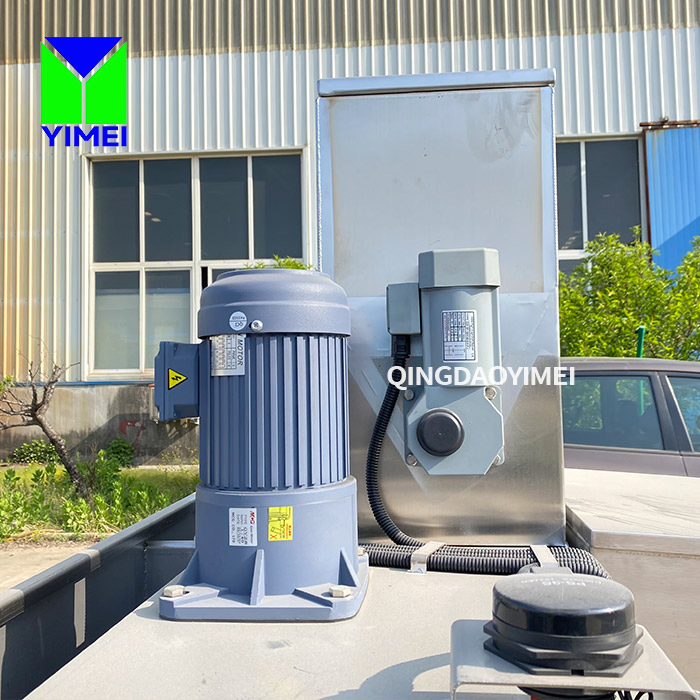

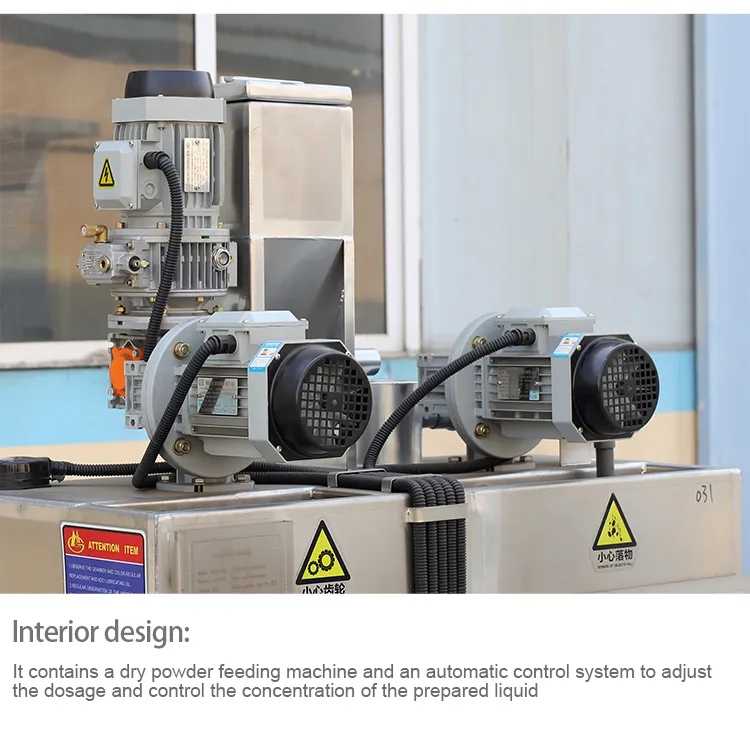

Mixer
Power: 0.18~11kW; Diameter: 0.4~3m; Speed: 60~200rpm. Stainless steel material.

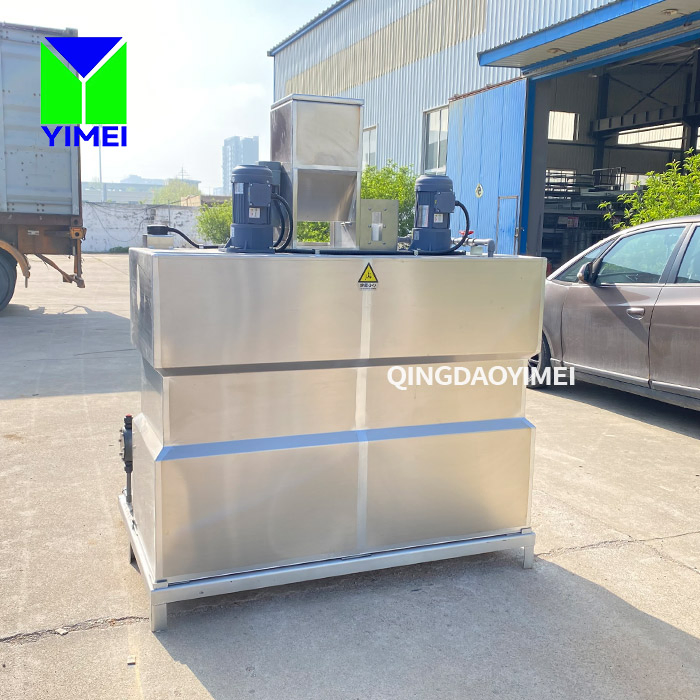

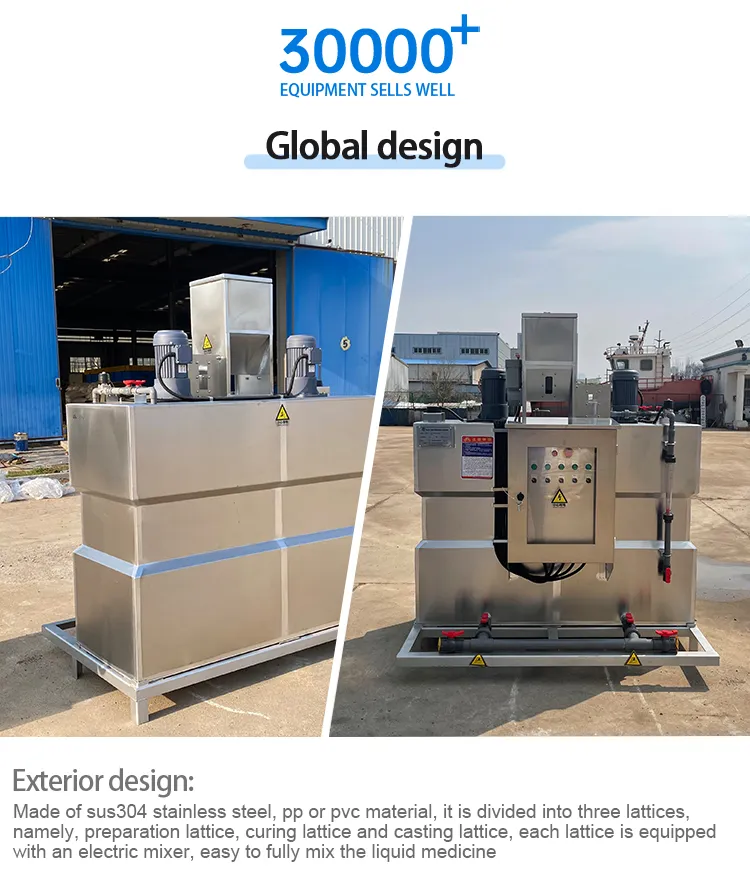

Solution Tank
Material: PE or PVC; Standard Volume: 1000L. Rotomolding one-piece molding.
Our Services
Professional Design: Free targeted programs and products based on actual needs.
Strict Examination: Advanced processing equipment and skilled workforce for high-quality DAF equipment.
After-Sale Service: Specialized personnel for installation guide, commissioning, and maintenance.
Technical Support: Continuous technical assistance throughout the equipment's lifespan.
Frequently Asked Questions
How to select the right product?
You can provide us with your water sources, water quality, flow rate, and available ground area for a detailed recommendation.
What are the accepted payment terms?
TT and L/C are acceptable. Typically, a 30% deposit is required before production, with the 70% balance due before loading via TT.
What is the estimated delivery time?
It depends on order quantities. Generally, the delivery time is within 4 to 6 weeks.
How is the equipment protected against corrosion?
We use world-famous protective coatings and follow strict standardized painting processes to ensure long-term durability.
How is the equipment manufactured?
Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting, and precision bending.
How is installation handled at the destination?
We provide detailed illustrations. If necessary, technicians can be dispatched to assist with installation and commissioning.
